4U 19" Rackmount system Intel 14th/13th Gen IMB-X1712

SKU:
RN04IATX-992613-K
  • Processor : Intel Core
  • Max geheugen : 128GB
4U 19" Rackmount system Intel 14th/13th Gen IMB-X1712
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads

Rackmount Systems - provided by Arcobel, customized for your application

Looking for reliable rackmount solutions that truly fit your industrial application?
In demanding industrial environments, standard hardware often falls short. You need a system that’s not only powerful and reliable but also perfectly tailored to your specific application. Think 24/7 operational reliability, flexible expansion options, and long-term availability of identical configurations. Custom Rackmounts are the solution and at Arcobel Embedded Solutions, we take it one step further.

Fully customized 19 inch Rackmounts
At Arcobel, we design and build 19 inch Rackmounts specifically tailored to industrial environments. Each system is assembled and tested in-house, using the latest technologies and offering maximum flexibility. From hardware to a custom embedded Windows image, we deliver a complete solution that combines performance, security, and stability. Our Rackmounts are available in compact 1U to 4U formats, with depths starting at just 40 cm. Perfect for installations where space is limited, but performance and expandability are critical.

24/7 reliability and long-term performance
Our Custom Rackmounts are built for continuous operation in harsh environments. Using high-grade industrial components, we ensure minimal downtime and long-lasting performance. We also offer identical configurations for up to 8 years, preventing redesigns and compatibility issues in long-term projects.

Customized configuration
The configuration shown here serves as a foundation for your custom solution. You can tailor the rackmount system according to your individual requirements and preferences. We are here to advise and support you in making the right choice.

Configuration Opions
Depending on your specifications, the Rackmount system can be equipped with a variety of different components.

CPU - Intel Core 14th/13th Gen
The motherboard supports Intel Core 14th/13th Gen, supporting 65W and 35W TDP models. The performance range is wide and can be adjusted to your applications needs. From Intel Core i3 to Intel Core i7, up to 20 Cores and 5.4GHz.

RAM - DDR4 and DDR5
New motherboards support either DDR4 or DDR5 memory and offer a total capacity of up to 192GB. We use industrial-grade memory from Innodisk and other trusted brands to ensure consistent quality.

SSD - Operating System and Data
Your operating system and data are better protected on industrial storage devices without compromising performance. Security features such as encryption, protection against power surges, and sudden power loss help safeguard your data and applications. Modern SSDs offer capacities of up to 8TB and typically use 3D TLC chips.

Operating System
We support Microsoft Windows 11 IoT Enterprise LTSC and provide assistance with the implementation and integration of your custom images. Upon request, we can install your operating system before delivery to ensure a fast and efficient deployment. Linux is also available upon consultation with our technical team.
Specificaties
  • Processor
    ProcessorIntel Core
    Processor serieRaptor Lake
    Socket typeLGA1700
    Aantal socketsSingle
    BasisfrequentieIntel Core i7-14700: max. 5.4GHz
    Aantal cores20
    TDP65W
    chipsetW680
  • Geheugen
    GeheugentypeDDR4
    Geheugenslots4
    Max geheugen128GB
  • Video
    AansluitingenVGA
    1x VGA, Max resolution up to 1920 x 1200@60Hz

    DisplayPort
    1x DisplayPort 1.4a, DP++, Max resolution up to 4096x2160@60Hz

    HDMI
    1x HDMI 2.0b, Max resolution up to 4096x2160@60Hz
    ChipsetIntel® UHD Graphics
  • Belangrijkste eigenschappen
    KenmerkenFeatures

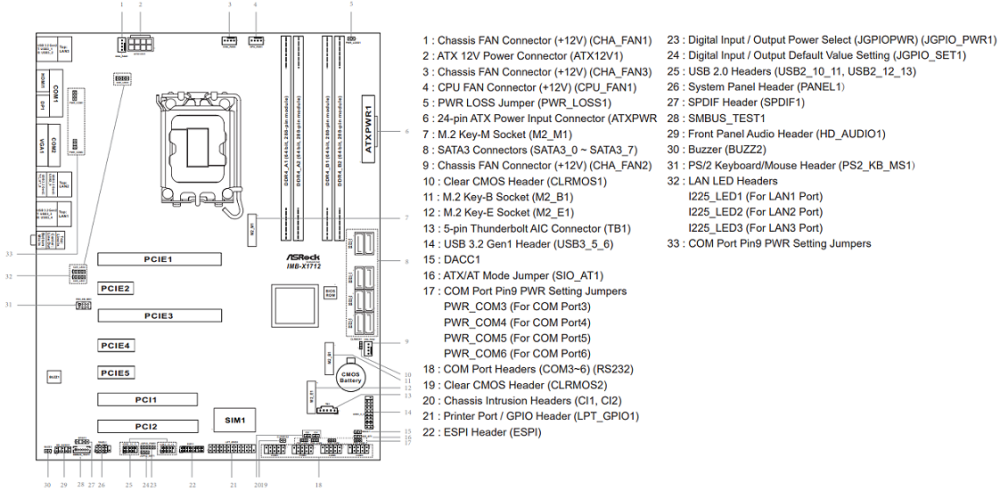

    • Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
    • 4x 288-pin ECC/non-ECC Long-DIMM DDR4 3200 MHz , up to 128GB (32GB per DIMM)
    • 1x PCIe x16 (Gen4), 1 x PCIe x8 (Gen4), 2 x PCIe x4 (Gen4), 1 x PCIe x4 (Gen3), 2 x PCI
    • 1x USB 3.2 Gen2x2 Type C, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0
    • 1x M.2 Key B, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 8 x SATA3
    • 3x Intel 2.5 Gigabit LAN
    • Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA
    • TPM 2.0 onboard IC
    • Supports Intel® vPro, VMD RAID 0/1/5/10
    • ATX PWR (8+24 Pin)
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsPCI-Express
    2x PCIe Gen4 Slots (PCIE1/PCIE3:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE3)) (PCIE1: Support riser card x8/x8)
    2x PCIe x4 (Gen4)
    1x PCIe x4 (Gen3)

    PCI
    2x PCI

    M.2
    1x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
    1x M.2 (Key B, 3042/3052) with PCIe x1, USB3.2 Gen1, USB 2.0 and SIM for 4G/5G

    SIM Slot
    1x SIM socket connected to M.2 Key B
  • Poorten & Interfaces
    Watchdog timer256 segments, 0,1,2…255sec
    LAN poorten3
    Seriele poorten6
    USB 2.0 poorten4
    USB 3.x poorten8
    Audio interface1x Realtek ALC897, High Definition Audio. Line-In / Line-Out / Mic-In

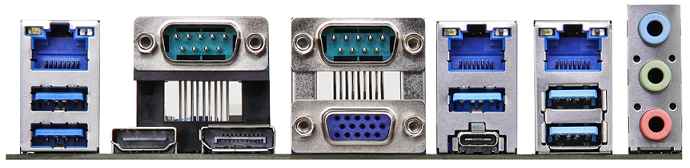

    Externe I/OEthernet Ports
    1x RJ-45 - Intel® I225LM with 10/100/1000/2500 Mbps, supports vPro
    1x RJ-45 - Intel® I225LM/I225V with 10/100/1000/2500 Mbps
    1x RJ-45 - Intel® I225LM/I225V with 10/100/1000/2500 Mbps

    USB
    5x USB 3.2 Gen2
    1x USB 3.2 Gen2x2 (Type C, 5V/3A)

    Serial
    2x RS-232/422/485

    Audio
    1x Realtek ALC897, High Definition Audio. Line-In / Line-Out / Mic-In
    Interne I/OUSB
    2x USB 3.2 Gen1 (1 x USB 3.2 header)
    4x USB 2.0 (2 x 2.54 pitch header)

    Serial
    4x RS-232

    Parallel
    1x Parallel (shared with GPIO)

    GPIO
    8x GPI, 8 x GPO (shared with LPT header)

    PS2
    1x PS2 header

    Thunderbolt
    1x (only support by PCIE4)
  • Opslag
    RAID0, 1, 5, 10
    Opslag interfaceM.2
    1x M.2 (Key M, up to 25110) with PCIe Gen4 x4 for SSD

    SATA
    8x SATA3 (6Gb/s); Intel® VMD RAID 0/1/5/10
    **supported by identical interface (PCIe or SATA)
    PCIe interface: M.2 Key B + M.2 Key M
    SATA interface: SATA port
  • Mechanische specificaties
    Type behuizingRack mount
    Hoogte4U
    Afmetingen483mm (W) x 177mm (H) x 510mm (D)
  • Product eigenschappen
    Gewicht~18kg
  • Electrische specificaties
    Input range90-264V AC
  • Generieke data
    MarktsegmentAutomation
