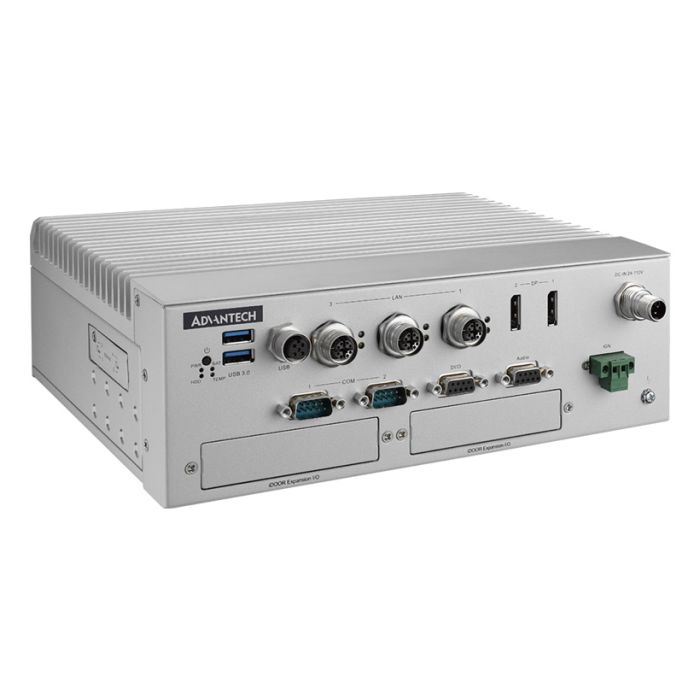

6600HE,8G,2DP,3LAN(2/3BP),2COM,4DIO,24-110Vdc

SKU:

ITA-580-W0A1

SKU : ITA-580-W0A1
Processor : Intel Core
Max geheugen : 32GB
Operating Temperatuur : -40°C/+70°C

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Processor

Processor Intel Core
Processor serie Tiger Lake
Socket type BGA1787
Basisfrequentie 2.60GHz
Aantal cores 2
TDP 35W
chipset RM590E
Geheugen

Geheugenslots 1
Max geheugen 32GB

Video

Aansluitingen	DisplayPort 2x DP port (max resolution up to 4096 x 2304 at 60 Hz)
Chipset	Intel® UHD Graphics for 11th Gen Intel® Processors

Belangrijkste eigenschappen

Kenmerken

• 11th Gen Intel ® Core™ H-Series platform with RM590E
• SuperCap-based power backup module for power failure
• Featured Time-Sensitive Network technology
• Virtualization ability for multi tasks acceptable
• Support advanced 5G and Wi-Fi 6 wireless connectivity
• LAN bypass for redundant connectivity to communicate with other devices
• Wide range 24 - 110Vdc power input, compliant with EN 50155
• Support variety of communication modules by iDoor technology
• No RED certification

Uitbreidingsmogelijkheden

Uitbreiding slots	Mini PCIe 2x Mini PCIe Socket (Full size) m.2 2x M.2 3042/3052 B+M Key 1x M.2 2230 A+E Key PCIe 1x PCIex16 thru. MCIO connector SIM 4 x micro SIM slot, each of M.2 B+M key slot supports dual micro SIM cards

Poorten & Interfaces

LAN poorten	3
Seriele poorten	2
USB 2.0 poorten	1
USB 3.x poorten	4
Audio interface	1x Line-out 1x Mic-in
Externe I/O	Lan 3x M12 X-Coded(F), LAN#2/3 with bypass as optional Serial 2x DB9, RS-232/422/485 with 2KV Isolation, supports auto-flow control USB 4x USB 3.2, Type-A connectors 1x USB 2.0. M12 A-Coded (F) Digital I/O 1 x DB9, 4-bit DI/ 4-bit DO with 2KV Isolation

Opslag

RAID	0, 1, 5, 10
Opslag interface	SATA Max to 4 x 2.5" 7mm SSD, support RAID 0/1/5/10 (SSD tray is optional) mSATA 1 x mSATA slot

Mechanische specificaties

Type behuizing IP40
Afmetingen 260 x 88 x 197.2 mm
Montage Desktop, wall mount
Product eigenschappen

Gewicht 4.5Kg

Electrische specificaties

Input range	24 - 110VDC power input, compliant with EN 50155
Ignition control	enable range from 10 to 30VDC with 2.5KV isolation

Omgeving specificatie

Opslag temperatuur	-40/+85 °C
Operating Temperatuur	-40°C/+70°C
Relatieve luchtvochtigheid	5% ~ 95% @ 40 °C (Non-Condensing)

Certificeringen

certificaten EMC
CE/FCC Class A, CCC

Safety
UL, CB, CCC, BSMI

Downloads

datasheet	ITA-580_DS(102324)20241023162030.pdf
