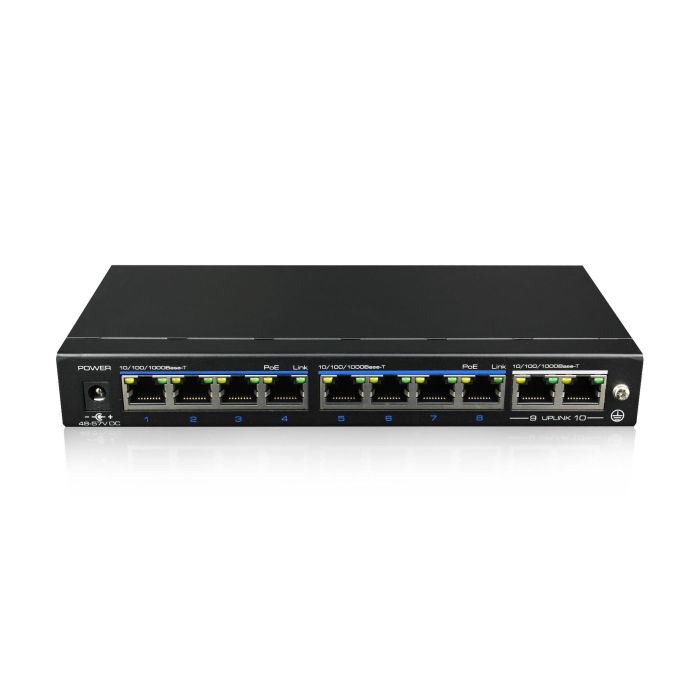

8 Port full gigabit PoE ethernet switch

SKU:

UTP3-GSW0802-TP120

Fabrikant:

Utepo

Fabrikant : Utepo
Apparaat : Unmanaged Switch

Lokaal op voorraad

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

• Main Function: Provide 8*10/100/1000Base-T Ethernet ports(PoE) , 2* 10/100/1000BASE-T Ethernet ports
• Compliance with standards: IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3X、IEEE802.3af/at
• PoE Power Supply: With 8x gigabit PoE RJ45 ports, each port supports max. 30W PoE output, whole machine reaches 120W PoE power output
• One-key CCTV: Quickly achieve isolation among downlink ports vis dial switch, effectively restrain network storm, improve network feature
• Protection: Support 6KV surge immunity, EFT testing standard
• Operation Environment: Support -10℃~45℃ wide-temperature
• Operation: Plug&play, convenient to use, support desktop, wall-mounted installations

Poorten & Interfaces

Apparaat	Unmanaged Switch
LAN poorten	8
Switch Architecture	• Switch Capacity: 20Gbps
Overdrachtsnelheid	• Downstream Ports: 8* 10/100/1000Base-T (PoE) • Uplink Ports: 2x 10/100/1000Base-T Ethernet Ports
PoE beschikbaar	Ja
POE vermogen	• PoE Standard: 802.3af/at(PSE) • PoE Power Output: 54V DC , 30 watts max • PoE Budge: 120 watts max

Mechanische specificaties

Afmetingen 200mm (l) ×101.8mm (w) ×27mm (h)
Product eigenschappen

Gewicht 500g
Omgeving specificatie

Opslag temperatuur • -40℃~85℃
Relatieve luchtvochtigheid • Humidity (Non-condensing) 5%-95%
Generieke data

Fabrikant Utepo
Garantie 24 Maanden

Downloads

Handleiding	User%20Manual%20UTP3-GSW0802-TP120%20V1.0.pdf
datasheet	UTP3-GSW0802-TP120_Datasheet_VER2.0.pdf

€ 208,12 € 172,00
