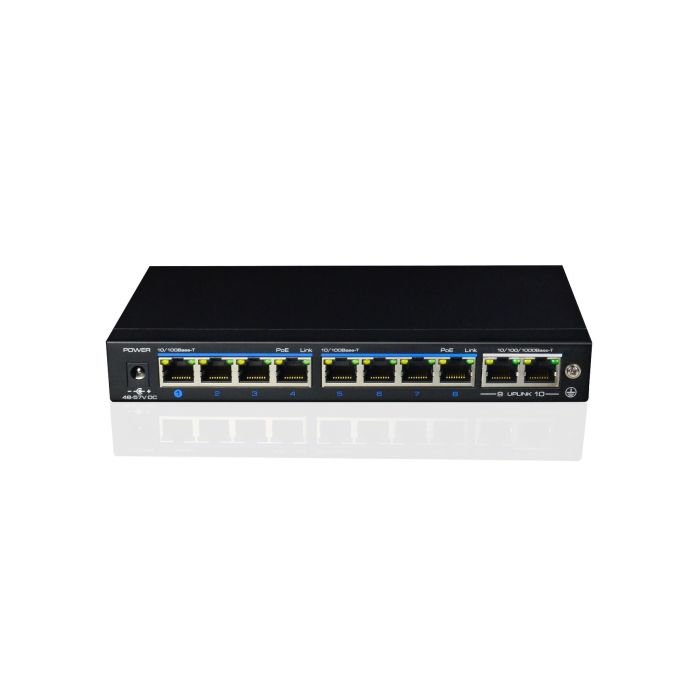

8 Port PoE switch met 2x GbE uplinks

SKU:
UTP3-SW08-TP120-A1
Fabrikant:
Utepo
  • Fabrikant : Utepo
  • Apparaat : Unmanaged Switch
Lokaal op voorraad
Details
Specificaties
Downloads
Specificaties
  • Belangrijkste eigenschappen
    Kenmerken• Main Ports: 8 x downlink Fast PoE Ethernet ports, 2X Gigabit uplink Ethernet ports
    • Special Function One Key CCTV Mode: Support VLAN and restrain network storm;1~8 downlink ports can only communicate with uplink ports; the further transmission distance up to 250m in CCTV mode with the transmission speed rate 10Mbps;
    • Standard:IEEE802.3, IEEE802.3u, IEEE802.3 af, IEEE802.3at
    • Protection:Superior lightning protection(6KV), ESD protection and anti-interference ability
    • Structure: stable and delicate, easy to install
    • Operation:plug and play, no any settings needed
  • Poorten & Interfaces
    ApparaatUnmanaged Switch
    LAN poorten7
    Switch Architecture• Switch fabric 5.6Gbps
    Overdrachtsnelheid• Downlink Ports: 8*10/100Base-TX (PoE)
    • Uplink Ports: 2*10/100/1000Base-T
    PoE beschikbaarJa
    POE vermogen• PoE Standard: IEEE 802.3af/at(PSE)
    • PoE Power Output: 48~57V DC , single port 30 watts max
    • PoE Budge: 120 watts max
  • Mechanische specificaties
    Afmetingen200mm (l) ×101.8mm (w) ×27mm (h)
  • Product eigenschappen
    Gewicht500g
  • Omgeving specificatie
    Opslag temperatuur• -40℃~85℃
    Operating Temperatuur-10°C/+55°C
    Relatieve luchtvochtigheid• Humidity(Non-condensing) 5%-95%
  • Generieke data
    FabrikantUtepo
    Garantie24 Maanden
