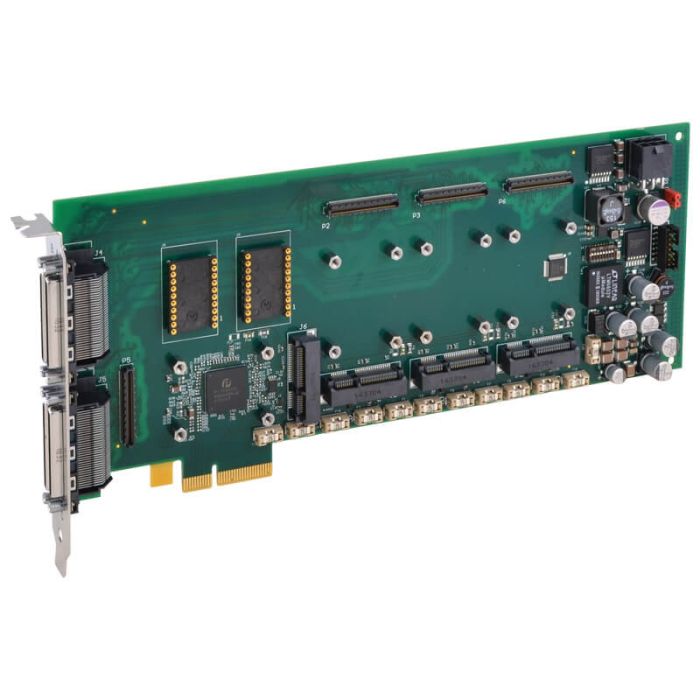

AcroPack Carrier for AcroPack/mPCIe modules, 4x Slots, 3/4

SKU:

APCE7043E-LF

Fabrikant:

Acromag

Bus Type : PCIe
Type Opsteekkaart : Mini PCIe

AcroPack Carrier for AcroPack/mPCIe modules, 4x Slots, 3/4

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Features
• Four AcroPack or mini-PCIe module slots support any combination of I/O functions
• 3/4-length PCIe card (10 inches)
• PCI Express 2.1 compliant, x4 interface
• Plug-and-play carrier configuration and interrupt support
• Fused +1.5V, +3.3V, +5V, +12V, and -12V DC power is provided. A fuse is present on each supply line serving each AcroPack module.
• Front panel 68-pin VHDC1 CHAMP 0.8 connectors for field I/O signals
• Optional isolated power supplies on two slots. Support for AcroPacks requiring ±12 V isolated power.
• Extended temperature range
• DIP switch card identification
• Standard 14-pin Xilinx JTAG programming header
• Software development tools for VxWorks®, Linux®, and Windows® environments.

Poorten & Interfaces

Externe I/O CHAMP
4x 68-pin CHAMP cable connections.Pin assignments are defined by the installed AcroPack module.
Mechanische specificaties

Bus Type PCIe
Afmetingen 253.99mm (L) x 111.12mm (W)
Type Opsteekkaart Mini PCIe
Omgeving specificatie

Opslag temperatuur -55°C/+125°C
Operating Temperatuur -40°C/+85°C
Relatieve luchtvochtigheid 5% to 95% non-condensing
Generieke data

Fabrikant Acromag
Garantie 24 Maanden

Downloads

datasheet	APCe7043-PCI-Express-Carrier-Card-For-AcroPack-Modules.pdf
