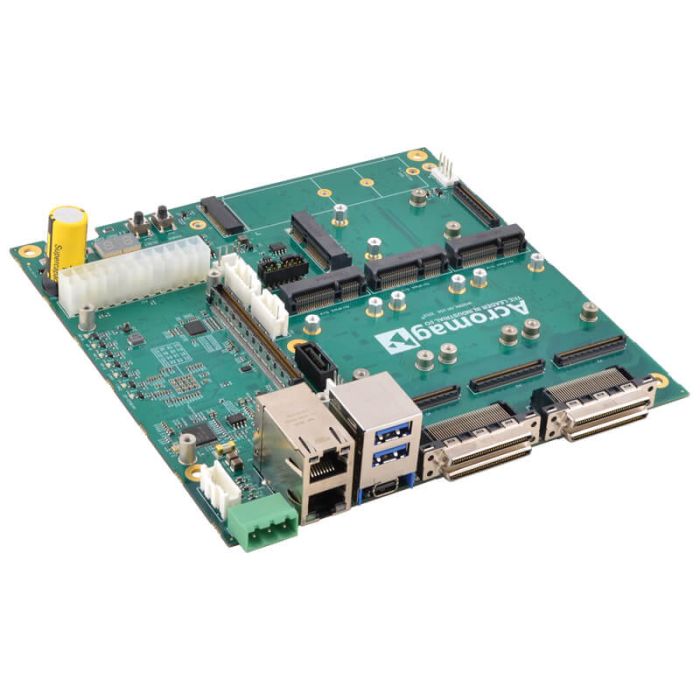

AcroPack mITX Board with COM Exp Type 10 E3950-4G CPU
SKU:
ACEX4041-2000
Fabrikant:
Acromag
- Bus Type : ComExpress Baseboard
- Type Opsteekkaart : Mini PCIe
AcroPack mITX Board with COM Exp Type 10 E3950-4G CPU
Details
Specificaties
Downloads
Processor Interface
Compatibility
Provides an electrical and mechanical interface for an industry standard COM Express Type 10 Mini (55mm x 84mm) CPU module.
CPU module must have four PCIe lanes configured as an x4 port for optimal performance.
Interface
COM Express module provides CPU, memory, PCIe bus, SATA, USB, serial communication, graphics, and other computing functions.
PCIe Switch
9-port 12-lane PCIe Gen 2 switch expands the single host PCIe x4 port to 6 independent x1 ports (one for each AcroPack site and one for each Ethernet controller).
Configuration
CPU
Intel® Atom™ E3950 quad-core, 1x4 PCIe configuration, 1.6/2.0GHz (Turbo) , 4GB RAM, 12W.
Compatibility
Provides an electrical and mechanical interface for an industry standard COM Express Type 10 Mini (55mm x 84mm) CPU module.
CPU module must have four PCIe lanes configured as an x4 port for optimal performance.
Interface
COM Express module provides CPU, memory, PCIe bus, SATA, USB, serial communication, graphics, and other computing functions.
PCIe Switch
9-port 12-lane PCIe Gen 2 switch expands the single host PCIe x4 port to 6 independent x1 ports (one for each AcroPack site and one for each Ethernet controller).
Configuration
CPU
Intel® Atom™ E3950 quad-core, 1x4 PCIe configuration, 1.6/2.0GHz (Turbo) , 4GB RAM, 12W.
|
|
|
