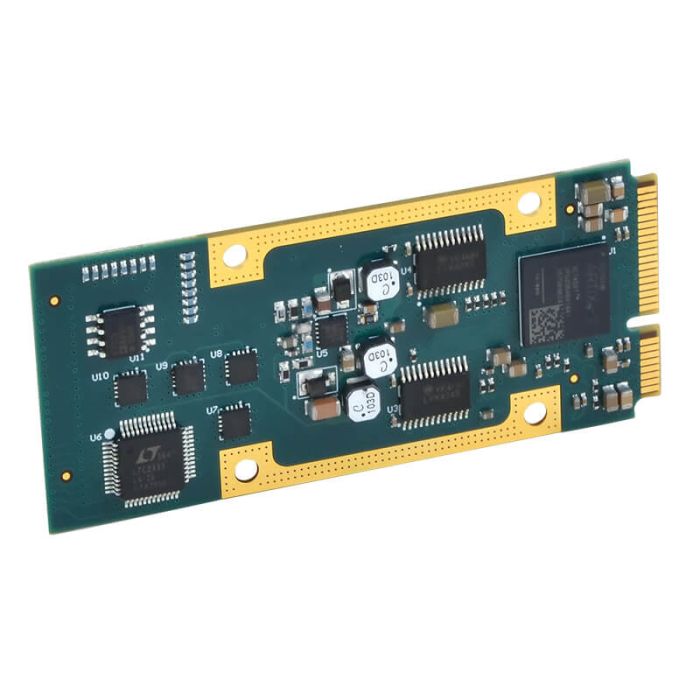

AcroPack Multi-function I/O module with 12-bit DAC

SKU:

AP731E-LF

Fabrikant:

Acromag

Aantal poorten : 8+4+16
Type I/O : Analog IO & Digital IO & Counter
Bus Type : PCIe
Type Opsteekkaart : IndustryPack

AcroPack Multi-function I/O module with 12-bit DAC

Note: Temperatures above 70°C requires an AcroPack heatsink conduction-cool kit, model AP-CC-01.

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Analog Inputs
• Eight differential input channels (±10.24V, ±10.0V, ±5.12V, ±5.0V, 0 to 10.24V, 0 to 10.0V, 0 to 5.12V ranges)
• 16-bit ADC with sample-and-hold and reference
• 1.264μS conversion time (791KHz rate)
• 1026 sample FIFO buffer
• Programmable FIFO threshold conditions for interrupts, DMA transfers, and flags
• User-programmable channel conversion sequence and timing
• External trigger input or output
• Factory calibration constants stored in on-board flash memory for error correction

Analog Outputs
• Four analog output channels(±3V, ±5V, ±10V, -2.5 to +7.5V, 0-5V, and 0-10V ranges)
• Individual 12 or 16-bit DACs per channel with 7.5μS settling time
• Flexible operating mode, trigger, and memory allocation
• Configurable for direct access, single burst, continuous, or streaming (FIFO) output
• Reliable software calibration with coefficients stored on-board
• FIFO for waveform generation
• Interrupt on user-programmable FIFO threshold
• Shared 64K x 16-bit sample memoryDigital I/O
• 16 bidirectional input/output channels(direction configured in 8-channel groups)
• TTL-compatible thresholds
• Programmable change-of-state/level interrupts
• Failsafe power-up and system reset

Counter/Timers
• Multi-function 32-bit counter/timer
– Quadrature Position measurement
– Pulse Width modulation
– Watchdog timer
– Event counter
– Frequency measurement
– Pulse-width or period measurement
• One-shot and repetitive one-shot pulse waveform generation
• Programmable interface polarity
• Internal or external triggering
• CMOS compatible thresholds

General
• DMA transfer support to move data between module memory and PCIe bus
• Software development tools for VxWorks®, Linux®, and Windows® environments

Poorten & Interfaces

Externe I/O	Analog Input 8x differential input channels (±10.24V, ±10.0V, ±5.12V, ±5.0V, 0 to 10.24V, 0 to 10.0V, 0 to 5.12V ranges) Analog Output 4x analog output channels(±3V, ±5V, ±10V, -2.5 to +7.5V, 0-5V, and 0-10V ranges) Digital IO 16x bidirectional input/output channels(direction configured in 8-channel groups) Counter / Timer Multi-function 32-bit counter/timer
Aantal poorten	8+4+16
Type I/O	Analog IO & Digital IO & Counter

Mechanische specificaties

Bus Type PCIe
Afmetingen 70.0mm (L) x 30.0mm (W)
Type Opsteekkaart IndustryPack
Omgeving specificatie

Opslag temperatuur -55°C/+100°C
Operating Temperatuur -40°C/+85°C
Relatieve luchtvochtigheid 5% to 95% non-condensing

Certificeringen

standaarden	Operating Vibration Designed to comply with IEC 60068-2-64: 10-500Hz, 5G-rms, 2 hours/axis. Operating Shock Designed to comply with IEC 60068-2-27: 30G, 11ms half sine, 50G, 3mS half sine, 18 shocks at 6 orientations for both test levels. EMC Directive Conforms to EMC Directive 2004/108/EC

Software support

Operating systeem Windows, Linux, VxWorks
Generieke data

Fabrikant Acromag
Garantie 24 Maanden

Downloads

datasheet	AP730_AcroPack-Multi-Function-IO.pdf

Prijs op aanvraag
