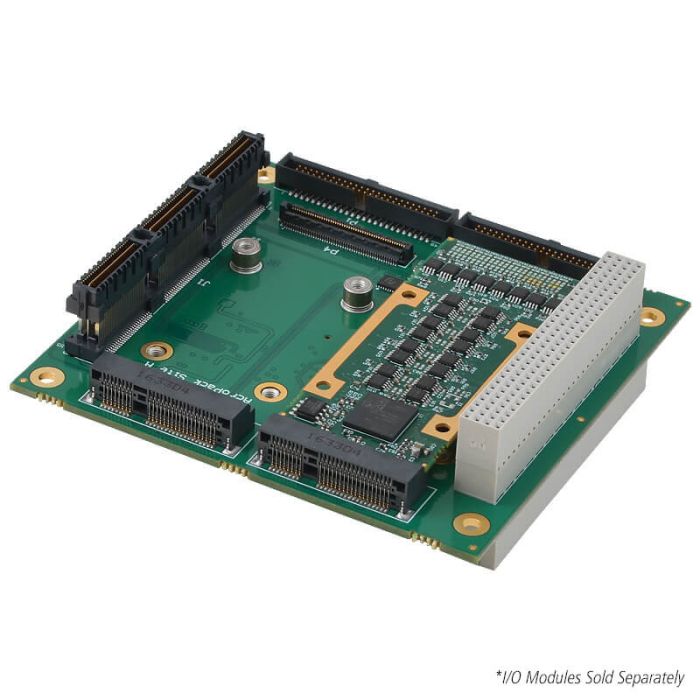

AcroPack PCIe/104 Carrier for AcroPack/mPCIe modules

SKU:

APX4022

Fabrikant:

Acromag

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Features
• Two AcroPack or mini-PCIe module slots support any combination of I/O functions
• PCI Express compliant
• Plug-and-play carrier configuration and interrupt support
• Fused +1.5V, +3.3V, +5V, +12V, and -12V DC power is provided. A fuse is present on each supply line serving each AcroPack module.
• Front panel 50-pin connectors for field i/O signals
• Extended temperature range
• DIP switch card identification
• Standard 14-pin Xilinx JTAG programming header
• Software development tools for VxWorks®, Linux®, and Windows® environments.

Omgeving specificatie

Opslag temperatuur -55°C/+85°C
Operating Temperatuur -40°C/+85°C
Relatieve luchtvochtigheid 95% at 60°C non-condensing

Certificeringen

standaarden	Shock Operating IEC 60068-2-27: 30G, 11ms half sine, 50G, 3mS half, 18 shocks at 6 orientations. Vibration Operating Sinusoidal: IEC 60068-2-6: 10-500Hz, 5G, 2 Hours/axis. Random: IEC 60068-2-64: 10-500Hz, 5G-rms, 2 Hours/axis.

Software support

Operating systeem Windows, Linux, VxWorks
Generieke data

Fabrikant Acromag
Garantie 24 Maanden

Downloads

datasheet	Acromag-APX4020-Series-PCI-Express-Carrier-Cards-for-AcroPack-Modules-1.pdf

Prijs op aanvraag
