Advanced LTE terminal with GNSS LTE/3G/GSM connectivity

SKU:
FMC125
Fabrikant:
Teltonika
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads

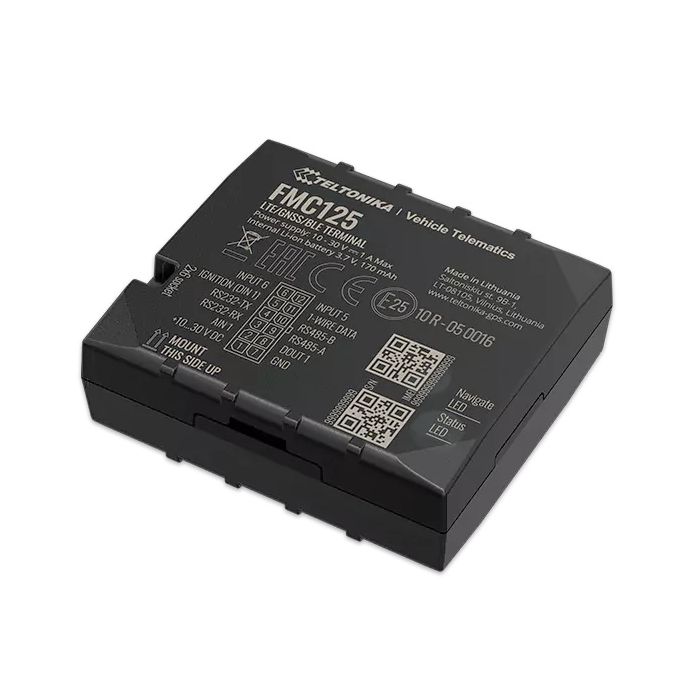

FMC125

Newly introduced FMC125 is a small ADVANCED series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS/Bluetooth and LTE modules, internal GNSS and LTE antennas.

FMC125 developed on the existing Teltonika FMB platform, therefore it keeps all of the functionalities from FMB125 and builds on top of them with its industry-leading connectivity coverage.

Device is designed for communication with various third party RS232 or RS485 devices, like digital fuel sensors (LLS), Garmin navigation device, RFID reader and much more. It is also excellent for refrigerated transport, because it has extended input/output set and 1-wire interface for temperature monitoring.

The Dual-SIM feature provides a backup communication channel where the coverage of a singular operator is not sufficient. As well Dual-SIM feature will let you significantly reduce roaming costs.

It’s just a small part of existing functionality but it allows to make FMC125 even better.


Specificaties
  • Belangrijkste eigenschappen
    Kenmerken

    CELLULAR

    Technology:
    TE Cat 1, UMTS, GSM

    2G bands
    EC21-AU: GSM: B2/B3/B5/B8
    EC21-EC: GSM: B3/B8

    3G bands
    EC21-AU: WCDMA: B1/B2/B5/B8
    EC21-EC: WCDMA: B1/B8

    4G bands
    EC21-AU: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
    LTE TDD: B40
    EC21-EC: LTE FDD:
    B1/B3/B7/B8/B20/B28A

    Data transfer
    LTE:
    LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL)
    UMTS:
    WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
    GSM:
    GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)

    Data support
    SMS (text/data)

    GNSS

    GNSS
    GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS

    Receiver Tracking:
    33

    Tracking sensitivity:
    -165 dBM

    Accuracy:
    < 3 m

    Hot start:
    < 1 s

    Warm start:
    < 25 s

    Cold start:
    < 35 s
  • Poorten & Interfaces
    GNSSYes
    bleutoothBleutooth LE
    SMSYES
    Seriele poorten1
  • Opslag
    Opslag interface128MB internal flash memory
  • Mechanische specificaties
    Afmetingen65 x 56,6 x 20,6 mm (L x W x H)
  • Product eigenschappen
    Gewicht55 g
  • Electrische specificaties
    Input range10 - 30 V DC with overvoltage protection
    170 mAh Li-Ion, 3.7 V battery (0.63 Wh)
  • Omgeving specificatie
    Opslag temperatuur-40 °C/+85 °C
    Operating Temperatuur-40°C/+85°C
    Relatieve luchtvochtigheid5% to 95% non-condensing
  • Generieke data
    FabrikantTeltonika
    Garantie24 Maanden
