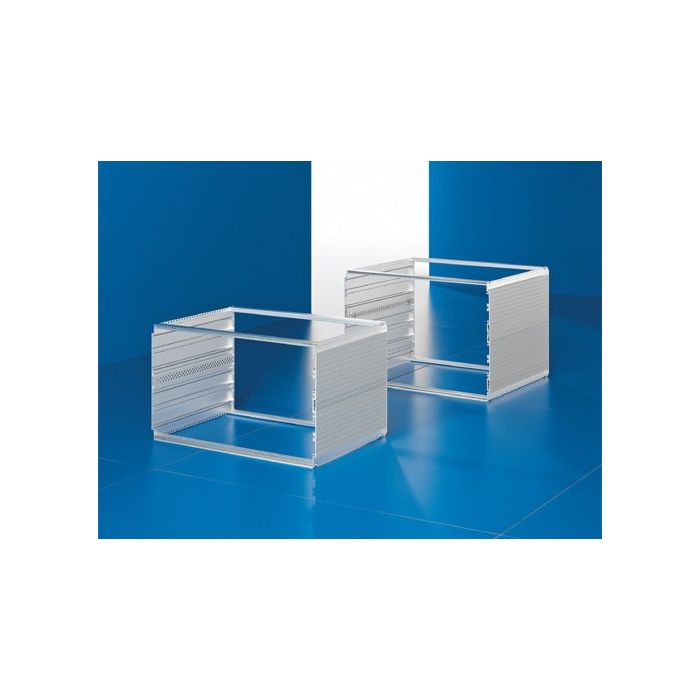

main product photo

basic enclosure EMC 6U/84HP/430,4mm

SKU:

3983160

Fabrikant:

HEITEC AG

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Product eigenschappen

Type product	HeiPac Vario-Module
Product groep	HeiPac Vario-Module 4 U, 6 U, 7 U, EMC
Diepte zijkant paneel	430,4 mm
Versie	Basic enclosure
Gat voor handvat	Nee
Algemene productinformatie	Technical specifications: May be used as a rack-mount enclosure or instrument case. External dimensions to IEC 60 297-3 for installation in 482.6 mm (19˝) racks. Installation dimensions for board type plug-in assemblies to IEC 60 297-3-101. Material/surface finish: Side panels: Extruded aluminum section, spray-finished in RAL 7035 Horizontal rails: Extruded aluminum section, clear-chromated Corner trims: Die-cast zinc, spray-finished in RAL 7035 Contact points: Conductive Protection category: IP 40 for non-vented version. Supply includes: 2 side panels 4 horizontal rails 4 threaded inserts 2 rear corner trims 2 side trims centre assembly parts Note: Corner trims, mounting flanges and top and bottom covers must be ordered separately. Additional information: Equipped as an instrument case Equipped as a rack-mount unit Horizontal rails for further configuration must be ordered separately.
Gewicht	3,78 kg

Generieke data

Fabrikant HEITEC AG
Ean code 4250558923412
Garantie 12 Maanden

Downloads

datasheet	HEITEC_EPS_Catalogue_EN_Seite_106.pdf

Prijs op aanvraag
