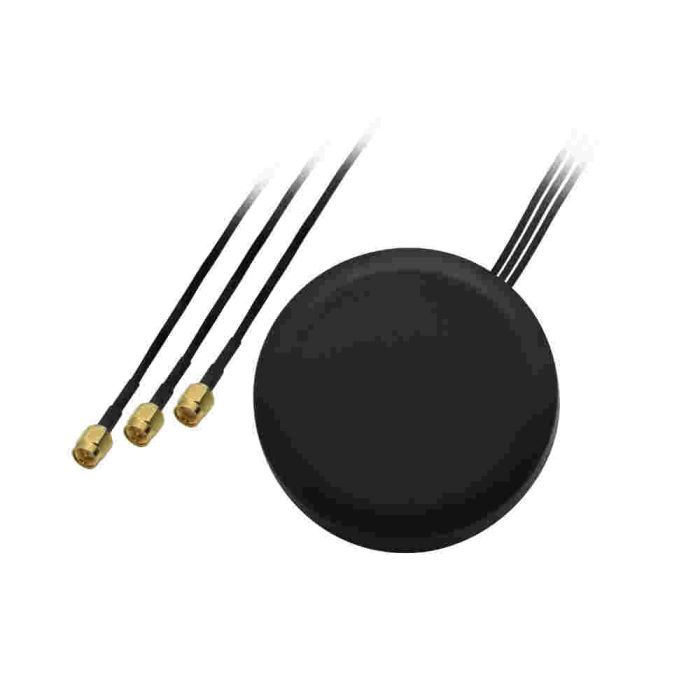

Combo SISO Mobile/GNSS/WIFI roof SMA Antenna
SKU:
003R-00254
Fabrikant:
Teltonika
Teltonika COMBO SISOMobile/GNSS/WiFi ROOF SMA Antenna for the Teltonika RUT series.
Details
Specificaties
Downloads
GNSS Antenna
LTE Antenna
WiFi Antenna
Mechanical/Environmental
- • Frequency Range: 1575.42-1610 MHz
- • Polarization: RHCP
- • Impedance: 50 Ω
- • LNA Gain: 28 dB
- • LNA Noise Figure: < 1.5 dB
- • Supply Voltage: 2.7-5 ±0.5 VDC
- • Current Consumption: < 15 mA
- • LNA V.S.W.R: <1.65
- • Connector: SMA Male
LTE Antenna
- • Frequency Range: 850/900/1800/1900/2170 MHz
- • Bandwidth: ±90/280 MHz
- • Polarization: Vertical
- • Gain: 3.5 dBi
- • V.S.W.R: <1.5:1
- • Impedance: 50 Ω
- • Connector: SMA Male
WiFi Antenna
- • Frequency Range: 2350-2500 MHz
- • Bandwidth: ±100 MHz
- • Polarization: Vertical
- • Gain: 2.5 dBi
- • V.S.W.R: <1.5:1
- • Impedance: 50 Ω
- • Connector: RP SMA Male
Mechanical/Environmental
- • Mounting Method: Screw
- • Radome Ingress Protection rating: IP67
- • Radome Material: ABS
- • Weight: <250g
- • Housing Dimensions: Ø 80x15 mm
- • Cable: 3x RG174, 3000 mm
- • RoHS Compliant: ✔
|
|
|
