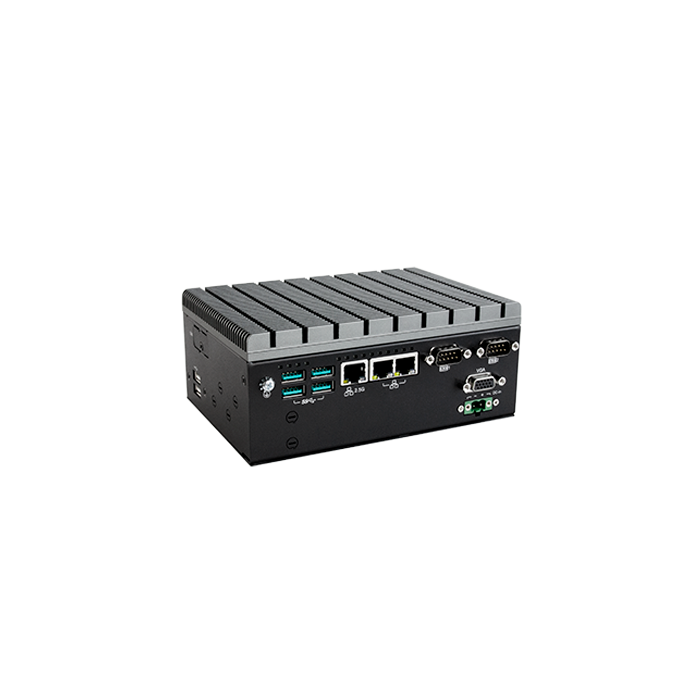

ED700-EHL: x6425E, 8GB, 32GB EMMC, 1x2.5GbE, 3x1GbE, -40~70°
-
SKU :
750-ED70001-200G
-
Processor :
Intel Atom
-
Max geheugen :
8GB
-
Operating Temperatuur :
-40°C/+60°C
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
-
Processor
| Processor | Intel Atom |
|---|
| Processor serie | Elkhart Lake |
|---|
| Socket type | BGA1493 |
|---|
| Basisfrequentie | 2.0GHz |
|---|
| Aantal cores | 4 |
|---|
| TDP | 12W |
|---|
-
Geheugen
| Geheugentype | DDR4 |
|---|
| Geheugenslots | 1 |
|---|
| Max geheugen | 8GB |
|---|
-
Video
| Aansluitingen | VGA
1 x VGA |
|---|
| Chipset | Intel® UHD Graphics for |
|---|
-
Uitbreidingsmogelijkheden
| Uitbreiding slots | M.2
1 x M.2 2230 (USB/PCIe)
1 x M.2 3042/3052 (USB 3.0/PCIe) with dual SIM |
|---|
-
Poorten & Interfaces
| LAN poorten | 4 |
|---|
| Seriele poorten | 2 |
|---|
| USB 2.0 poorten | 2 |
|---|
| USB 3.x poorten | 4 |
|---|
| Externe I/O | LAN
3 x Intel® Ethernet Controller I210/I211 GigE LAN
1 x Intel® Ethernet 2.5GigE LAN
Serial
2 x RS232/422/485
USB
2 x USB 2.0
4 x USB 3.1 |
|---|
-
Opslag
| Opslag interface | eMMV
1x eMMC 32GB
M.2
1 x M.2 2280 (SATA)
|
|---|
-
Mechanische specificaties
| Afmetingen | 72 x 172 x 118.2 (mm) |
|---|
| Montage | Wall/DIN rail mount |
|---|
-
Product eigenschappen
-
Electrische specificaties
| Input range | Wide range 9~36V |
|---|
-
Omgeving specificatie
| Opslag temperatuur | -40/+85°C |
|---|
| Operating Temperatuur | -40°C/+60°C |
|---|
| Relatieve luchtvochtigheid | 10 to 90% RH (non-condensing) |
|---|
-
Certificeringen
| standaarden | Shock
Operating:
3G, 11ms
Non-Operating:
5G, 11ms
Vibration
Operating:
Random 5~500Hz, IEC68-2-64 (3G)
Non-Operating:
Sine 10~500Hz, IEC68-2-6 (3G) |
|---|
| certificaten | CE, FCC, RoHS, UKCA |
|---|
-
Generieke data
| Fabrikant | DFI |
|---|
| Marktsegment | Automation, IoT, In-vehicle |
|---|
|
