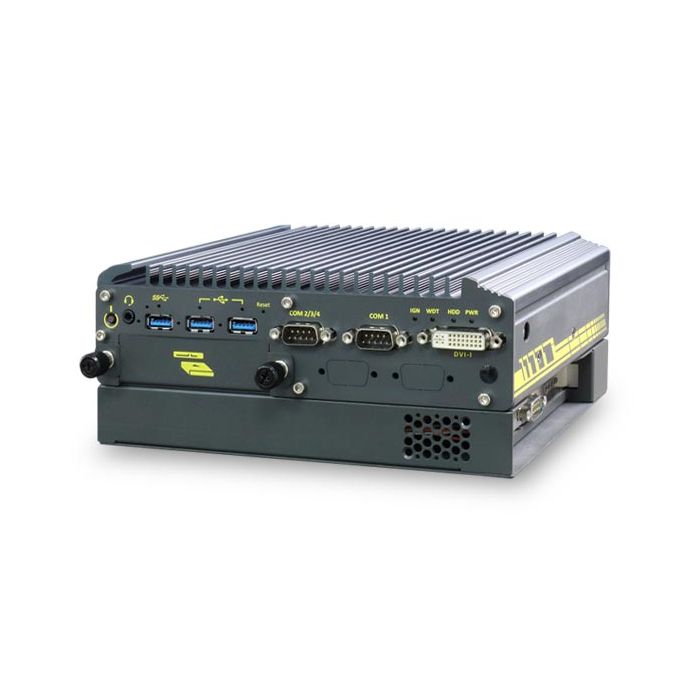

EN50155/ EN45545 x6425E Railway Computer with SuperCAP UPS

SKU:
NUVO-2615RL-H
Fabrikant:
Neousys
  • Processor : Intel Atom
  • Max geheugen : 32GB
  • Operating Temperatuur : -40°C/+70°C
EN50155/ EN45545 x6425E Railway Computer with SuperCAP UPS
Capacity: 2500 watt-second (Nuvo-2615RL Only)
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads

Introduction

The Nuvo-2615RL series is an EN50155 and EN45545-compliant, fanless Intel® Atom®-based railway computer for video-based rolling stock applications such as NVR (network video recorder) and video analytics.

Nuvo-2615RL has a dedicated thermal design to meet EN50155 OT4 class (-40°C to 70°C) fanless operation with max CPU performance and up to 50W PoE+ delivery. To overcome the challenging railway conditions, from voltage fluctuations to power outage interruptions, Nuvo-2615RL is equipped with an isolated wide 43V to 160V DC input design and a built-in SuperCAP UPS to sustain more than 30 seconds of operation time without power supply. If power outage time exceed the sustainable duration, the internal microcontroller (MCU) will trigger a software shutdown before running out of SuperCAP energy to protect the hardware, data, and minimize maintenance costs.

Powered by Intel® Elkhart Lake Atom® x6425E quad-core CPU, the Nuvo-2615RL series delivers 1.8x the CPU performance compared with Intel's previous Atom generation, Apollo Lake. The Nuvo-2615RL series features 4x PoE+ GbE ports with up to 50W total power budget for IP camera connectivity. In addition to the internal M.2 2280 SATA SSD for system storage, Nuvo-2615RL has one front-accessible 2.5" HDD tray accommodating a 2.5" SATA HDD/SSD up to 15mm in height and 5TB in capacity. For internal expansion, it provides two mini-PCIe sockets for WiFi, GNSS, and CAN modules. There is also an M.2 3042/3052 B Key socket for 4G/5G mobile broadband modules.

Integrating an Intel Atom® quad-core x6425E, -40°C to 70°C fanless operations, M12 PoE+ connectivity, up to 5TB data storage capacity, 2500 wattsecond SuperCAP UPS, 43V to 160V wide-range DC input, and EN50155 and EN45545 compliance, the Nuvo-2615RL series is the ideal rugged transportation computer for vision-based rolling stock applications.
Specificaties
  • Processor
    ProcessorIntel Atom
    Processor serieElkhart Lake
    Basisfrequentie2.0GHz/3.0GHz
    Aantal cores4
    TDP12W
  • Geheugen
    GeheugentypeDDR4
    Geheugenslots1
    Max geheugen32GB
  • Video
    AansluitingenDVI / VGA
    VGA and DVI dual display outputs via DVI-I connector
    ChipsetIntegrated Intel® UHD Graphics
  • Belangrijkste eigenschappen
    Kenmerken• Compliant with EN 50155 mandatory tests and EN 45545-2
    • Rugged -40°C to 70°C fanless operations, compliant with EN 50155 Class OT4
    • 43V to 160V wide-range DC input with 1500Vdc insulation
    • Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
    • 4x PoE+ GbE ports via M12 x-coded connectors
    • Built-in SuperCAP UPS for power interruptions > 30 seconds (Nuvo-2615RL only)
    • 1x front-accessible 2.5” 15mm HDD tray and 1x M.2 2280 SATA SSD
    • 2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B Key
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsMini PCIe
    1x full-size mini PCI Express socket with PCIe and USB 2.0 signal
    1x full-size mini PCI Express socket with USB 2.0 signal

    M.2
    1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal micro SIM socket
  • Poorten & Interfaces
    LAN poorten4
    Seriele poorten2
    USB 2.0 poorten2
    USB 3.x poorten1
    Audio interface1x 3.5 mm jack for mic-in and speaker-out
    Externe I/OEthernet Ports
    4x IEEE 802.3at Gigabit PoE+ ports by Intel® I210 via M12 x-coded connectors
    Total PoE+ power budget: 50W (Nuvo-2615RL-H)

    USB
    1x USB 3.1 gen1 ports with screw-lock
    2x USB 2.0 port with screw-lock

    Serial Port
    1x isolated RS-485 port with 15 kV ESD protection (COM1)
    3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2)

    Isolated DIO
    4-CH isolated DI and 4-CH isolated DO
    Interne I/OMini PCIe
    1x full-size mini PCI Express socket with PCIe and USB 2.0 signal
    1x full-size mini PCI Express socket with USB 2.0 signal

    M.2
    1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal micro SIM socket
    PoE beschikbaarJa
    POE vermogenPoE Capability
    4x IEEE 802.3at Gigabit PoE+ ports by Intel® I210 via M12 x-coded connectors
    Total PoE+ power budget: 50W (Nuvo-2615RL-H)
  • Opslag
    Opslag interfaceSATA
    1x front-accessible HDD tray for 2.5" HDD/ SSD installation (up to 15mm height)

    M.2
    1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation
  • Mechanische specificaties
    Type behuizingCompact fanless
    Afmetingen205 mm (W) x 156 mm (D) x 86 mm (H)
    MontageDamping bracket (default)
    Wall-mount (optional)
  • Product eigenschappen
    Gewicht2.7kg
  • Electrische specificaties
    Input range1x 3-pin pluggable terminal block for isolated 43V to 160V DC input
  • Omgeving specificatie
    Opslag temperatuur-40°C/+85°C
    Operating Temperatuur-40°C/+70°C
    Relatieve luchtvochtigheid10% to 90%, non-condensing
  • Certificeringen
    certificatenVibration
    IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155)

    Shock
    IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155)

    EMC
    EN 50155:2017, Clause 13.4.8
    CE/FCC Class A, according to EN 55032 & EN 55035
    EN50155
    All mandatory sections of EN 50155:2017
    Nuvo-2615RL: EN50155 Class S3, EN50155 C2

    EN45545
    EN 45545-2 (Fire protection on railway vehicles)
  • Generieke data
    FabrikantNeousys
    MarktsegmentAutomation, IoT, In-vehicle
    Garantie24 Maanden
