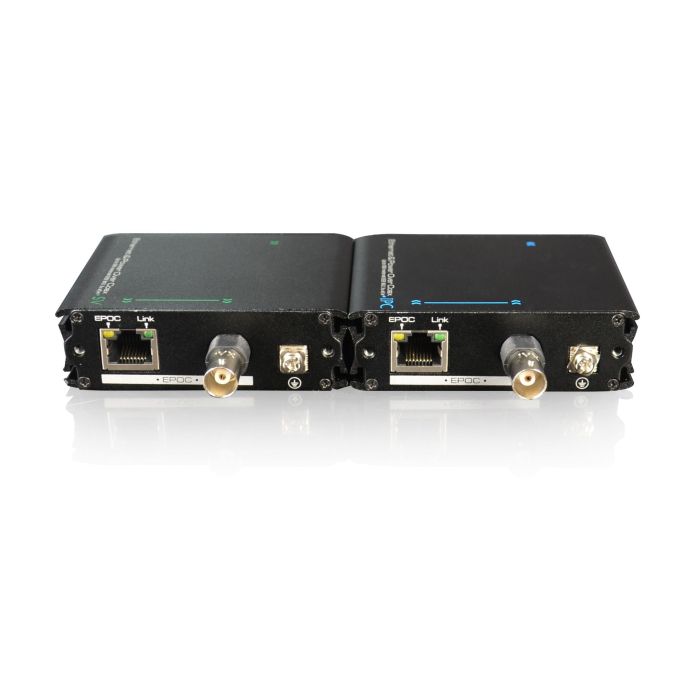

Ethernet en Power over coax extender

SKU:

UTP7301EPOC

Fabrikant:

Utepo

Fabrikant : Utepo
Apparaat : Ethernet Extender

Lokaal op voorraad

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

• The equipmentconsists of two parts:SV-Unit and IPC-Unit. SVUnit has 48-57VDC port,one PoE input port and two output ports: BNC and RJ45; IPCUnit has two input ports: BNC and RJ45, one PoE output port
• Adopt advanced transmission and powersupply technoloy, can transmit Ethernetsignal and powersignal up to 500m though coaxial cable and transmit Ethernet signal and power signal up to 400 m though network cable
• Ethernet delay less than 1ms; meet point to point application
• Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af/at
• Protection: excellent circuit isolation protection, superior product anti-thunder , anti-satific and anti-interference ability
• Appearance: soild and delicate, meet MIT rack installation standard
• Installation: Plug-and-play, no setting required

Poorten & Interfaces

Apparaat	Ethernet Extender
LAN poorten	4
PoE beschikbaar	Ja
POE vermogen	• PoE Agreement: Support IEEE802.3af, IEEE802.3at • PoE Power Supply: Support End-span and Mid-span

Mechanische specificaties

Type behuizing Aluminum housing
Afmetingen 63,2mm (l) x 82mm (w) x 25mm (h)
Product eigenschappen

Gewicht IPC: 153g ; SV: 154G
Omgeving specificatie

Opslag temperatuur • -40 ~85℃
Operating Temperatuur 0°C/+55°C
Relatieve luchtvochtigheid • 0~95%
Generieke data

Fabrikant Utepo
Garantie 24 Maanden

Downloads

Handleiding	UTP7301EPOC_manual.pdf
datasheet	UTP7301EPOC_datasheet.pdf

€ 159,72 € 132,00
