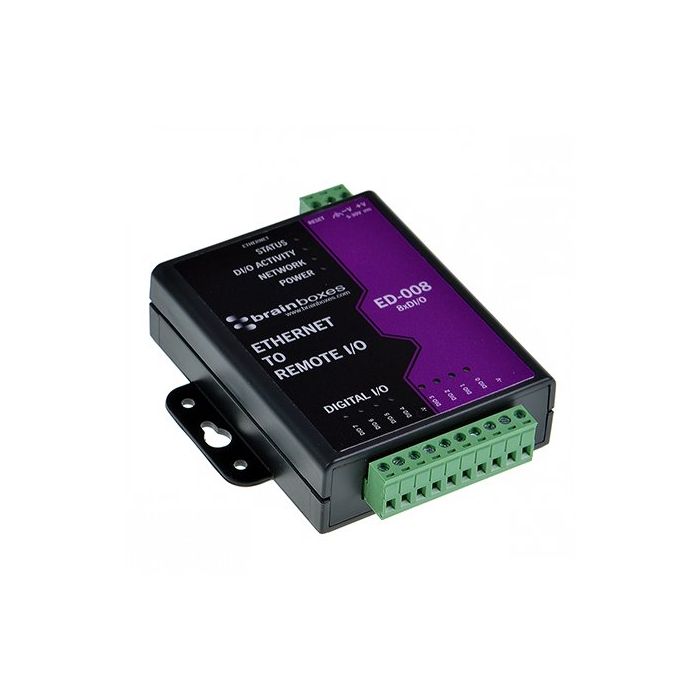

Ethernet to 8 Digital IO Ports

  • Aantal poorten : 8
Neem contact met ons op voor de levertijd
Ethernet to DIO device: 8 digital input/output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.

Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids.
  • Belangrijkste eigenschappen
    Kenmerken● 8 Digital Inputs/Outputs
    ● Control any input or output from TTL to high voltage high current industrial devices
    ● Factory floor process control and automation
    ● 0°C to +60°C Temperature range
    ● Wall mountable
    ● IP-30 rated non-conducting polyamide case
    ● User friendly software interface, Legacy compatible
    ● Software APIs for Visual Basic, C# and more
  • Poorten & Interfaces
    Externe I/OScrew Terminals
    3x 0.2inch/5.08mm
    10x 0.2inch/5.08mm pitch

    Ethernet Port
    1x RJ45 jack, 10/100Mhz autosensing, crossover auto sensing (Auto MDIX)
    Aantal poorten8
  • Mechanische specificaties
    Afmetingen116x100x26 mm

    IP-30 rated non-conducting polyamide case
  • Electrische specificaties
    Input range5V - 30V DC input, reverse polarity protected
    Power consumption100mA@24V 2.5W max
  • Omgeving specificatie
    Opslag temperatuur0°c/+70°C
    Operating Temperatuur0°C/+60°C
    Relatieve luchtvochtigheid5 to 95% (non-condensing)
  • Generieke data
