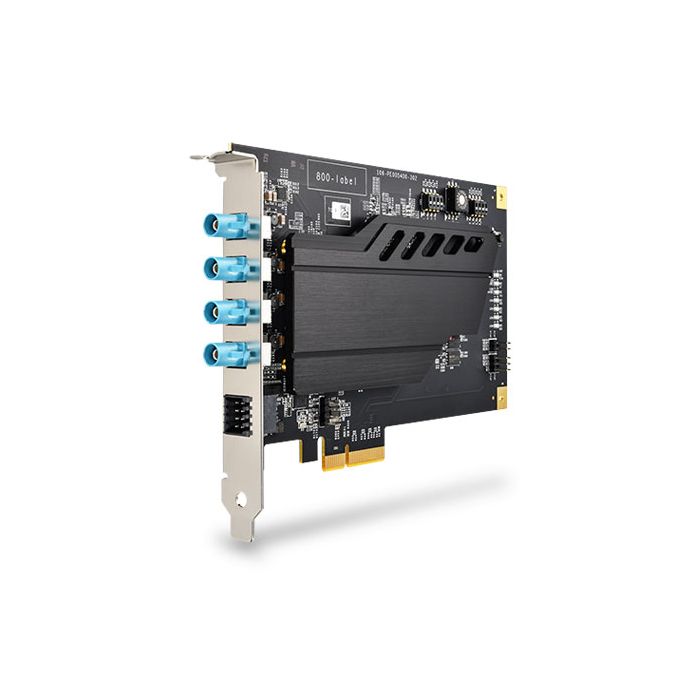

Fanless 4-port GMSL2 Camera Frame Grabber Card

SKU:

PCIE-NPL54

Fabrikant:

Neousys

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Features
• 4x GMSL2 FAKRA Z inputs supporting automotive GMSL2 cameras
• Driver ready for selected 8MP/ 5MP/ 3MP/ 2MP GMSL2 cameras
• 1x GPS PPS input and 1x GPS PPS output for frame synchronization calibration
• Single-slot, half-length PCIe card form factor. Powered directly via PCIe connectors; no external PCIe power cable required x4 Gen2 PCI Express interface
• -40°C to 70°C fanless operation
• Compatible with Linux host computers

Poorten & Interfaces

Externe I/O

GSML2 Connector
4x GMSL2 FAKRA Z connectors, supporting multiple camera configurations, including but not limited to:

Configuration A: 2x 8MP + 1x 3MP @ 30 FPS
Configuration B: 4x 5MP @ 30 FPS
Configuration C: 4x 3MP @ 30 FPS
Configuration D: 4x 2MP @ 60 FPS
Configuration E: 4x 2MP @ 30 FPS

GPS PPS
1x isolated GPS PPS input
1x GPS PPS output (follows the GPS PPS input; designed for GPS PPS signal daisy-chaining

RS-232
1x RS-232 (connected to onboard MCU)

Mechanische specificaties

Afmetingen 167.7 mm (W) x 111 mm (H)
Product eigenschappen

Gewicht 183 g
Omgeving specificatie

Opslag temperatuur -40°C/+85°C
Certificeringen

certificaten CE/ FCC Class A, according to EN 55032 & EN 55035
Software support

Operating systeem Ubuntu 20.04, Ubuntu 22.04, Ubuntu 24.04
Generieke data

Fabrikant Neousys
Garantie 24 Maanden

Downloads

Handleiding	PCIe-NPL54_User_Manual_v1-0.pdf
datasheet	PCIe-NPL54-Fanless-GMSL2-Camera-Frame-Grabber-Card.pdf
