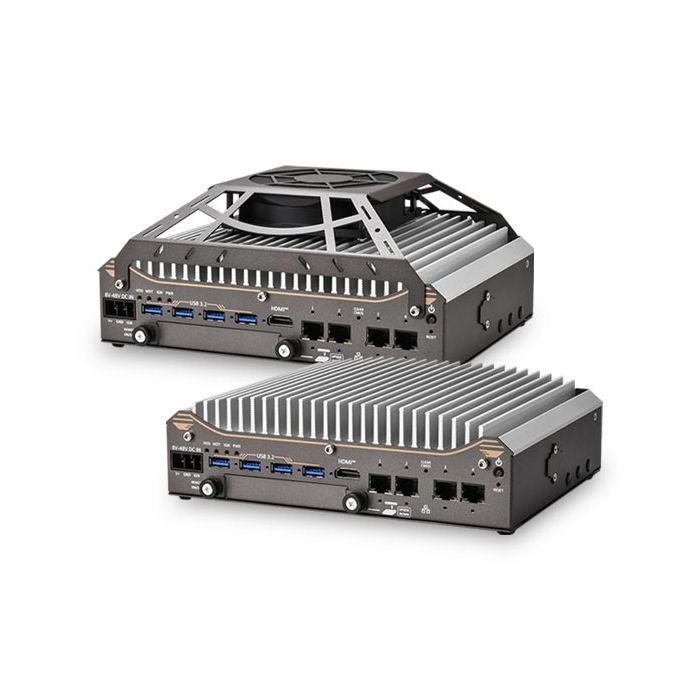

Fanless IPC Core Ultra 200 6xUSB 4xLAN PoE 2.5"Tray SlimSAS
-
SKU :
NUVO-11588-POE
-
Processor :
Core Ultra
-
Max geheugen :
48GB
-
Operating Temperatuur :
-25°C/+60°C
Fanless IPC Core Ultra 200 6xUSB 4xLAN PoE 2.5"Tray SlimSAS
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
-
Processor
| Processor | Core Ultra |
|---|
| Processor serie | Arrow Lake |
|---|
| Socket type | LGA1851 |
|---|
| Basisfrequentie | Core Ultra 5 245T: max. Turbo 5.1GHz |
|---|
| Aantal cores | 14 |
|---|
| chipset | Q870 |
|---|
-
Geheugen
| Geheugentype | DDR5 |
|---|
| Geheugenslots | 1 |
|---|
| Max geheugen | 48GB |
|---|
-
Video
| Aansluitingen | DisplayPort
1x DisplayPort, up to 4096 x 2304
HDMI
1x HDMI, up to 4096 x 2160 |
|---|
| Chipset | Integrated Intel Xe Graphics (Up to 64EU) |
|---|
-
Belangrijkste eigenschappen
| Kenmerken | Features
• 212mm x 165mm x 63mm low-profile design
• Intel® Core™ Ultra 200 series 35W/ 65W LGA1851 CPU
• Rugged, -25°C/+60°C temperature operation range
• Up to 48GB DDR5-6400 memory
• 4x 2.5GbE Ports, optional PoE+
• 4x USB3.2 with screw-lock
• 1x M.2 2280 Gen4x4 NVMe
• 1x swappable 2.5” SSD tray for storage
• 1x PCIe Gen4x8 via SlimSAS 8i (SFF-8654) connector (Nuvo-11588 only)
• 8V~48V wide-range DC input |
|---|
-
Uitbreidingsmogelijkheden
| Uitbreiding slots | Mini PCIe
2x mini PCI Express Slots, internal SIM
M.2
1x M.2 2230 E-Key slot, support WiFi |
|---|
-
Poorten & Interfaces
| LAN poorten | 4 |
|---|
| Seriele poorten | 4 |
|---|
| USB 2.0 poorten | 2 |
|---|
| USB 3.x poorten | 4 |
|---|
| Externe I/O | Ethernet Ports
4x 2.5GbE Ports with screw-lock
Port 4 supports Wake-on-LAN (WOL)
External PCI Express
1x PCIe Gen4x8 via SlimSAS 8i (SFF-8654) connector
USB
4x USB 3.2 Ports with screw-lock
2x USB 2.0 Ports
Serial Port
1x software-programmable RS-232/422/485 Ports
3x 3-wire RS-232 ports Ports or 1x RS-422/485 Ports
Isolated DIO
8-CH isolated DI and 8-CH isolated DO |
|---|
| PoE beschikbaar | Ja |
|---|
| POE vermogen | PoE Option
Optional IEEE 802.3at PoE+ PSE for 4x 2.5GbE Ports
Total power budget: 100W |
|---|
-
Opslag
| Opslag interface | SATA
1x easy-swappable 2.5" HDD/SSD tray, up to 7mm HDD/SSD
M.2
1x M.2 2280 M-Key slot (PCIe) |
|---|
-
Mechanische specificaties
| Afmetingen | 212mm (W) x 165mm (D) x 63mm (H) |
|---|
| Montage | Wall-mount (standard) or DIN-rail mount (optional) |
|---|
-
Electrische specificaties
| Input range | 8V~48V DC input, 3-pin |
|---|
-
Omgeving specificatie
| Opslag temperatuur | -40°C/+85°C |
|---|
| Operating Temperatuur | -25°C/+60°C |
|---|
| Relatieve luchtvochtigheid | 10% to 90%, non-condensing |
|---|
-
Certificeringen
| standaarden | Vibration
MIL-STD-810H, Method 514.8, Category 4
Shock
MIL-STD-810H, Method 516.8, Procedure I
EMC
CE/FCC Class A, according to EN 55032 & EN 55035 |
|---|
-
Generieke data
| Fabrikant | Neousys |
|---|
| Marktsegment | Automation |
|---|
| Garantie | 24 Maanden |
|---|
|
