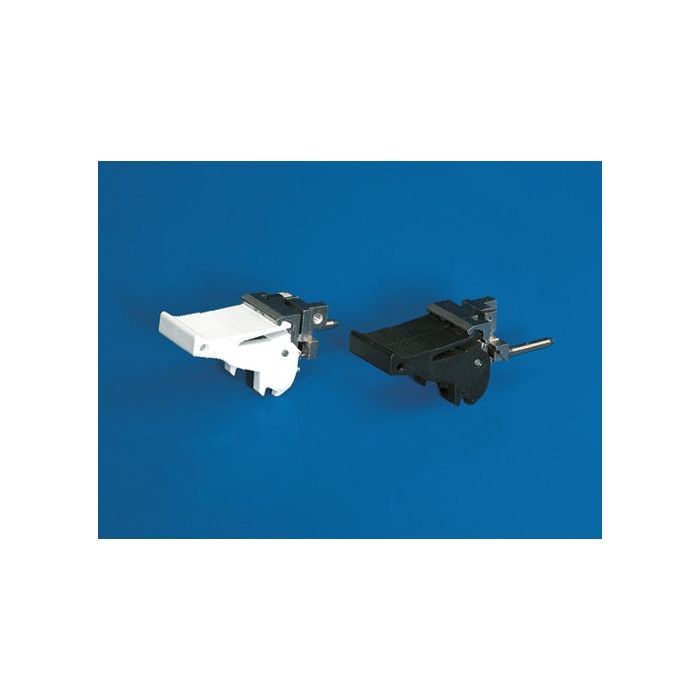

Handle Type IV grey bottom w.o. switch
Op voorraad, voor 14:00 uur besteld, volgende dag geleverd.
Details
Specificaties
Downloads
Specificaties
-
Product eigenschappen
| Type product | Front panels, Handles |
|---|
| Product groep | Handle Type IV |
|---|
| Versie | Installation bottom, without micro-switch |
|---|
| Gat voor handvat | Nee |
|---|
| Algemene productinformatie | Handles with micro-switch
For inserting and removing connectors with
a large number of pins. - Insertion/removal function
- Integral microswitch for “live insertion” applications
- Self-activation of the micro-switch during insertion/removal
- ES D pin to dissipate static charges before contacting the connectors and for precise positioning of the board type plug-in unit
- Keyable
- Integral PCB attachment
- Self-locking
- Bayable
Handle without micro-switch
Description see above. Micro-switch may be retrofitted.
Supply includes: 1 handle without or with micro-switch, assembly parts.
Note: - Insertion only when used with front horizontal rails, with 10 mm extension (B, B1, B2)
- With 3 U front panels, only one extractor handle is required.
|
|---|
| Gewicht | 21 gr. |
|---|
-
Generieke data
| Fabrikant | HEITEC AG |
|---|
| Ean code | 4250558930588 |
|---|
| Garantie | 12 Maanden |
|---|
|
