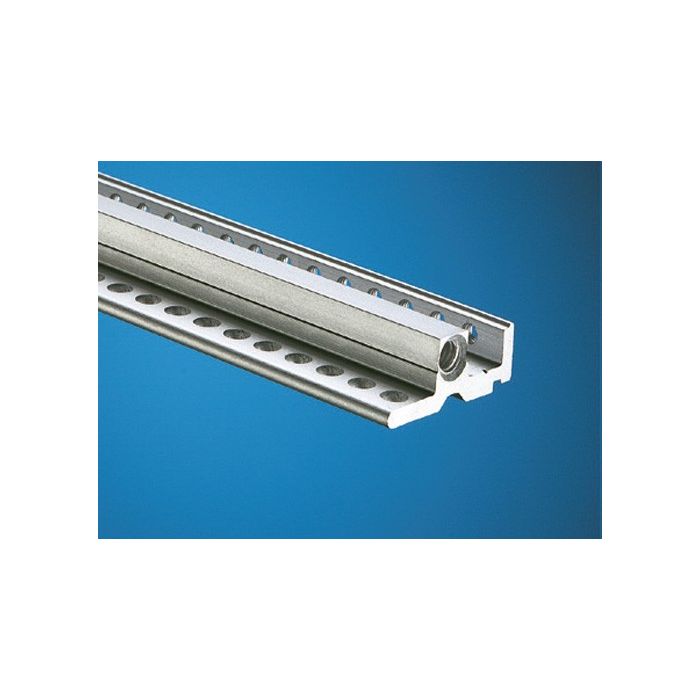

Horizontal rail rear 21HP

SKU:
3685991
Fabrikant:
HEITEC AG
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Product eigenschappen
    Type productHorizontal rails for HeiPac Vario Line
    Product groepRear horizontal rail (BP1)
    Gat voor handvatNee
    Algemene productinformatieTo accommodate guide rails and for the attachment of Z rails, insulating strips or conductive strips
    • Tapped holes M2.5 on a 1 HP pitch pattern
    • HP pitch pattern of holes for the precise installation of guide rails
    • M2.5 thread for the installation of Z rails or insulating / conductive strips
    • M4 thread on end face
    • Straight-through core hole
    • Horizontal rail 192 HP without machining on the end faces. Suitable for cutting to length
    Material: Extruded aluminum section Surface finish: Clear-chromated or anodized
    Gewicht23,5 gr.
  • Generieke data
    FabrikantHEITEC AG
    Ean code4250558906781
    Garantie12 Maanden
