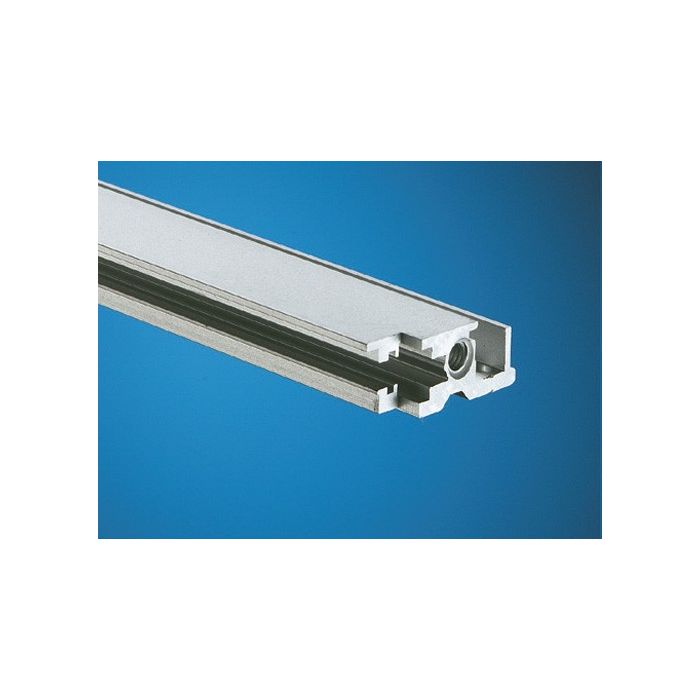

Horizontal rail rear 84HP
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
-
Product eigenschappen
| Type product | Horizontal rails for HeiPac Vario Line |
|---|
| Product groep | Rear horizontal rail (BP1) |
|---|
| Gat voor handvat | Nee |
|---|
| Algemene productinformatie | To accommodate guide rails and for the attachment of Z rails, insulating strips or conductive strips - Tapped holes M2.5 on a 1 HP pitch pattern
- HP pitch pattern of holes for the precise installation of guide rails
- M2.5 thread for the installation of Z rails or insulating / conductive strips
- M4 thread on end face
- Straight-through core hole
- Horizontal rail 192 HP without machining on the end faces. Suitable for cutting to length
Material: Extruded aluminum section Surface finish: Clear-chromated or anodized |
|---|
| Gewicht | 0,095 kg |
|---|
-
Generieke data
| Fabrikant | HEITEC AG |
|---|
| Ean code | 4250558902912 |
|---|
| Garantie | 12 Maanden |
|---|
|
