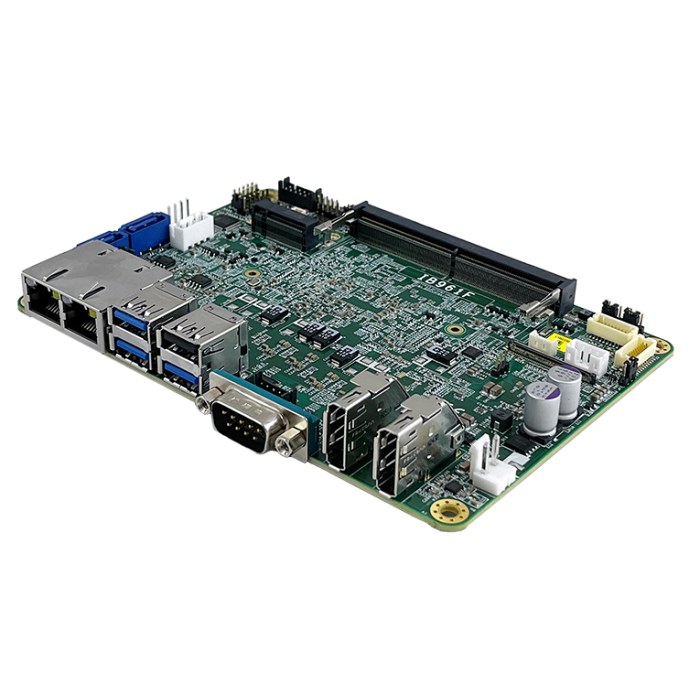

IB961 3.5" SBC Core i3-1320PE 2LAN eDP/LVDS DC12-24V

SKU:
IB961AF-13P (V-B1)
Fabrikant:
iBASE
  • Processor : Intel Core
  • Max geheugen : 32GB
  • Operating Temperatuur : 0°C/+60°C
IB961 3.5" SBC Core i3-1320PE 2LAN eDP/LVDS DC12-24V
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
IBASE IB961 Series
Powered by the latest 13th Gen Intel® Core™ i7/i5/i3 mobile processors, the IB961 ensures high performance and exceptional efficiency for a wide range of applications.
Accompanied by a DDR5 SO-DIMM socket with a 32GB capacity, the motherboard guarantees seamless multitasking and improved system responsiveness.
Graphics support is provided by2x DP++, LVDS, and eDP for independent display outputs. Two Intel® PCI-E 2.5G LAN ensures high-speed networking for seamless data transfer.
Equipped with 3x USB 2.0, 3x USB 3.2, 2x COM, and 2x SATA III ports, the IB961 offers exceptional peripheral connectivity, and 3x M.2 slots (M-Key + E-key + B-key) enhances expandability options.
Specificaties
  • Processor
    ProcessorIntel Core
    Processor serieRaptor Lake
    Socket typeBGA1744
    Basisfrequentiemax. 4.50GHz
    Aantal cores8
    TDPStandard 28W
    chipsetSoC
  • Geheugen
    GeheugentypeDDR5 SO-Dimm
    Geheugenslots1
    Max geheugen32GB
  • Video
    AansluitingenDisplayPort
    2x DisplayPort 1.2

    Internal: eDP & LVDS
    1x eDP
    1x LVDS
    ChipsetIntel® UHD Graphics for 13th Gen Intel® Processors
  • Belangrijkste eigenschappen
    KenmerkenFeatures
    • Onboard 13th Gen Intel® Core™ i7/i5/i3 mobile processors
    • 1x DDR5 SO-DIMM, Max. 32GB
    • supports 2x DisplayPort (1.2), LVDS and eDP
    • 2x Intel® PCI-E 2.5G LAN
    • 3x USB 2.0, 3x USB 3.2, 2x COM, 2x SATA III
    • 3x M.2 slots (M-Key + E-Key + B-Key)
    • supports 5G, digital I/O (4-in/4-out), fTPM & watchdog timer
    • supports wide-range operating temperature from
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsM.2
    1x M.2 (E-Key, Type:2230, supports CNVi)
    1x M.2 (B-Key, Type:3052, supports 5G/LTE)
  • Poorten & Interfaces
    GPIO InterfaceDigital I/O (4-in/4-out)
    serial ATA interface2x SATA III
    Watchdog timerYes (256 segments, 0, 1, 2…255 sec / min)
    LAN poorten2
    Seriele poorten2
    USB 2.0 poorten3
    USB 3.x poorten3
    Audio interfaceBuilt-in HD audio with Realtek AL888S-VD2-GR
    Externe I/OEthernet
    1x RJ45 for 2.5 Gigabit Ethernet (Intel® I226LM/IT)
    1x RJ45 for 2.5 Gigabit Ethernet (Intel® I226V/IT)

    USB
    1x USB 2.0 1x Type-A)
    3x USB 3.2 (Type-A)

    Serial
    1x RS232/422/485
    1x RS232 (COM2)
    Interne I/OUSB
    2x USB2.0 via pin header

    SIM Slot
    1x SIM Slot
  • Opslag
    Opslag interfaceM.2
    1x M.2 (M-Key, Type:2280, supports NVMe withPCl-E(4x) signal only)

    SATA III
    2x SATA III
  • Mechanische specificaties
    Afmetingen102mm (W) x 147mm (H)
  • Electrische specificaties
    Input range12VDC - 24VDC In
  • Omgeving specificatie
    Opslag temperatuur-40°C/+80°C
    Operating Temperatuur0°C/+60°C
    Relatieve luchtvochtigheid10% ~ 90% (non-condensing)
  • Certificeringen
    certificatenCE, FCC Class B
  • Generieke data
    FabrikantiBASE
    MarktsegmentAutomation
