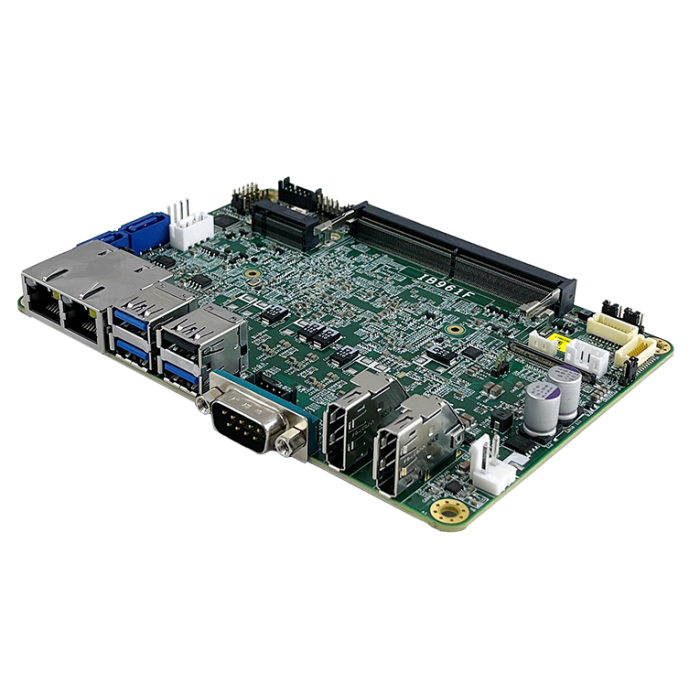

IB961 3.5" SBC Core i7-1370PE 2LAN eDP/LVDS DC12-24V

SKU:
IB961AF-17P (V-B1)
Fabrikant:
iBASE
  • Processor : Intel Core
  • Max geheugen : 32GB
  • Operating Temperatuur : 0°C/+60°C
IB961 3.5" SBC Core i7-1370PE 2LAN eDP/LVDS DC12-24V
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
The IB961 3.5" Single Board Computer (SBC) is engineered for peak performance, extensive connectivity, and unmatched versatility. Harnessing the prowess of 13th Gen Intel® Core™ processors, including the i7-1370PE, i5-1340PE, i5-1335UE, and i3-1320PE, the IB961 delivers exceptional computing capabilities across diverse applications. These processors advance performance hybrid architecture with up to 6 Performance-cores (P-core) and up to 8 Efficient-cores (E-core), ensuring unparalleled power for memory-intensive tasks.
.
This compact SBC offers a rich array of connectivity options, including M.2 (M-Key, E-Key, B-Key) mini type slots, and USB 3.2 ports, enabling 5G communications and ensuring seamless integration with peripherals. Dual Intel LAN support guarantees reliable, high-speed network connectivity. Integrated graphics from 13th Gen Intel Core mobile processors provide stunning visuals through 2x DisplayPort (1.2), eDP, and LVDS outputs. The IB961 signifies a leap forward in embedded computing technology, empowering businesses to enhance efficiency and adaptability across diverse industrial applications...

With dimensions measuring 102mm x 147mm, the compact IB961 seamlessly integrates into space-constrained environments. Its rugged design and comprehensive feature set position it as the preferred choice for industrial automation and edge computing applications.
Specificaties
  • Processor
    ProcessorIntel Core
    Processor serieRaptor Lake
    Socket typeBGA1744
    BasisfrequentieE-Core 3.70 GHz
    P-Core 4.80 GHz
    Aantal cores14
    TDP28W
  • Geheugen
    GeheugentypeDDR5 SO-Dimm
    Geheugenslots1
    Max geheugen32GB
  • Video
    AansluitingenDisplayPort
    2x DisplayPort (1.2),

    Internal
    eDP & LVDS
    ChipsetIntel® Iris® Xe Graphics eligible
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsM.2
    1x M.2 (E-Key, Type:2230, supports CNVi)
    1x M.2 (B-Key, Type:3052, supports 5G/LTE)
  • Poorten & Interfaces
    LAN poorten2
    Seriele poorten2
    USB 2.0 poorten3
    USB 3.x poorten3
    Externe I/OLan
    1x Intel® I226LM as 1st LAN
    1x I226V as 2nd LAN

    Serial Port
    2x COM port

    USB
    1x USB 2.0 (1x Type-A)
    3x USB 3.2 (3x Type-A)
    Interne I/OUSB
    2x USB 2.0 via pin headers

    I/O
    Digital I/O (4-in/4-out)
  • Opslag
    Opslag interfaceM.2
    1x M.2 (M-Key, Type:2280, supports NVMe with PCl-E(4x) signal only)
  • Mechanische specificaties
    Afmetingen102mm x 147mm (4“ x 5.8“)
  • Electrische specificaties
    Input range+12V~+24V DC-in
  • Omgeving specificatie
    Opslag temperatuur-40°C/+80°C
    Operating Temperatuur0°C/+60°C
    Relatieve luchtvochtigheid10% ~ 90% (non-condensing)
  • Generieke data
    FabrikantiBASE
    MarktsegmentAutomation
    Garantie24 Maanden
