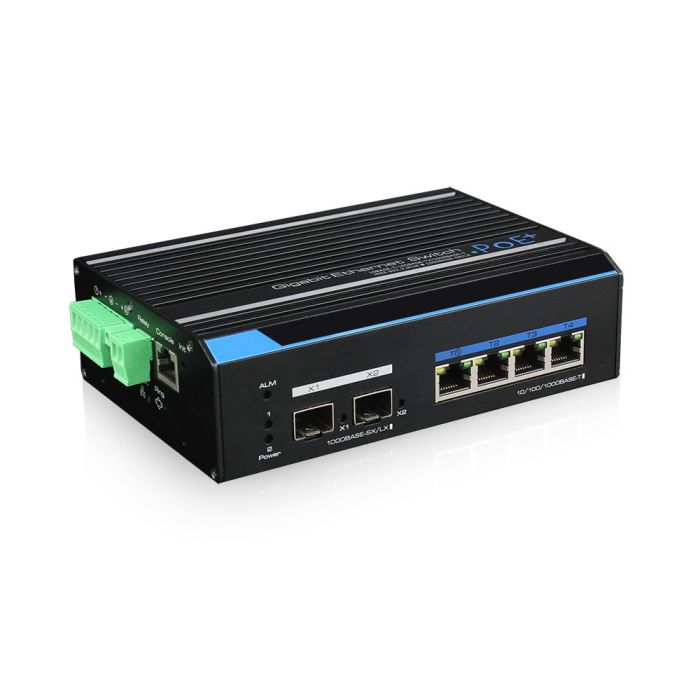

Industrial Full Gigabit Managed Switch

SKU:
UTP7304GE
Fabrikant:
Utepo
  • Fabrikant : Utepo
  • Apparaat : Managed Switch
Lokaal op voorraad
Details
Specificaties
Downloads
Specificaties
  • Belangrijkste eigenschappen
    Kenmerken• Provide 4* 10/100/1000Base-T RJ45 ports, 2 * 1000BASE-X SFP port
    • Buffer reaches 4Mbit, Support 4K high-definition video transmission
    • Support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function
    • Support fast ring ,support 30 pcs switches Max. in a cascade system ,Self-healing in 20ms Min.
    • Support one-key Fast-Ring setup,2 SFP ports developed a fast-ring
    • Support relay alarm for power off, network broken, PoE off
    • 6KV surge immunity, 8KV ESD protection and anti-interference ability
    • -40℃~75℃ working temperature
  • Poorten & Interfaces
    ApparaatManaged Switch
    LAN poorten4
    Switch Architecture• Switch bandwidth: 24Gbps/ non-blocking
    Overdrachtsnelheid• Copper Ports: 4* 10/100/1000Base-T RJ45 (Auto-MDI/MDI-X)
    • SFP Ports: 2*1000 Base-X SFP (Mini-GBIC)
    • Switch Throughput: 17.9Mpps
    PoE beschikbaarNee
  • Mechanische specificaties
    Afmetingen159mm (l) ×110mm (w) ×46.5mm (h)
    Montage• Installation: On desk; Din-rail; Wall hung
  • Product eigenschappen
    Gewicht1.5kg
  • Omgeving specificatie
    Opslag temperatuur • -40-75℃
    Operating Temperatuur-40°C/+85°C
    Relatieve luchtvochtigheid • Humidity: 5%-95% (Non-condensing)
  • Generieke data
    FabrikantUtepo
    Garantie24 Maanden
