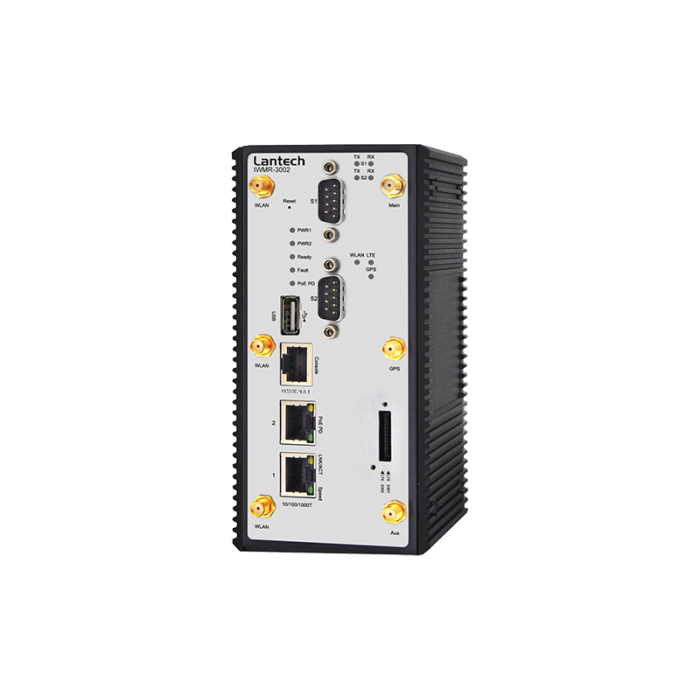

Industrial mobile vpn router 2xLTE 1xWIFI 2xRS232 2xGB LAN

SKU:
8610-101
Fabrikant:
Lantech
  • Fabrikant : Lantech
  • Apparaat : Routers
Industrial mobile vpn router 2xLTE 1xWIFI 2xRS232 2xGB LAN
Neem contact met ons op voor de levertijd
Details
Specificaties
Specificaties
  • Belangrijkste eigenschappen
    Kenmerken● Up to 2 concurrent WIFI 11ac and redundancy (1L-2AC model)
    ● Up to 2 concurrent modems for 3G/4G LTE Link & GPS (2L-1AC model/4 SIMs)
    ● Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model)
    ● Built-in 2 Gigabit Ethernet ports (1LAN+1WAN or 2LAN) (incl. 1PD)
    ● Dual radio for 802.11ac/a/b/g/n with concurrent 5GHz & 5GHz bands up to 2.6Gbps Wi-Fi bandwidth(2AC model)
    ● MIMO technology 3T3R; SMA type up to 6 external antennas
    ● Support roaming with 802.11k & v
    ● Supports AP/ Bridge/ Client/ MESH modes
    ● Support 802.11s Wireless Mesh Network
    ● Air teaming** for Wi-Fi high-sustainability and aggregated bandwidth
    ● VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, PPTP**, L2 over GRE , IPGRE
    ● Load Balancing built-in 5 mechanisms
    ● Optional EMMC Flash storage on-board**
    ● Support NAT and Firewall
    ● Support Modbus gateway
    ● Support 2 RS422/RS485 ports with 2.5KV isolation or 2 RS232 ports
    ● Dual input range from 9V to 60VDC (24V model); Dual Input 24V~30VDC (24V-IGN model); Single input power
    90~305VAC/120~430VDC (HV model) (RJ45 model)
    ● Vehicle E-marking* certificate (M12 model)
    ● Wi-Fi & LTE graphic signal strength
    ● Editable login page of captive portal for hot-spot application
    ● USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware*
    ● ITxPT compliant w/ ignition function* Up to 2 concurrent WIFI 11ac and redundancy (1L-2AC model)
    ● Up to 2 concurrent modems for 3G/4G LTE Link & GPS (2L-1AC model/4 SIMs)
    ● Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model)
    ● Built-in 2 Gigabit Ethernet ports (1LAN+1WAN or 2LAN) (incl. 1PD)
    ● Dual radio for 802.11ac/a/b/g/n with concurrent 5GHz & 5GHz bands up to 2.6Gbps Wi-Fi bandwidth(2AC model)
    ● MIMO technology 3T3R; SMA type up to 6 external antennas
    ● Support roaming with 802.11k & v
    ● Supports AP/ Bridge/ Client/ MESH modes
    ● Support 802.11s Wireless Mesh Network
    ● Air teaming** for Wi-Fi high-sustainability and aggregated bandwidth
    ● VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, PPTP**, L2 over GRE , IPGRE
    ● Load Balancing built-in 5 mechanisms
    ● Optional EMMC Flash storage on-board**
    ● Support NAT and Firewall
    ●Support Modbus gateway
    ● Support 2 RS422/RS485 ports with 2.5KV isolation or 2 RS232 ports
    ● Dual input range from 9V to 60VDC (24V model); Dual Input 24V~30VDC (24V-IGN model); Single input power 90~305VAC/120~430VDC (HV model) (RJ45 model) ● Vehicle E-marking* certificate (M12 model)
    ● Wi-Fi & LTE graphic signal strength
    ● Editable login page of captive portal for hot-spot application
    ● USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware*
    ● ITxPT compliant w/ ignition function*
  • Poorten & Interfaces
    ApparaatRouters
  • Generieke data
    FabrikantLantech
    Garantie24 Maanden
