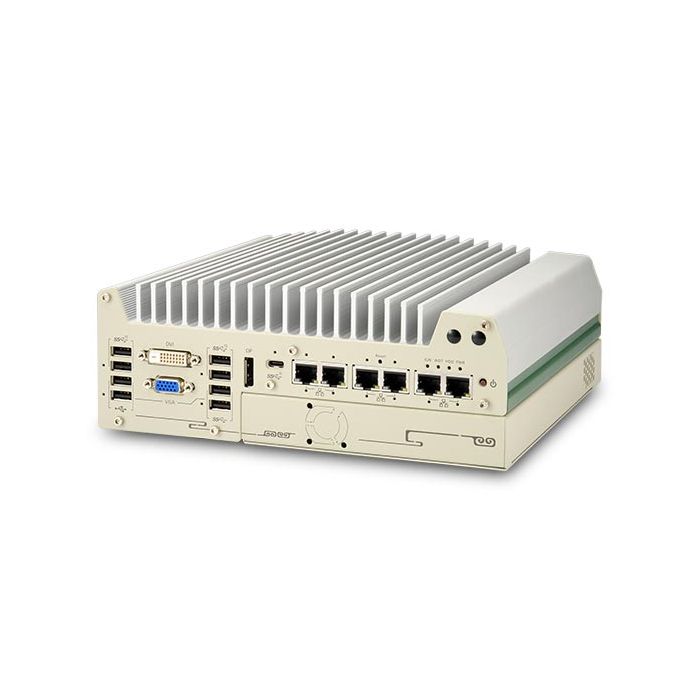

Intel 12/13th-Gen i7/i5/i3 fanless PC 6xGbE, USB 3.2 Type C

SKU:
NUVO-9006E
Fabrikant:
Neousys
  • Processor : Intel Core
Intel 12th-Gen i7/i5/i3 fanless PC 6xGbE, USB 3.2 Type C
Op voorraad, voor 14:00 uur besteld, volgende dag geleverd.
Details
Specificaties
Downloads
Introduction
Nuvo-9000 series is Neousys' new rugged embedded computer based on Intel® 12th-Gen Alder Lake platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core™ desktop processor comes with up to 16 cores and 24 threads and presents an incredible boost of computational performance. Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.

Nuvo-9000 series inherits Neousys' patented expansion Cassette design to provide great versatility by allowing additional installation of PCIe or PCI add-on cards. There are three expansion Cassette options available for Nuvo-9000 series, the Nuvo-9000E features a single x16 Gen3 PCIe slot; Nuvo-9000DE has dual x16 PCIe slots, and Nuvo-9000P has a single PCI slot. For users who need more flexible storage, Nuvo-9000LP has a 2.5" HDD tray instead of an expansion Cassette to support a hotswappable 2.5" HDD/SSD.

I/O functions are also comprehensively enhanced. In addition to six gigabit Ethernet ports with PoE+ PSE option, Nuvo-9000 series features a USB 3.2 Gen2x2 type-C port offering 20 Gbps bandwidth for data exchange with external devices, plus another six USB 3.2 Gen2x1 type-A ports for USB3 camera connectivity. It also has an upgraded M.2 Gen4x4 slot to support the latest NVMe SSD to boost disk read/write speed up to 7000 MB/s. For unfulfilled I/O requirements, users can utilize the expansion Cassette to add on function-specific PCIe/ PCI card, the proprietary MezIO interface, and internal mini-PCIe/M.2 interfaces.

With its field-proven thermal design, significant CPU and I/O upgrades, and multiple expansion methods, the Neousys Nuvo-9000 series fits your need for ruggedness, performance, and versatility for a variety of applications.
Specificaties
  • Processor
    ProcessorIntel Core
    Processor serieAlder Lake
    Socket typeLGA1700
    Basisfrequentie2.40 GHz
    Aantal cores16
    TDP65W
    chipsetQ670E
  • Geheugen
    GeheugentypeDDR5
    Geheugenslots2
  • Video
    AansluitingenVGA
    1x VGA, supporting 1920 x 1200 resolution

    DVI-D
    1x DVI-D, supporting 1920 x 1200 resolution

    DisplayPort
    1x DisplayPort, supporting 4096 x 2304 resolution
    ChipsetIntegrated Intel® UHD Graphics 770 (32EU)
  • Belangrijkste eigenschappen
    Kenmerken● Supports Intel® 12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
    ● Patented Cassette for PCI/PCIe add-on card accommodation
    ● Rugged, -25°C to 70°C fanless operation
    ● Up to 6x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
    ● 1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 Gen2x1 type-A ports
    ● Supports M.2 Gen4x4 NVMe and 2x SATA ports
    ● MezIO™ interface for easy function expansion
    ● VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsPCI Express
    1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette

    Mini PCI Express
    1x full-size mini PCI Express socket

    M.2
    1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module

    Expandable I/O
    1x MezIO™ expansion port for Neousys MezIO™ modules
  • Poorten & Interfaces
    Seriele poorten4
    USB 2.0 poorten2
    Audio interface1x 3.5 mm jack for mic-in and speaker-out
    Externe I/OLAN
    5x 2.5G Ethernet by I225
    1x Gigabit Ethernet by I219

    Serial
    2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)
    2x RS-232 ports (COM3/ COM4)

    USB
    1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock
    4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors
    2x USB 3.2 Gen 1x1 (5 Gbps) ports in type-A connectors
    2x USB 2.0 ports
  • Opslag
    Opslag interfaceSata
    2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1

    M.2
    1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD
  • Mechanische specificaties
    Afmetingen240 mm (W) x 225 mm (D) x 90 mm (H)
    MontageWall-mount (standard) or DIN-rail mount (optional)
  • Product eigenschappen
    Gewicht4.4 kg
  • Electrische specificaties
    Input range1x 3-pin pluggable terminal block for 8 to 48V DC input
  • Omgeving specificatie
    Opslag temperatuur-40°C/+85°C
  • Generieke data
    FabrikantNeousys
    MarktsegmentAutomation, IoT
    Garantie24 Maanden
