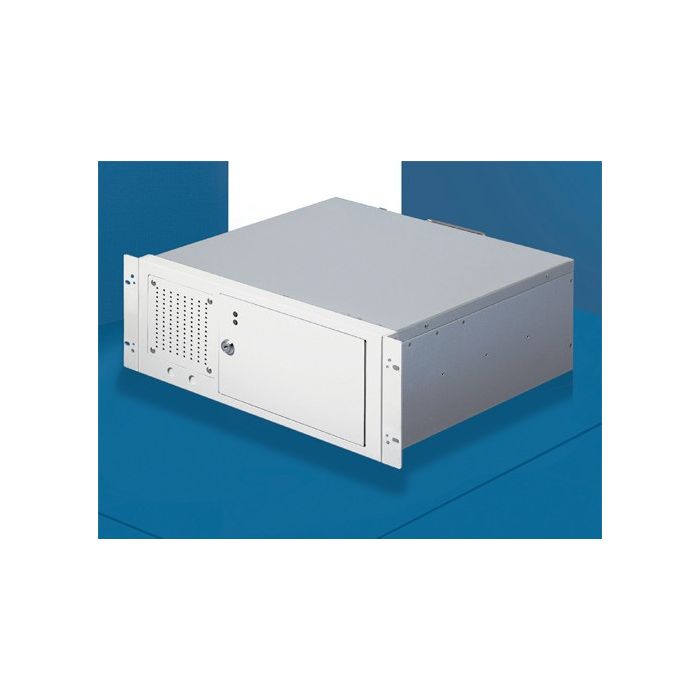

IPC 4HE/19"/440mm sheet steel

SKU:
3659900
Fabrikant:
HEITEC AG
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Product eigenschappen
    Type productIndustrial PC chassis
    Product groepATX 4 U, tin
    Breedte mm482,6 mm (19")
    Versie442,5 mm total depth
    Gat voor handvatNee
    Algemene productinformatieTechnical specifications:
      • 482.6 mm (19") rack-mount system for the installation of ATX/Mini-ATX or Micro-ATX boards
      • and 3 x 5 1/2" and 1 x 3 1/2" drives.
      • Width: 482.6 mm (19")
      • Height: 4 U (177.0 mm)
      • Side panels: 174.0 mm
      • Total depth: 442.5 mm
      • Suitable for mounting on slide rails.

      Material/surface finish:
        • Case, covers, front panels
        • 1,2 mm sheet steel
        • spray-finished in RAL 7035
        • unpainted contact poits

        Standards:
        • Complies with IEC 60 297-3
        • ATX specification 2.01

        Special designs available on request
        Supply includes:
        • Rack-mount system 4 U, including drive holder
        • 1 x 120 mm fan and filter mat, exchangeable from the front
        • ATX power pack 300 W
        • Front door, vertically hinged, lockable
        • Front panel with ventilation holes and filter mat
        • LED displays, speakers, Reset switch, on/off switch
        • Cover
        • Two 482.6 mm (19˝) flanges
        • Drive holder for 4 x 3½˝ hard drives
        Gewicht14,6 kg
      • Generieke data
        FabrikantHEITEC AG
        Ean code4250558900819
