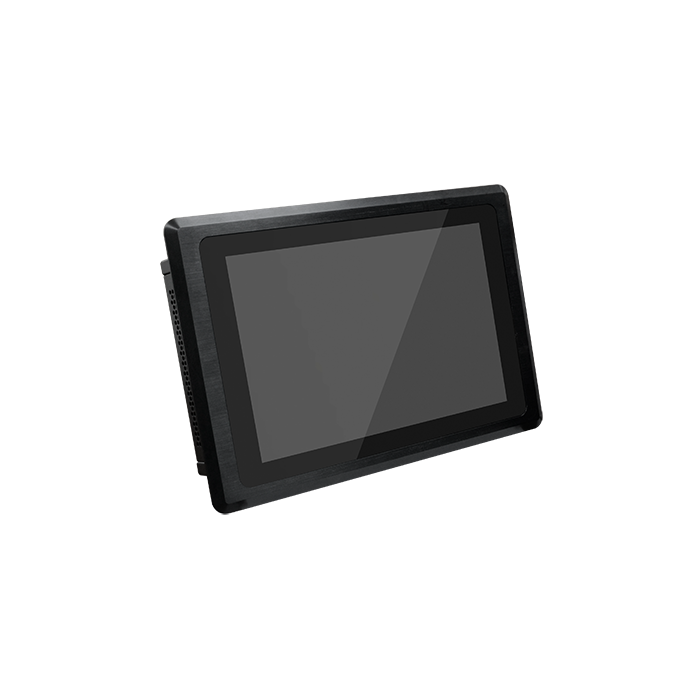

KS101P-EHLW36-X25: x6425E, 10.1" Fanless PPC, PCap, 9-36VDC
-
Marktsegment :
Automation, Digital signage, IoT
-
Scherm Afmeting :
10.1"
-
Touchscreen type :
Capacitive Touch
-
Processor :
Intel Atom
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
-
Scherm
| Scherm Afmeting | 10.1" |
|---|
| Touchscreen type | Capacitive Touch |
|---|
| schermverlichting | 500 (cd/m2) |
|---|
| Contrast Ratio | 16 : 10 |
|---|
| Helderheid (cd/m2) | 500 |
|---|
| Max screen resolution | 1280 x 800 |
|---|
-
Processor
| Processor | Intel Atom |
|---|
| Processor serie | Elkhart Lake |
|---|
| Socket type | BGA1493 |
|---|
| Basisfrequentie | 2.0GHz |
|---|
| Aantal cores | 4 |
|---|
| TDP | 12W |
|---|
-
Geheugen
| Geheugentype | DDR4 |
|---|
| Geheugenslots | 1 |
|---|
| Max geheugen | 32GB |
|---|
-
Video
| Aansluitingen | DisplayPort
1 x DP++
DP++: resolution up to 4096x2304 @ 60Hz
VGA
1 x VGA
VGA: resolution up to 1920x1200 @ 60Hz |
|---|
| Chipset | Intel® HD Graphics |
|---|
-
Uitbreidingsmogelijkheden
| Uitbreiding slots | PCIe
1 x Mini-PCIe (PCIe/USB)
M.2
1 x M.2 2230 E Key (PCIe x1/USB2.0) |
|---|
-
Poorten & Interfaces
| LAN poorten | 2 |
|---|
| Seriele poorten | 2 |
|---|
| USB 3.x poorten | 4 |
|---|
| Audio interface | 1 x line-out |
|---|
| Externe I/O | Lan
2 x GbE (RJ-45)
Serial
1 x RS232/422/485
1 x RS232
USB
2 x USB 3.1 Gen2
2 x USB 2.0
|
|---|
-
Opslag
| Opslag interface | 2,5"
1 x 2.5" SATA 3.0 Drive Bay |
|---|
-
Mechanische specificaties
| Type behuizing | IP65 Front Panel Protection |
|---|
| Afmetingen | 294 x 193 x 48mm |
|---|
| Montage | VESA mount 100 x 100 |
|---|
-
Product eigenschappen
-
Electrische specificaties
-
Omgeving specificatie
| Opslag temperatuur | -30/+80°C |
|---|
| Operating Temperatuur | 0°C/+60°C |
|---|
| Relatieve luchtvochtigheid | 10 to 95% @ 40°C, non-condensing |
|---|
-
Certificeringen
| certificaten | CE, FCC, RoHS, UKCA |
|---|
-
Generieke data
| Fabrikant | DFI |
|---|
| Marktsegment | Automation, Digital signage, IoT |
|---|
|
