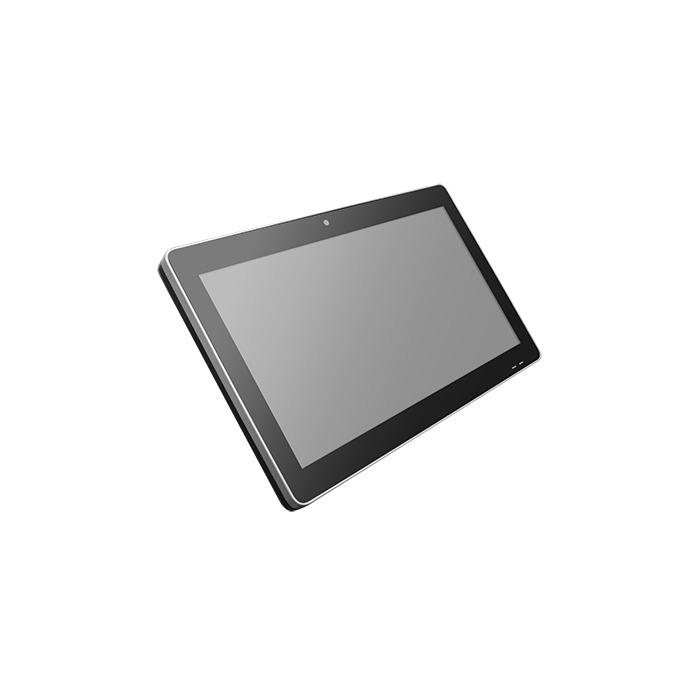

KS156P-EHLW36: x6425E, 15.6" Fanless PPC, Pcap, 9-36VDC
-
Marktsegment :
Automation, Digital signage, IoT
-
Scherm Afmeting :
15,6"
-
Touchscreen type :
Capacitive Touch
-
Processor :
Intel Atom
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
-
Scherm
| Scherm Afmeting | 15,6" |
|---|
| Touchscreen type | Capacitive Touch |
|---|
| schermverlichting | 400 (cd/m2) |
|---|
| Contrast Ratio | 16 : 9 |
|---|
| Helderheid (cd/m2) | 400 |
|---|
| Max screen resolution | 1920 x 1080 |
|---|
-
Processor
| Processor | Intel Atom |
|---|
| Processor serie | Elkhart Lake |
|---|
| Socket type | BGA1493 |
|---|
| Basisfrequentie | 2.0GHz |
|---|
| Aantal cores | 4 |
|---|
| TDP | 12w |
|---|
-
Geheugen
| Geheugentype | DDR4 |
|---|
| Geheugenslots | 2 |
|---|
| Max geheugen | 32GB |
|---|
-
Video
| Aansluitingen | DisplayPort
1 x DP++
DP++: resolution up to 4096x2160 @ 60Hz
HDMI
1 x HDMI 2.0
HDMI: resolution up to 4096x2160 @ 24Hz |
|---|
| Chipset | Intel® UHD Graphics |
|---|
-
Uitbreidingsmogelijkheden
| Uitbreiding slots | M.2
1 x M.2 2230 E Key (PCIe x1/USB2.0)
SIM
1 x Nano SIM socket (connected to M.2 B key) |
|---|
-
Poorten & Interfaces
| LAN poorten | 2 |
|---|
| Seriele poorten | 4 |
|---|
| USB 3.x poorten | 4 |
|---|
| Audio interface | 1 x line-out |
|---|
| Externe I/O | Lan
2 x 2.5GHz RJ45
Serial
2 x RS232/422/485
2 x RS232
USB
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1 |
|---|
-
Opslag
| Opslag interface | M.2
1 x M.2 2242/2280/3052 B Key (PCIe x1/SATA/USB2.0)
2,5"
1 x 2.5" SATA 3.0 Drive Bay |
|---|
-
Mechanische specificaties
| Type behuizing | IP65 Front Panel Protection without power button |
|---|
| Afmetingen | 392 x 256 x 51.7 mm |
|---|
| Montage | VESA mount 100 x 100 |
|---|
-
Product eigenschappen
-
Electrische specificaties
-
Omgeving specificatie
| Opslag temperatuur | -30/+80°C |
|---|
| Operating Temperatuur | 0°C/+50°C |
|---|
| Relatieve luchtvochtigheid | 10 to 95% @ 40°C, non-condensing |
|---|
-
Certificeringen
| certificaten | CE/FCC Class A/RoHS/UKCA |
|---|
-
Generieke data
| Fabrikant | DFI |
|---|
| Marktsegment | Automation, Digital signage, IoT |
|---|
|
