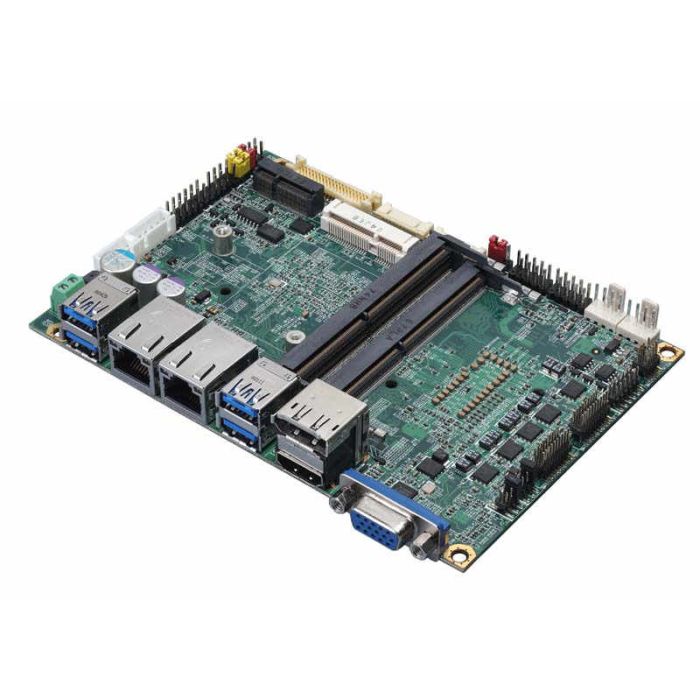

LE-37M5: 3,5"MB Intel i5-8400H, DVI,HDMI,VGA,KVDS, DP
-
Processor :
Intel Core
-
Max geheugen :
32GB
-
Type SBC :
3,5"
-
Operating Temperatuur :
0°C/+60°C
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
-
Processor
| Processor | Intel Core |
|---|
| Processor serie | Coffee lake |
|---|
| Basisfrequentie | 2,50 GHz |
|---|
| Aantal cores | 4 |
|---|
| chipset | Q370 |
|---|
-
Geheugen
| Geheugentype | DDR4 |
|---|
| Geheugenslots | 2 |
|---|
| Max geheugen | 32GB |
|---|
-
Video
| Aansluitingen | • 1x DisplayPort (optional)
• 1x HDMI
• 1x VGA
• 1x LVDS (Note1)
|
|---|
| Chipset | Intel® UHD Graphics |
|---|
-
Belangrijkste eigenschappen
| Kenmerken | • Onboard Intel® 8th Gen Intel® Core™ H-series Processor
• 2 x DDR4 SO-DIMM 2666 MHz up to 32GB
• Integrated VGA , DisplayPort, HDMI, LVDS for Triple display support
• 1x Intel® Gigabit PHY LAN, 1x Intel® Gigabit LAN
• 1x MiniPCIe (support mSATA), 1x M.2 (Key E)
• 2x SATA3, 4 x USB2.0, 4 x USB3.1 Gen2, 4 x COM
• 1x GPIO, 1x PS/2
• Support Watchdog Timer
• Support 4K resolution
• DC input 9~35V
|
|---|
-
Uitbreidingsmogelijkheden
| Uitbreiding slots | • 1 x MiniPCIe(support mSATA)
• 1 x M.2 (Key E) for Wi-Fi and Bluetooth 2230mm
|
|---|
-
Poorten & Interfaces
| serial ATA interface | 2 x SATA3 |
|---|
| Watchdog timer | Generates a system reset with internal timer for1min/s ~ 255min/s |
|---|
| LAN poorten | 2 |
|---|
| Audio interface | Realtek ALC262 HD Audio |
|---|
| Externe I/O | • 1x DisplayPort (optional)
• 1x HDMI
• 1x VGA
• 4x USB3.1 Gen2
• 2x LAN
|
|---|
| Interne I/O | 2x SATA3
4x USB2.0
2x RS232
2x RS232/485/422
1x LVDS
1x LCD inverter
1x GPIO
1x Audio
1x PS/2,
1x SMBus
|
|---|
-
Mechanische specificaties
| Type SBC | 3,5" |
|---|
| Afmetingen | 146mm x 101mm (L x W) |
|---|
-
Electrische specificaties
| Input range | DC input 9~35V |
|---|
-
Omgeving specificatie
| Opslag temperatuur | • Storage within-20°C~80°C |
|---|
| Operating Temperatuur | 0°C/+60°C |
|---|
| Relatieve luchtvochtigheid | • 10%~90%,non-condensing |
|---|
-
Generieke data
| Fabrikant | Commell |
|---|
| Marktsegment | Automation |
|---|
| Garantie | 24 Maanden |
|---|
|
