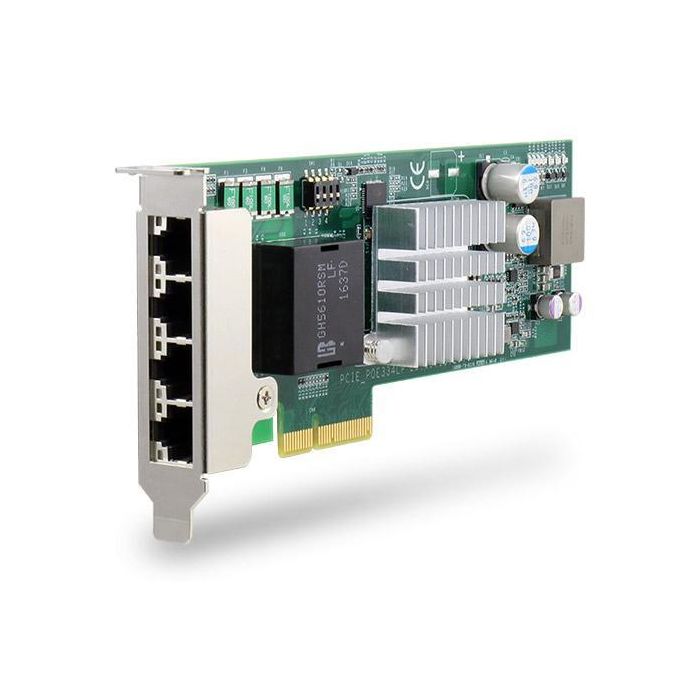

Low-profile 4-port Gigabit 802.3at PoE+ card surgeprotection

SKU:

PCIE-POE334LP

Fabrikant:

Neousys

Neem contact met ons op voor de levertijd

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken	Low-profile form-factor for installation in 2U server 4x ports by Intel® I350-AM4 server-grade GigE controller Compliant with IEEE 802.3at to deliver 25.5 W each port IEC 6100-4-5 Class 2 surge immunity Supports 9.5 kB jumbo frame, teaming and IEEE 1588 Per-port PoE+ power on/off control by software API

Poorten & Interfaces

PoE beschikbaar Ja
Aantal poorten 4
Type I/O Lan (ethernet)
Mechanische specificaties

Bus Type PCIe
Afmetingen 167.7 mm (W) x 68.9 mm (H)
Omgeving specificatie

Operating Temperatuur 0°C/+55°C

Certificeringen

standaarden	EMC CE Class A, according to EN 55022, EN55032 & EN 55024 FCC Class A, according to FCC Part 15, Subpart B EMS IEC 61000-4-x Class/Level 2

Downloads

datasheet	neousys-pcie-poe334lp-datasheet.pdf

€ 338,80 € 280,00
