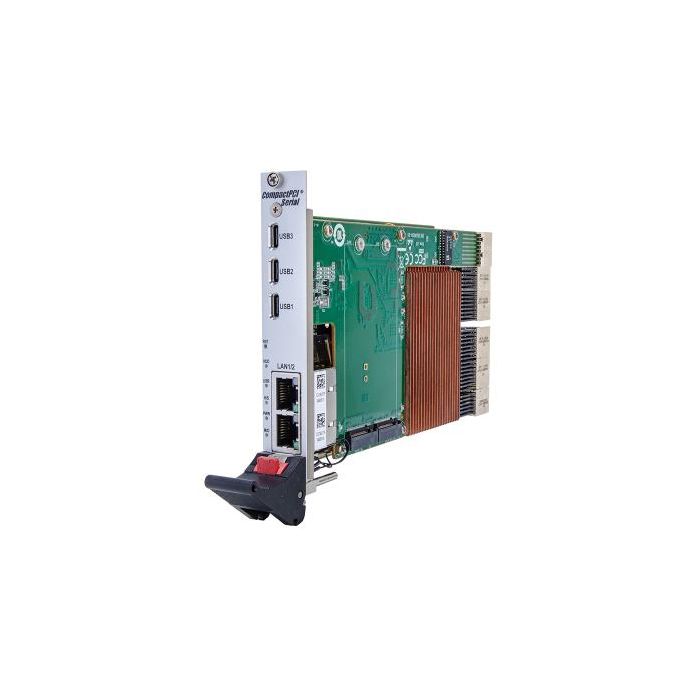

MIC-330V2 Core i7-11850HE W/O So-dimm
-
SKU :
MIC-330V2-B1S1
-
Fabrikant :
Advantech
-
Processor :
Intel Core
-
Max geheugen :
64GB
-
Operating Temperatuur :
-40°C/+70°C
MIC-330V2 Core i7-11850HE W/O So-dimm
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
-
Processor
| Processor | Intel Core |
|---|
| Processor serie | Tiger Lake |
|---|
| Socket type | BGA1787 |
|---|
| Basisfrequentie | 2.60GHz |
|---|
| Aantal cores | 8 |
|---|
| TDP | 45W |
|---|
| chipset | RM590E |
|---|
-
Geheugen
| Geheugentype | DDR4 SO-Dimm |
|---|
| Geheugenslots | 1 |
|---|
| Max geheugen | 64GB |
|---|
-
Video
| Aansluitingen | 2x USB-C DP port |
|---|
| Chipset | Intel® UHD Graphics for 11th Gen Intel® Processors |
|---|
-
Uitbreidingsmogelijkheden
| Uitbreiding slots | CompactPCI Serial, Backplane Resources
PCIe
2x PCIe3.0 x8
4x PCIe3.0 x4
2x PCIe3.0 x1
Sata
2x SATA 3.0
USB
4x USB 3.2 @ 5 Gbps speed
8x USB 2.0 @ 480 MHz speed
Lan
2x GbE to P6 on M-1 & M-2 Card, reserved
4x 2.5 GbE to P6 on customizable M-3 Card
|
|---|
-
Poorten & Interfaces
| LAN poorten | 2 |
|---|
| USB 3.x poorten | 3 |
|---|
| Externe I/O | Lan
2x 2.5 Gbps RJ45 ports
USB
3x 10 Gbps USB Type-C ports
|
|---|
-
Opslag
| Opslag interface | M.2
2x channels onboard 2280 M.2 type module (M-Key socket) |
|---|
-
Mechanische specificaties
| Afmetingen | 4HP or 8HP, 160.00 mm x 100.00 mm |
|---|
-
Electrische specificaties
-
Omgeving specificatie
| Opslag temperatuur | -40°C/+85°C |
|---|
| Operating Temperatuur | -40°C/+70°C |
|---|
| Relatieve luchtvochtigheid | 95% @ 40°C, non-condensing |
|---|
-
Certificeringen
| standaarden | Environment
Vibration
2 Grms, random (5 Hz ~ 500 Hz)
Shock
10 G, 11 ms, each axis three times, operation mode |
|---|
| certificaten | FCC Class A, CE, FCC, UKCA, RoHS |
|---|
-
Generieke data
| Fabrikant | Advantech |
|---|
| Marktsegment | Automation |
|---|
|
