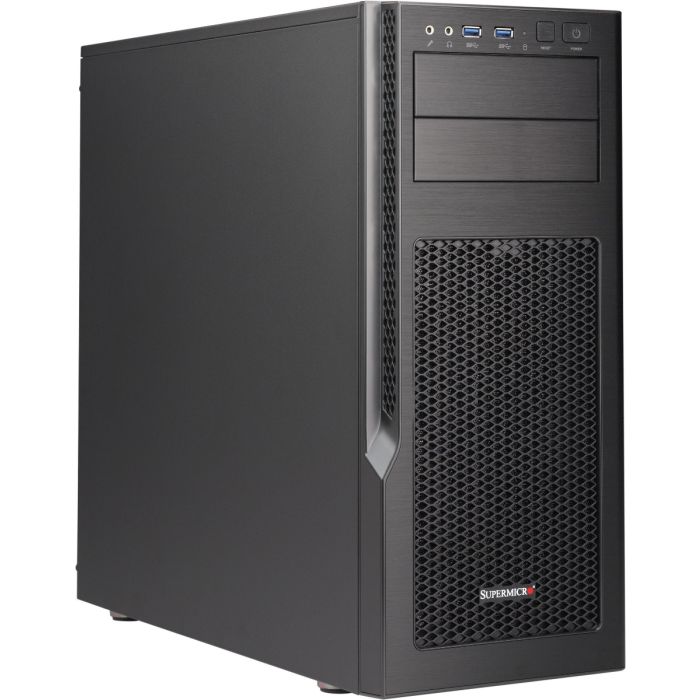

Mid-Tower ATX Xeon E 750W
-
Processor :
Intel Core, Intel Xeon
-
Max geheugen :
64GB
-
Operating Temperatuur :
0°C/+35°C
Mid-Tower ATX Xeon E 750W
Neem contact met ons op voor de levertijd
Configureer dit systeem
Details
Specificaties
Downloads
Specificaties
-
Processor
| Processor | Intel Core, Intel Xeon |
|---|
| Processor serie | Coffee lake |
|---|
| Socket type | LGA1151 |
|---|
| Aantal sockets | Single |
|---|
| Basisfrequentie | 3.40 GHz |
|---|
| Aantal cores | 6 |
|---|
| TDP | 80W |
|---|
| chipset | C246 |
|---|
-
Geheugen
| Geheugentype | DDR4 |
|---|
| Geheugenslots | 4 |
|---|
| Max geheugen | 64GB |
|---|
-
Video
| Aansluitingen | 1x HDMI
1x DVI - D
1x DP (DisplayPort)
1x VGA
|
|---|
| Chipset | GPU
Intel® UHD Graphics 630
IPMI
ASPEED AST2500 BMC |
|---|
-
Uitbreidingsmogelijkheden
| Uitbreiding slots | PCI-E
1x PCI-E 3.0 x4,
1x PCI-E 3.0 x1,
2x PCI-Ex16 slots are running at NA/16, or 8/8
PCI
1x 5V PCI 32bit |
|---|
-
Poorten & Interfaces
| LAN poorten | 2 |
|---|
| Seriele poorten | 1 |
|---|
| USB 2.0 poorten | 2 |
|---|
| USB 3.x poorten | 8 |
|---|
| Audio interface | 7.1 ALC 888S HD Audio |
|---|
| Externe I/O | LAN
1x LAN with Intel® Ethernet Controller I210-AT Shared with IPM
1x LAN with Intel® PHY I219LM LAN controller
USB
2x USB 3.1 Gen1
2x USB 3.1 Gen2 (1x Rear Type A + 1x Rear Type C)
|
|---|
| Interne I/O | Serial
1x COM Port by header
USB
2x USB 3.1 Gen1 by header
2x USB 3.1 Gen2 (1x Type A + 1x by header)
|
|---|
-
Opslag
| RAID | 0, 1, 5, 10 |
|---|
| Opslag interface | Sata
8x Sata 3.0 (Plase for 4x 2.5" and 6x 3.5" in Chassi)
with RAID 0,1,5,10
M.2
2x M.2 PCI-E 3.0 x4
2242/2260/2280/22110 M-Key
(M.2#1~2 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2) |
|---|
-
Mechanische specificaties
| Type behuizing | Tower |
|---|
| Afmetingen | 140 (L) x 150 (W) x 86 mm (H) |
|---|
-
Product eigenschappen
-
Electrische specificaties
-
Omgeving specificatie
| Opslag temperatuur | -40°C/+70°C |
|---|
| Operating Temperatuur | 0°C/+35°C |
|---|
| Relatieve luchtvochtigheid | 8% - 90% (non-condensing) |
|---|
-
Certificeringen
| certificaten | Power Supply Safety / EMC
BSMI
CCC
FCC class B
UL/CUL
|
|---|
-
Generieke data
| Fabrikant | Supermicro |
|---|
| Garantie | 24 Maanden |
|---|
|
