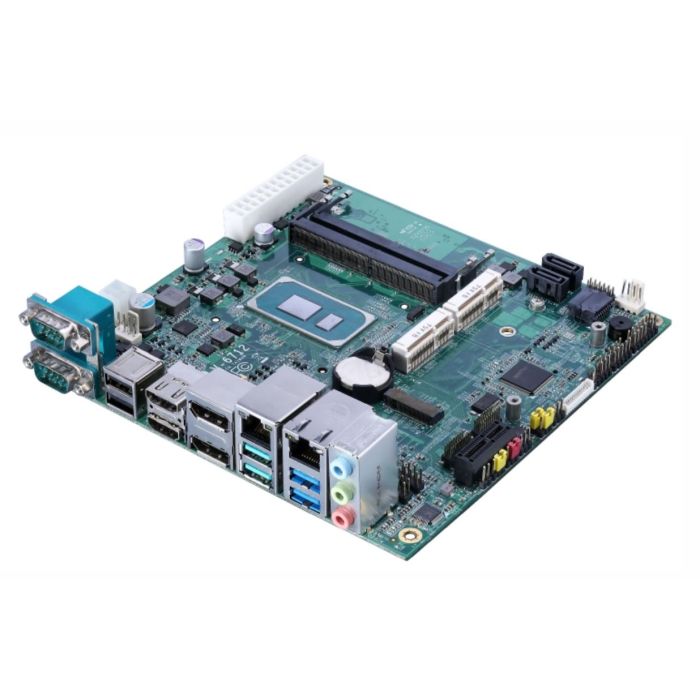

● Onboard Intel® Tiger Lake UP3 Processor
● 2 x DDR4 SO-DIMM 3200 MHz up to 64GB
● Integrated DisplayPort, HDMI, LVDS for four display support
● 1 x Intel® Gigabit PHY LAN, 1 x Intel® 2.5 Gigabit LAN
● 2 x MiniPCIe, one support mSATA
● 1 x M.2 2280 KEY M support PCIe Gen4
● 2 x SATA3, 2 x USB2.0, 4 x USB3.2 Gen2, 6 x COM
● 1 x GPIO, 1 x PS/2, 1 x PCIe x1 Slot,
● Support Watchdog Timer
Uitbreidingsmogelijkheden
Uitbreiding slots
Mini-PCIe
2x MiniPCIe, one support mSATA
Poorten & Interfaces
LAN poorten
2
Seriele poorten
4
USB 2.0 poorten
2
USB 3.x poorten
2
Audio interface
Realtek ALC262 HD Audio
Externe I/O
LAN
1x Intel® I219-LM Gigabit PHY LAN
1x Intel® I225-LM Gigabit LAN (up to 2.5GbE)
Serial
2x RS232/422/485
USB
4x USB3.2 Gen2
2x USB2.0
Interne I/O
Serial
4 x RS232
USB
2x USB2.0
PS/2
1x PS/2
Opslag
Opslag interface
Sata
2x SATA3
1x MiniPCIe, one support mSATA
M.2
1x M.2 2280 KEY M support PCIe Gen4
Mechanische specificaties
Afmetingen
Mini-ITX
Electrische specificaties
Input range
Standard 24-pin ATX power supply or 4-pin DC 9~35V
