miniITX Intel 12th/13th/14th Gen Q670E 2xGLAN 6xUSB 2xCOM

SKU:
LV-6714
Fabrikant:
Commell
  • Processor : Intel Core
  • Max geheugen : 64GB
  • Type SBC : Mini ITX
  • Operating Temperatuur : 0°C/+60°C
miniITX Intel 12th/13th/14th Gen Q670E 2xGLAN 6xUSB 2xCOM
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads

Introduction

LV-6714

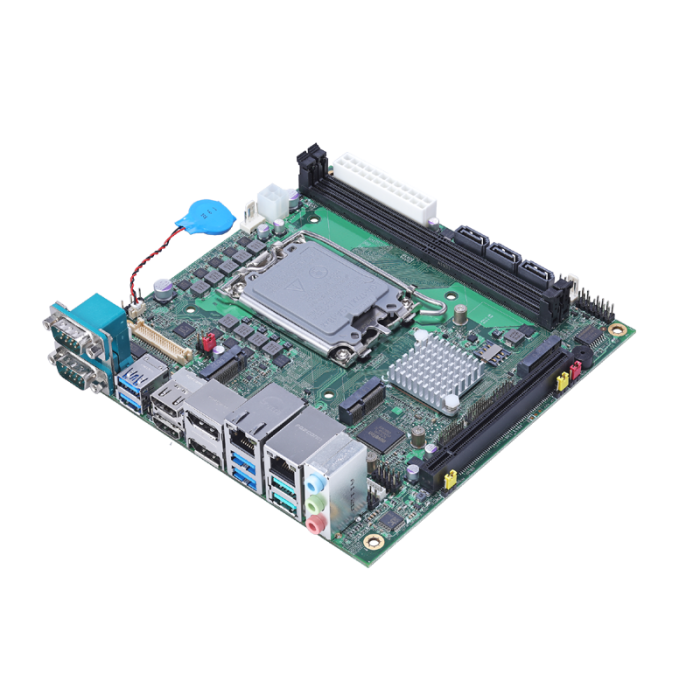

LV-6714 is a Mini-ITX Motherboard which supports 12th & 13th & 14th Gen Desktop Processors, integrated DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN,USB3.2 Gen2, SATA3 with AHCI function for a system.

New feature for Alder Lake-S(12th) & Raptor Lake-S(13th) & Raptor Lake-S Refresh(14th Gen)
12th & 13th & 14th Gen Desktop Processors are based on the Intel 7 SuperFin process, and offer long-life availability. i9-12900 with 8 P-cores and 8 E-cores. P-cores can help you handle heavy tasks, and E-cores run background tasks efficiently to save power. Support DDR5 Memory up to 4800 and PCIe gen 5 x16 Slot.

All in One multimedia solution
The board provides one M.2 3042 slot (support SATA), one M.2 2230 slot, one M.2 2280 slot (PCIe Gen4), and one PCIe x16 slot (PCIe Gen5 X16).

Alder Lake support Windows10 version 21H2 64bit and Linux 5.18
Intel recommends using Windows 10 version 21H2 64bit. It may lose some drivers if you use other Windows version.
Specificaties
  • Processor
    ProcessorIntel Core
    Processor serieAlder Lake, Raptor Lake
    Socket typeLGA1700
    TDPup to 65W
    chipsetQ670E
  • Geheugen
    GeheugentypeDDR5
    Geheugenslots2
    Max geheugen64GB
  • Video
    AansluitingenDisplayPort
    2x DisplayPort

    HDMI
    2x HDMI

    LVDS
    1x LVDS internal
    ChipsetIntel® UHD Graphics 770 / 730 / 710
  • Belangrijkste eigenschappen
    KenmerkenFeatures
    • Support 12th & 13th & 14th Gen
    • Intel® Core™ Desktop Processors
    • 2x DDR5 DIMM 4800 MHz up to 64GB
    • Integrated DisplayPort, HDMI, LVDS for four display support
    • 1x Intel® Gigabit LAN PHY, 1 x Intel® 2.5 Gigabit LAN
    • 3x SATA3, 2 x USB2.0, 6 x COM, 1 x SIM Slot, 6 x USB3.2 Gen2
    • 1x M.2 2230 Key E for Wi-Fi and Bluetooth
    • 1x M.2 2280 Key M support PCIe Gen4 or SATA
    • 1x M.2 3042 Key B for 4G / 5G module or SATA
    • 1x PCIe x16 Slot support PCIe Gen5
    • Support Watchdog Timer, 4K resolution
    • Standard 24-pin ATX power supply and 4-pin 12V
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsPCI Express
    1x PCIe X16 slot support PCIe Gen5

    M.2
    x M.2 2230 Key E for Wi-Fi and Bluetooth
    1 x M.2 2280 Key M support PCIe Gen4 or SATA
    1 x M.2 3042 Key B for 4G / 5G module or SATA

    SIM Slot
    1x SIM Slot internal
  • Poorten & Interfaces
    GPIO Interface1x GPIO
    serial ATA interface3x SATA3
    Watchdog timerGenerates a system reset with internal timer for 1 min/s ~ 255 min/s
    LAN poorten2
    Seriele poorten6
    USB 2.0 poorten2
    USB 3.x poorten6
    Audio interfaceRealtek ALC888S HD Audio
    Externe I/OEthernet Ports
    1x Intel® I219-LM Gigabit LAN PHY(Support iAMT16.0)
    1 x Intel® I226-LM Gigabit LAN

    USB
    6x USB3.2 Gen2

    Serial Port
    2x RS-232/422/485
    Interne I/OUSB
    2x USB2.0

    Serial
    4x RS-232

    SMBus
    1x SMBus

    LCD Connector
    1x LCD inverter connector

    GPIO
    1x GPIO by header SIM Slot
    1x SIM Slot
  • Opslag
    Opslag interfaceSATA
    3x SATA3

    M.2
    1x M.2 2280 Key M support PCIe Gen4 or SATA
    1x M.2 3042 Key B for 4G / 5G module or SATA
    Note: M.2 slots are identical to expansion slots
  • Mechanische specificaties
    Type SBCMini ITX
    Afmetingen170mm x 170mm (L x W)
  • Electrische specificaties
    Input rangeStandard 24-pin ATX power supply and 4-pin 12V
  • Omgeving specificatie
    Opslag temperatuur-20°C/+80°C
    Operating Temperatuur0°C/+60°C
    Relatieve luchtvochtigheid10%~90%, non-condensing
  • Generieke data
    FabrikantCommell
    MarktsegmentAutomation
    Garantie18 Maanden
