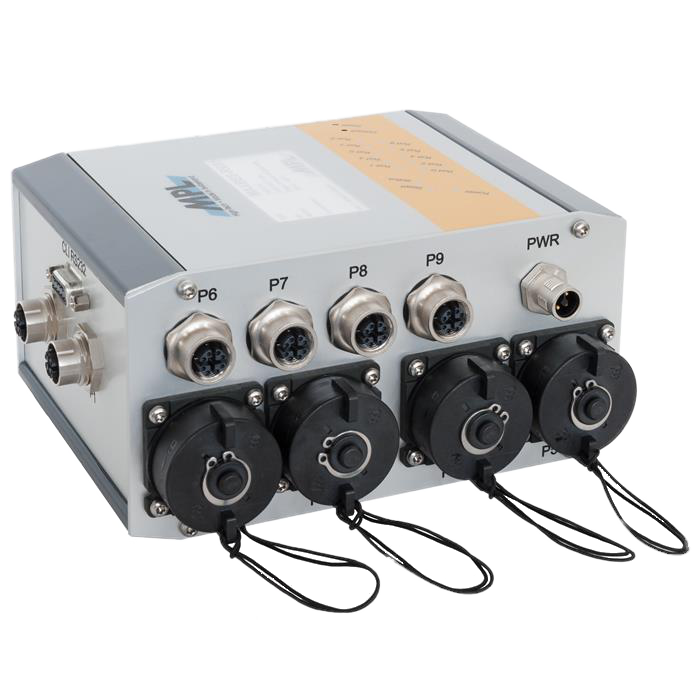

Mngt Gigabit Switch MAGBES62-2 Flange mnt 8prt RJ45 5-36VDC

SKU:
MAGBES-F211R
Fabrikant:
MPL
  • Fabrikant : MPL
  • Apparaat : Managed Switch
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Belangrijkste eigenschappen
    KenmerkenFully manageable over Web Interface or Telnet
    Fanless operation
    Copper or mixed Copper/Fiber versions
    DIN-Rail / Flange mount
    Wide input 5-36VDC
    Versions for -40°C to +85°C environment
  • Poorten & Interfaces
    ApparaatManaged Switch
    LAN poorten8
    Jumbo frameup to 10k Byte
  • Electrische specificaties
    Input range5VDC - 36VDC Input range
  • Omgeving specificatie
    Opslag temperatuur-45°C up to +85°C
    Operating Temperatuur-20°C/+60°C
    Relatieve luchtvochtigheid5% to 95% non condensing
  • Certificeringen
    standaarden

    The MAGBES is designed to meet or even exceed the most common standard Particular references are:
    EMC                                 EN 55022, EN 55024, EN 61000, MIL-STD-461E
    Shock & Vibration           EN 60068
    Environmental & Safety  EN 50155, MIL-STD-810-F, EN 60601, EN 60950
    Approval List                   CE, IEC 60945, IACS E10
    The MAGBES family has been successfully tested according EN50155, MIL-STD-810-G as well as CE marking

  • Generieke data
    FabrikantMPL
    Garantie36 Maanden
    Bestelopties

    Magbes-F211R 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 8 ports on RJ45 with a Standard housing (inkl. MAGBES 62-2), Flange mount Magbes-D211R 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 8 ports on RJ45 with a Standard housing (inkl. MAGBES 62-1), DIN-Rail mount Magbes-F211M 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 8 ports on M12 with a Standard housing (inkl. MAGBES 62-2), Flange mount Magbes-D211M 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 8 ports on M12 with a Standard housing (inkl. MAGBES 62-1), DIN-Rail mount Magbes-F212R 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 6 ports on RJ45 and 2 × fiber ports (2 × SFP cage) with a Standard housing (inkl. MAGBES 62-2), Flange mount The SFP Module is not an integrated part of the module and need to be ordered separately.
    Magbes-D212R 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 6 ports on RJ45 and 2 × fiber ports (2 × SFP cage) with a Standard housing (inkl. MAGBES 62-1), DIN-Rail mount The SFP Module is not an integrated part of the module and need to be ordered separately.
    Magbes-F212M 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 6 ports on M12 and 2 × fiber ports (2 × SFP cage) with a Standard housing (inkl. MAGBES 62-2), Flange mount The SFP Module is not an integrated part of the module and need to be ordered separately.
    Magbes-D212M 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 6 ports on M12 and 2 × fiber ports (2 × SFP cage) with a Standard housing (inkl. MAGBES 62-1), DIN Rail mount The SFP Module is not an integrated part of the module and need to be ordered separately.
    Magbes-F222R 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 4 ports on RJ45 and 4 × fiber ports (4 × SFP cage) with a Standard housing (inkl. MAGBES 62-2), Flange mount The SFP Module is not an integrated part of the module and need to be ordered separately.
    Magbes-D222R 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 4 ports on RJ45 and 4 × fiber ports (4 × SFP cage) with a Standard housing (inkl. MAGBES 62-1), DIN Rail mount The SFP Module is not an integrated part of the module and need to be ordered separately.
    Magbes-F222M 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 4 ports on M12 and 4 × fiber ports (4 × SFP cage) with a Standard housing (inkl. MAGBES 62-2), Flange mount The SFP Module is not an integrated part of the module and need to be ordered separately.
    Magbes-D222M 8 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 4 ports on M12 and 4 × fiber ports (4 × SFP cage) with a Standard housing (inkl. MAGBES 62-1), DIN Rail mount The SFP Module is not an integrated part of the module and need to be ordered separately.
