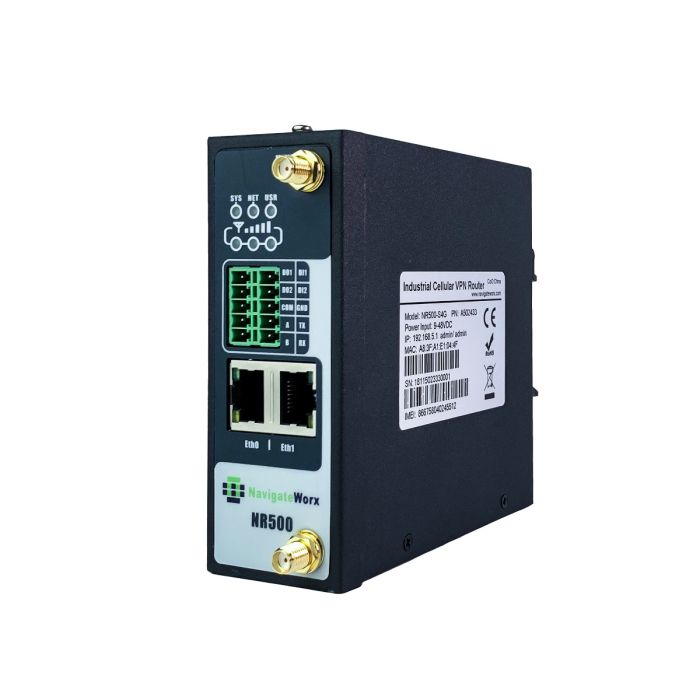

NR500-S4G Dual SIMs, 2xEth Ports, 1xRS232, 1xRS485, 2xDI

SKU:

A502433

Fabrikant:

NavigateWorx

Marktsegment : Automation, Digital signage, IoT, In-vehicle
Apparaat : Gateways
wifi : Without
mobiel netwerk : 2G, 3G, 4G

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

NAVIGATEWORX
NR500 STD

Industrial Cellular VPN Router, Dual SIM Failover, Multiple Industrial Interfacesv

Navigateworx NR500 Std industrial cellular VPN router enables wireless data connectivity over public and private LTE cellular networks at 4G speeds.

NR500 Std router has dual SIM backup, 2 Ethernet ports, RS232 and RS485 interfaces are provided to support Serial to IP communication. GPS is optional based on LTE module capability. Supports 9 to 48 VDC wide range power inputs, designed with reverse-voltage protection mechanism. It is an advanced choice for wireless M2M applications with reliable features for data transmission.

Specificaties

Belangrijkste eigenschappen

Kenmerken

• Wireless Mobile Broadband 2G / 3G / 4G Connection • Industrial designed for harsh environment • Compact metal casing for easy mounting • Support Multiple Encryption tunnels for data encryption • Firewall prevents unsafe and unauthorized access • User-friendly web interface for human interaction • Support Central Device Management Platform • Remote access to SCADA System for Industrial Automation

Poorten & Interfaces

Apparaat	Gateways
mobiel netwerk	2G, 3G, 4G
wifi	Without
GNSS	Yes
LAN poorten	2
Seriele poorten	2
Externe I/O	Lan 1 x WAN + 1 x LAN or 2 x LAN, Auto 10/100 Mbps Serial 1 x RS-232 (3 PIN) + 1 x RS-485 DIGITAL INPUT & OUTPUT 2 x DI + 2 x DO Sim 2 x SIM slots, 1.8V / 3V

Mechanische specificaties

Type behuizing Metal case. IP-30
Afmetingen 106mm x 106mm x 40mm
Montage DIN-rail mounting
Product eigenschappen

Gewicht 300g
Electrische specificaties

Input range 9 to 48 VDC
Power consumption Idle: 100 mA@12 V</br> Data link: 400 mA (peak) @12 V
Omgeving specificatie

Opslag temperatuur -40°C/+75°C
Operating Temperatuur -40°C/+75°C
Relatieve luchtvochtigheid 5% to 95% non-condensing

Certificeringen

certificaten	Approval EMI EN 55032:2012 Class B EMS IEC 61000-4-2 ESD Level 4 IEC 61000-4-3 RS Level 3 IEC 61000-4-4 EFT Level 3 IEC 61000-4-5 Surge Level 3 IEC 61000-4-6 CS Level 3 IEC 61000-4-12 Level 3 Vibration EN50155
