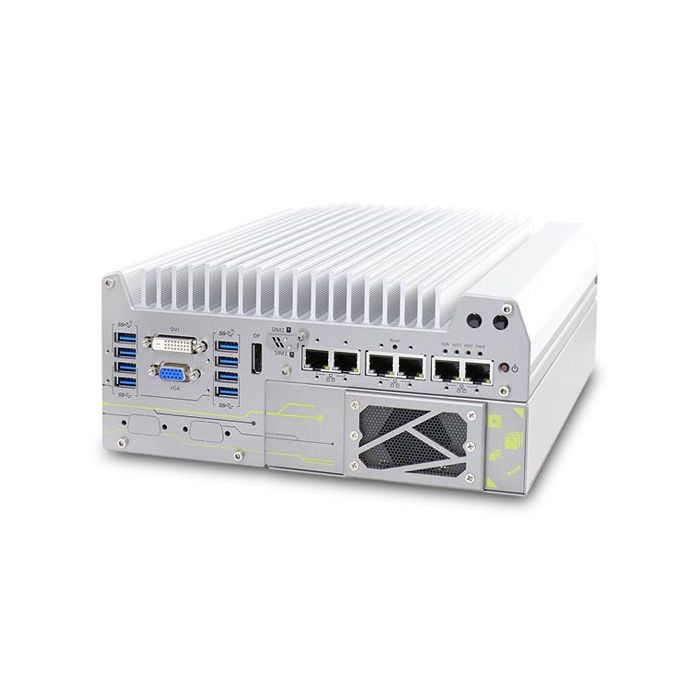

Nuvo-7164GC-PoE Supporting Tesla P4/T4, Intel 9t Gen Core

SKU:
SCA-990944-CF
Fabrikant:
Neousys
  • SKU : SCA-990944-CF
  • Processor : Intel Core
  • Max geheugen : 64GB
  • Operating Temperatuur : -25°C/+50°C
Note: Not recommended for new designs. For new projects we recommend successor Nuvo-11000 or 9000 series. Please contact us for more information.

Door component schaarste geen audio op dit device

Neem contact met ons op voor de levertijd
Configureer dit systeem
Details
Specificaties
Downloads
Specificaties
  • Processor
    ProcessorIntel Core
    Processor serieCoffee lake
    Socket typeLGA1151
    Basisfrequentie3,2 GHz
    Aantal cores6
    TDP35/65W
    chipsetQ370
  • Geheugen
    GeheugentypeDDR4
    Geheugenslots2
    Max geheugen64GB
  • Video
    Aansluitingen• 1x VGA connector, supporting 1920 x 1200 resolution
    • 1x DVI-D connector, supporting 1920 x 1200 resolution
    • 1x DisplayPort connector, supporting 4096 x 2304 resolution
    ChipsetIntegrated Intel® UHD graphics 630
  • Belangrijkste eigenschappen
    Kenmerken• Supports NVIDIA® Tesla P4/ T4 GPU
    • Dedicated heat dissipation for -25°C to 60°C wide-temperature range operation
    • Intel® 9th/ 8th-Gen Core™ hexa-core 35/65W LGA1151 CPU
    • 6x GigE ports, 802.3at PoE+ option available (ports 3~6)
    • M.2 2280 M key NVMe (Gen3 x4) socket for fast storage access
    • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
    • Accommodates two 2.5" SATA HDD/SSD with RAID 0/1 support
    • Supports TPM 2.0 • MezIO™ interface for easy function expansion
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsPCI/PCI Express
    1x PCIe x16 slot@Gen3, 16-lanes PCIe signal in Cassette for installing NVIDIA® Tesla T4 GPU

    Mini PCI Express
    1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)

    M.2
    1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module

    Expandable I/O
    1x MezIO™ expansion port for Neousys MezIO™ modules
  • Poorten & Interfaces
    LAN poorten6
    Seriele poorten4
    Audio interfaceDue to component scarcity, no audio on this device

    Externe I/OUSB
    4x USB 3.1 Gen2 (10 Gbps) ports4x USB 3.1 Gen1 (5 Gbps) ports

    Serial Port
    2x software-programmable RS-232/422/485 ports (COM1/ COM2)
    2x RS-232 ports (COM3/ COM4)

    Audio
    1x 3.5 mm jack for mic-in and speaker-out
    PoE beschikbaarJa
    POE vermogenOptional IEEE 802.3at PoE+ PSE for port 3 ~ port 6100 W total power budget
  • Opslag
    RAID0, 1
    Opslag interfaceSATA HDD
    2x internal SATA ports for 2.5” HDD/ SSD installation, supporting RAID 0/ 1

    M.2 NVMe
    1x M.2 2280 M key NVMe socket (PCIe Gen3 x4) for NVMe SSD installation

    mSATA
    1x full-size mSATA port (mux with mini-PCIe)
  • Mechanische specificaties
    Type behuizingCompact fanless
    Afmetingen240 mm (W) x 225 mm (D) x 111 mm (H)
    MontageWall-mount or optional DIN-Rail
  • Product eigenschappen
    Gewicht4.5 Kg
  • Electrische specificaties
    Input rangex 3-pin pluggable terminal block for 8~35VDC DC input
  • Omgeving specificatie
    Opslag temperatuur-40°C ~ 85°C
    Operating Temperatuur-25°C/+50°C
  • Certificeringen
    standaardenHumidity
    10%~90% , non-condensing

    Vibration
    Operating, MIL-STD-810G, Method 514.6, Category 4

    Shock
    Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II

    EMC
    CE/FCC Class A, according to EN 55032 & EN 55024
  • Software support
    Operating systeemWindows 10 IoT Enterprise & Linux
  • Generieke data
    FabrikantNeousys
    MarktsegmentAutomation, IoT
    Garantie24 Maanden
