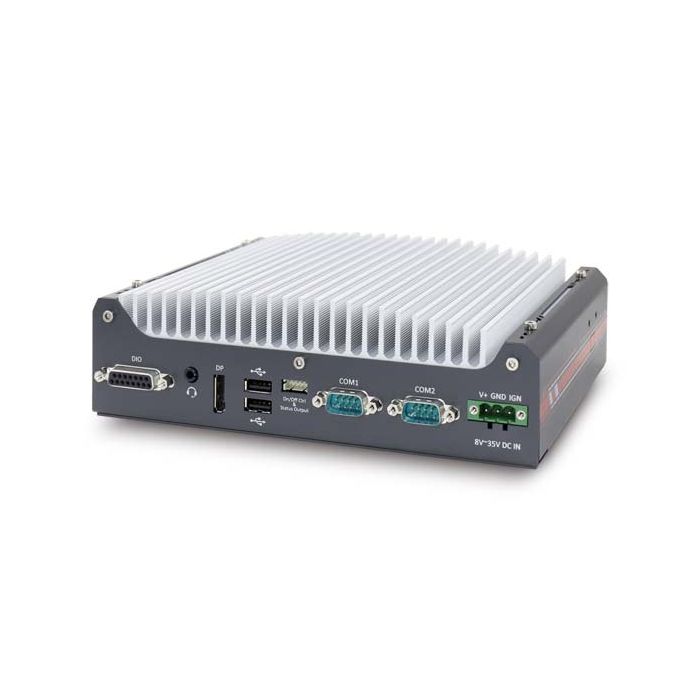

Deze Nuvo-7531-IGN is uitgerust met ignition power control en is daardoor geschikt voor in-vehicle toepassingen.
De Nuvo is af fabriek voorzien van Intel Core i3 9100TE, GPS module en 802.11a/b/g/n WiFi module. De communicatie modules zijn via SMA/RP SMA connectoren aan de buitenzijde van dit rugged embedded systeem bereikbaar voor gebruik in combinatie met de buiten antennes van het voertuig.
Deze basis configuratie wordt naar wens voorzien van de juiste hoeveelheid geheugen, storage en besturing systeem. Doordat dit systeem beschikt over een hot-swappable HDD tray kan de storage eenvoudig worden uitgewisseld, hierdoor is stilstand van in voertuig gemonteerde systemen tot een minimum beperkt.
Specificaties
Processor
Processor
Intel Core
Processor serie
Coffee lake
Socket type
LGA1151
Basisfrequentie
Intel® Core™ i3 9100TE, 2.20 GHz
Aantal cores
4
TDP
65w
chipset
H310
Geheugen
Geheugentype
DDR4
Geheugenslots
1
Max geheugen
32GB
Video
Aansluitingen
DVI
1x DVI-I for DVI/VGA output, supporting 1920 x 1200 resolution
DisplayPort
1x DisplayPort, supporting 4096 x 2304 resolution
Chipset
Integrated Intel® UHD graphics 630
Belangrijkste eigenschappen
Kenmerken
● 212 x 165 x 63 mm low-profile design
● Intel® 9th/ 8th-Gen Core™ 35W/ 65W LGA1151 CPU
● Rugged, -25°C to 60°C fanless operation
● 4x GbE and 4x USB3.1 Gen1 with screw-lock
● 1x hot-swappable HDD tray and 1x M.2 2280 socket for storage
● 4-CH isolated DI and 4-CH isolated DO
● DVI-I + DP dual display outputs
● Optional ignition power control
● GPS module
● 802.11a/b/g/n WiFi module
Uitbreidingsmogelijkheden
Uitbreiding slots
Mini PCI Express
3x full-size mini PCI Express sockets with internal SIM sockets
Poorten & Interfaces
LAN poorten
4
Seriele poorten
2
USB 2.0 poorten
2
USB 3.x poorten
4
Audio interface
1x 3.5 mm jack for mic-in and speaker-out
Externe I/O
Lan
4x Gigabit Ethernet ports by I219
3x I210
Serial
2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)
USB
2x USB 2.0 ports
4x USB 3.1 Gen1 (5 Gbps) ports
Digital IO
4-CH isolated DI and 4-CH isolated DO
Opslag
Opslag interface
SATA
1x hot-swappable 2.5" HDD/ SSD tray
M.2
1x M.2 2280 SATA interface
Mechanische specificaties
Afmetingen
212 mm (W) x 165 mm (D) x 63 mm (H)
Montage
Wall-mount (standard) or DIN-rail mount (optional)
Product eigenschappen
Gewicht
2.5 kg
Electrische specificaties
Input range
1x 3-pin pluggable terminal block for 8V to 35V DC input with optional ignition power control
Omgeving specificatie
Opslag temperatuur
-40°C/+85°C
Operating Temperatuur
-25°C/+60°C
Relatieve luchtvochtigheid
10%~ 90% , non-condensing
Certificeringen
certificaten
VibrationOperating
MIL-STD-810G, Method 514.6, Category 4
ShockOperating
MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Safety
EN62368-1
EMC
CE/FCC Class A, according to EN 55032 & EN 55024
