Nvidia Jetson Orin NX 16GB 4xGLAN 4xUSB 4xM.2 SIM CANBus

SKU:
AITAS-EN303
Fabrikant:
Aplex
  • SKU : AITAS-EN303
  • Processor : NVIDIA Jetson
  • Max geheugen : 16GB
  • Operating Temperatuur : -15°C/+60°C
Nvidia Jetson Orin NX 16GB 4xGLAN 4xUSB 4xM.2 SIM CANBus
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
AITAS-EN303

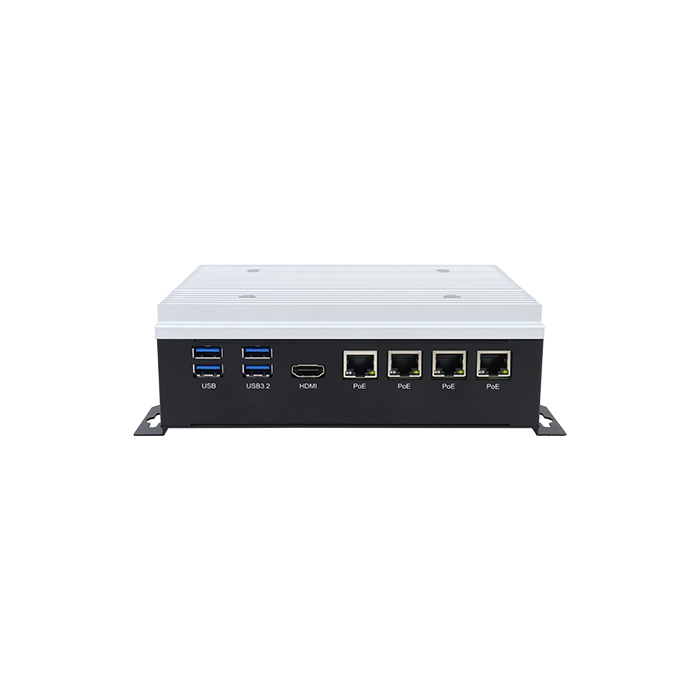

AITAS-EN303, powered by Jetson Orin NX 16G, is a reliable and powerful AI inference device designed for edge applications. It delivers full bandwidth and power capabilities, efficiently scaling video inputs for seamless AI inference.
Specificaties
  • Processor
    ProcessorNVIDIA Jetson
    Processor serieNVIDIA® Jetson Orin™ NX
    Basisfrequentie8-Core ARM Cortex A78AE: max. 2GHz
    Aantal cores8
    TDP40W
    chipsetSoC
  • Geheugen
    GeheugentypeLPDDR5
    Max geheugen16GB
  • Video
    AansluitingenHDMI
    1x HDMI 2.0 Type A
    Chipset1024 Core NVIDIA Ampere, with 32 Tensor Cores
  • Belangrijkste eigenschappen
    KenmerkenFeatures
    • NVIDIA Jetson Orin NX 16GB
    • 1x M.2 2280 M-Key
    • 1x RJ-45 GbE Ports
    • Wide Power Input Range 12~24V DC
    • Operating temperature -15°C ~ +60°C
    • Fanless Design
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsM.2
    1x M.2 2280 M-Key (NVMe)
    1x M.2 3042/3052 B-Key
    1x M.2 2230 E-Key

    SIM Slot
    1x SIM Slot
  • Poorten & Interfaces
    LAN poorten5
    Seriele poorten2
    USB 3.x poorten4
    Externe I/OEthernet Ports
    1x RJ-45 GbE Port
    4x RJ-45 GbE PSE (IEEE 802.3af compliant, Max.60W)

    USB
    4x USB 3.2 Gen2 Type A
    1x Micro USB (for OS Flash)

    Serial / CANBus / DIO
    1x DB-9 for RS-232 (Rx/Tx/CTS/RTS) / 1x CANBus 2.0
    1x DB-15 for RS-232 (Rx/Tx)/422/485 / 8x DIO

    Antenna
    2x Antenna
    PoE beschikbaarJa
    POE vermogenPoE Capability
    4x RJ-45 GbE PSE (IEEE 802.3af compliant, Max.60W)
  • Opslag
    Opslag interfaceM.2
    1x M.2 2280 M-Key
  • Mechanische specificaties
    Afmetingen180mm (W) x 136mm (D) x 56mm (H)
    MontageWallmount, DinRail
  • Electrische specificaties
    Input rangeDC-in 12~24V DC / 2 pins terminal block
    Power consumptionFull Loading : 120W (19V @ 6.32A)
  • Omgeving specificatie
    Opslag temperatuur-40°C/+85°C
    Operating Temperatuur-15°C/+60°C
  • Certificeringen
    certificatenCE / FCC Class A
  • Generieke data
    FabrikantAplex
    MarktsegmentAutomation
    Garantie24 Maanden
