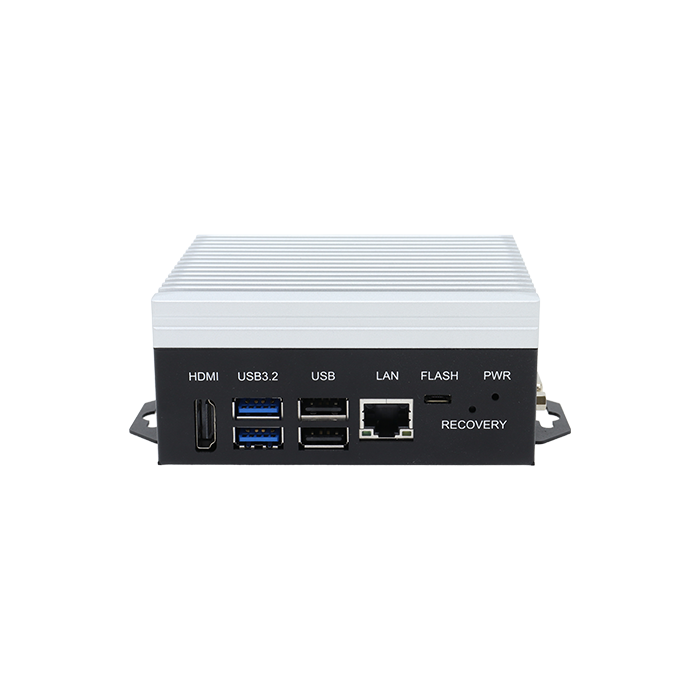

Nvidia Jetson Orin NX 8GB 1xGLAN 4xUSB 4xM.2 SIM CANBus

SKU:
AITAS-EN302
Fabrikant:
Aplex
  • SKU : AITAS-EN302
  • Processor : NVIDIA Jetson
  • Max geheugen : 8GB
  • Operating Temperatuur : -15°C/+55°C
Nvidia Jetson Orin NX 8GB 1xGLAN 4xUSB 4xM.2 SIM CANBus
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
AITAS-EN302
AITAS-EN302, powered by Jetson Orin NX 8G, is a reliable and powerful AI inference device designed for edge applications. It delivers full bandwidth and power capabilities, efficiently scaling video inputs for seamless AI inference.
Specificaties
  • Processor
    ProcessorNVIDIA Jetson
    Processor serieNVIDIA® Jetson Orin™ NX
    Basisfrequentie6-Core ARM Cortex A78AE: max. 2GHz
    Aantal cores6
    TDP40W
    chipsetSoC
  • Geheugen
    GeheugentypeLPDDR5
    Max geheugen8GB
  • Video
    AansluitingenHDMI
    1x HDMI 2.0 Type A
    Chipset1024 Core NVIDIA Ampere, with 32 Tensor Cores
  • Belangrijkste eigenschappen
    KenmerkenFeatures
    • NVIDIA Jetson Orin NX 8GB
    • 1x M.2 3052 B-Key for M.2 2242 B+M Key SSD
    • 1x RJ-45 GbE Ports
    • Wide Power Input Range 12~24V DC
    • Operating temperature -15°C ~ +55°C
    • Fanless Design
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsM.2
    1 x M.2 3042/3052 B Key (4G/5G/M.2 2242 B+M-Key Storage)
    1 x M.2 2230 E-Key (Wi-Fi/BT/storage)

    SIM Slot
    1x SIM Slot
  • Poorten & Interfaces
    LAN poorten1
    Seriele poorten2
    USB 2.0 poorten2
    USB 3.x poorten2
    Externe I/OEthernet Ports
    1x RJ-45 GbE Port

    USB
    2x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)
    2x USB 2.0 (Type-A)
    1 x Micro USB (for OS Flash)

    Serial / CANBus / DIO
    1x DB-9 for RS-232 (Rx/Tx/CTS/RTS) / 1x CANBus 2.0
    1x DB-15 for RS-232 (Rx/Tx)/422/485 / 8x DIO

    Antenna
    2x Antenna
    PoE beschikbaarNee
  • Opslag
    Opslag interfaceM.2
    1x x M.2 3052 B-Key for M.2 2242 B+M-Key SSD (default storage)
    1x M.2 2230 E-Key (optional)
  • Mechanische specificaties
    Afmetingen105mm (W) x 90mm (D) x 49mm (H)
    MontageWallmount, DinRail
  • Electrische specificaties
    Input rangeDC-in 12~24V DC / 2 pins terminal block
    Power consumptionFull Loading: 60W
  • Omgeving specificatie
    Opslag temperatuur-40°C/+85°C
    Operating Temperatuur-15°C/+55°C
  • Certificeringen
    certificatenCE / FCC Class A
  • Generieke data
    FabrikantAplex
    MarktsegmentAutomation
    Garantie24 Maanden
