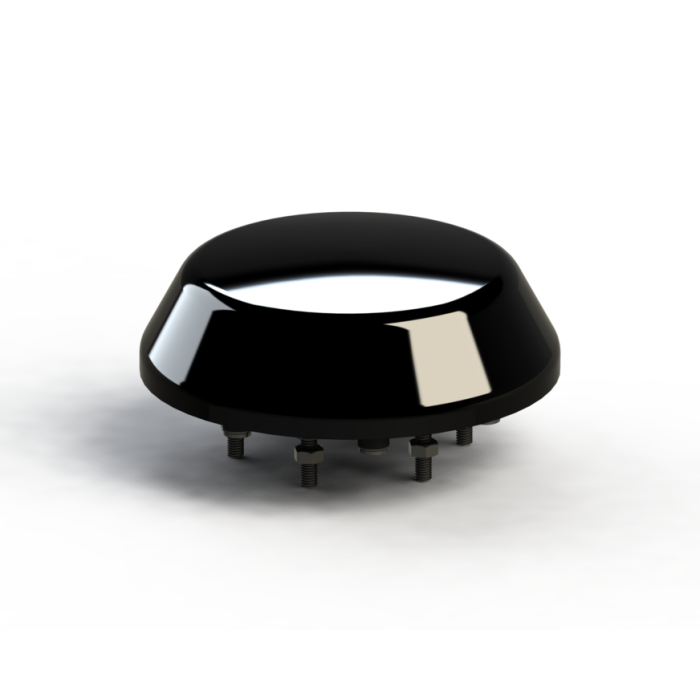

OmPlecs-TOP 200 AMR MF-05-5-MIMO 4x4 LG
-
Apparaat :
Antenne
-
Operating Temperatuur :
-60°C/+85°C
OmPlecs-TOP 200 AMR MF-05-5-MIMO 4x4 LG
Neem contact met ons op voor de levertijd
Specificaties
-
Belangrijkste eigenschappen
| Kenmerken | Multiband-Train Antenna with certification / approval according to train standard EN 50155 for mounting on trains and vehicles |
|---|
-
Poorten & Interfaces
| Apparaat | Antenne |
|---|
| mobiel netwerk | 2G, 3G, 5G, LTE, GSM-R |
|---|
| Externe I/O | RF-Port: a/c
Spectrum: GSM-R, GSM 1800 UMTS, LTE, 5G
RF-Connection: N(f)
RF-Port: b/d
Spectrum: GSM-R, GSM 1800 UMTS / LTE / 5G
RF-Connection: N(f)
RF-Port: e
Spectrum: GPS / GLONASS / Galileo / BeiDoua
RF-Connection: 0.3 coaxial cable FRNC/LSZH, ECE R 118 with N(m) angle) |
|---|
-
Mechanische specificaties
| Type behuizing | Plastic case UV-resistance,
dustproof IP6X & waterproof IPX6/IPX9K |
|---|
| Afmetingen | 200mm (W) x 60mm (H, dome only) |
|---|
-
Product eigenschappen
-
Electrische specificaties
| Input range | 3.3V~5V DC at inner conductor |
|---|
| Power consumption | 8mA typ. at 3.3V<br>15mA typ. at 5V |
|---|
-
Omgeving specificatie
| Operating Temperatuur | -60°C/+85°C |
|---|
-
Certificeringen
| certificaten | Conformity
EN 50155, EN 50122, EN 50124, IEC 60068, IEC 61373
ISO 20653, ISO 9227, EN 45545-2
2014/30/EU; 2006/28/EC; 2002/95/EC |
|---|
-
Generieke data
|
