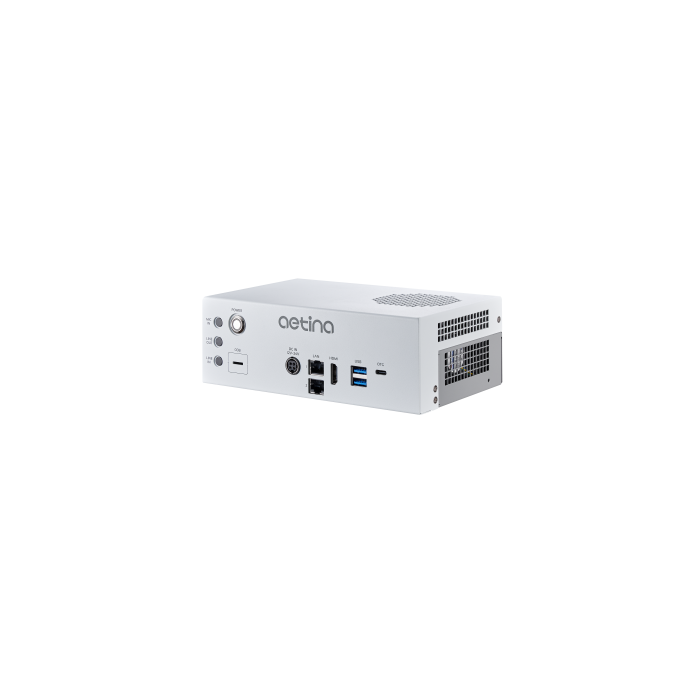

ORIN NANO 4GB, HDMI, 2 x GbE, 2 x USB, 128GB SSD, -25°C ~ 70

SKU:
AIE-KO22-1-A1
Fabrikant:
aetina
  • Processor : NVIDIA Jetson
  • Max geheugen : 4GB
  • Operating Temperatuur : -25°C/+70°C
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
● Giant Leap in AI performance enables AI inference in the smallest Jetson form factor
The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano module offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor.

● Comprehensive M.2 for internal and external expansion
AIE-KO22/32 and AIE-KN32/42 are edge systems with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. To avoid insufficient data storage for edge computing, AIE-KO22/32 and AIE-KN32/42 support external M.2 2242 NVMe with fast data transmission.

● Wide input power and operating temperature for various embedded applications
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIE-KO22/32 and AIE-KN32/42 support operating temperature ranging from -25°C to 70°C and wide input power from 12 to 24VDC.

* AIE-KO22/32 and AIE-KN32/42 are preliminary products, so the specifications are subject to change without prior notice.
Specificaties
  • Processor
    ProcessorNVIDIA Jetson
    Aantal cores6
  • Geheugen
    GeheugentypeLPDDR5
    Max geheugen4GB
  • Video
    Chipset512 Core NVIDIA Ampere, with 16 Tensor Cores
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsM.2
    1 x M.2 B-Key 3042/3052 (LTE/4G/5G, USB 3.2/USB 2.0)
    1 x M.2 E-Key 2230 (WiFi/BT, PCIe/USB 2.0)
  • Poorten & Interfaces
    LAN poorten2
    Seriele poorten2
    USB 3.x poorten3
    Externe I/OLan
    2 x RJ-45 GbE Ports

    I/O Interfaces
    5 x GPIO
    1 x UART
    1 x I2C
    1 x RS-232
    1 x RS-422/485
    1 x CAN (isolation)
    1 x OOB (optional)
    1 x microSIM Card Slot

    USB
    2 x USB 3.2 Gen2 Type A
    1 x OTG Type-C
  • Opslag
    Opslag interfaceM.2 1 x M.2 M-Key 2242 (NVMe 128GB built-in)
  • Mechanische specificaties
    Afmetingen196.5 x 124 x 68 mm (7.73 x 4.88 x 2.67 in)
    MontageWall Mount / Din Rail (optional)
  • Product eigenschappen
    Gewicht1.102 kg (2 lb)
  • Electrische specificaties
    Input rangeDC-in 12-24VDC / 4-Pin DC Jack Power Connector
    Power consumptionIdle: 9.5 W Full Loading: 30.05* W
  • Omgeving specificatie
    Opslag temperatuur-40°C /+85°C
    Operating Temperatuur-25°C/+70°C
    Relatieve luchtvochtigheid95% @ 40°C (104°F) (non-condensing)
  • Certificeringen
    standaardenVibration
    1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    Shock
    10 G, IEC 60068-2-27, half sine, 11 ms duration
    certificatenCE / FCC Class A / UKCA
  • Software support
    Operating systeemUbuntu 20.04
  • Generieke data
    Fabrikantaetina
    MarktsegmentAutomation, IoT, In-vehicle
