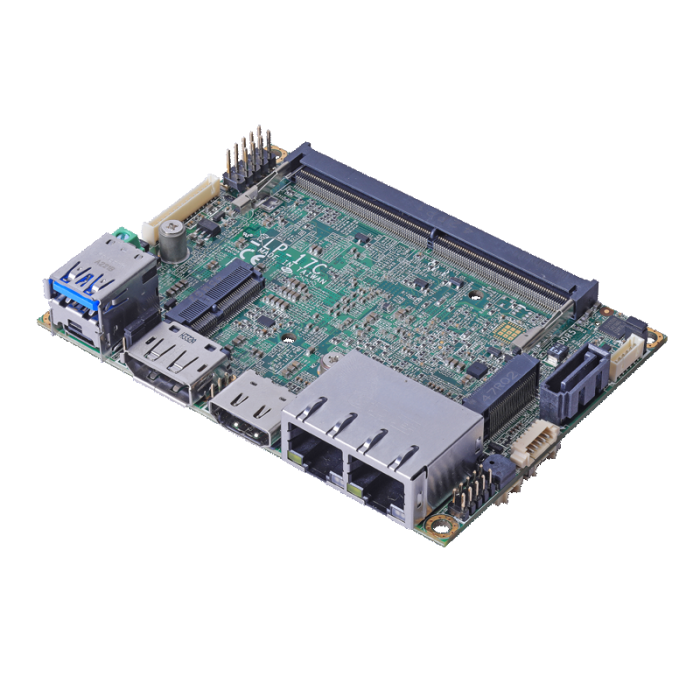

PicoITX Intel x7433RE Heatspreader 2xGLAN 2xM.2 2xUSB

SKU:

LP-17CX4

Fabrikant:

Commell

Processor : Intel Atom
Max geheugen : 32GB
Type SBC : Pico ITX
Operating Temperatuur : -40°C/+85°C

PicoITX Intel x7433RE Heatspreader 2xGLAN 2xM.2 2xUSB

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Introduction

LP-17C
LP-17C is a Pico-ITX Motherboard which supports Atom™ Processor X Series, integrated Intel® Graphics, DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3, Type C with AHCI function for a system.

New feature for Amston Lake
Amston Lake Processor X Series have Intel UHD Graphics up to 32 EUs. Integrated GPU for AI inference and media processing.

All in One multimedia solution
The board provides high performance onboard graphics, and supports Type C (Alt mode), HDMI, Display Port ++, and High Definition Audio, to meet the very requirement of the multimedia application.

Meteor Lake support Windows10 & 11 64bit and Linux
Intel recommends using Windows 10 & 11 64bit. It may lose some drivers if you use other Windows version.

Specificaties

Processor

Processor Intel Atom
Processor serie Amston Lake
Basisfrequentie up to 3.4GHz
Aantal cores 4
TDP 9W
chipset SoC
Geheugen

Geheugentype DDR5
Geheugenslots 1
Max geheugen 32GB

Video

Aansluitingen	DisplayPort 1x DisplayPort++ 1x Type-C (DP Alt Mode) HDMI 1x HDMI eDP 1x eDP internal
Chipset	Intel® UHD Graphics

Belangrijkste eigenschappen

Kenmerken

Features
• Support Intel® Atom™ Processor X Series(Amston Lake)
• 1x DDR5 SO-DIMM up to 4800 MHz 32GB
• Integrated DisplayPort++, HDMI, eDP, Type-C (DP alt.) for display support
• 2x Intel® 2.5G Gigabit LAN
• 1x M.2 2280 Key M support Gen3 PCIe x2 for NVMe
• 1x M.2 2230 Key E
• 1x SATA, 2 x USB2.0, 1 x USB3.2 Gen2, 1 x COM,1 x GPIO
• DC input 12V±5%
• Industrial Extended Temp

Uitbreidingsmogelijkheden

Uitbreiding slots M.2
1x M.2 (Key E 2230) for Wi-Fi and Bluetooth

Poorten & Interfaces

GPIO Interface	1x GPIO
serial ATA interface	1x SATA
Watchdog timer	Generates a system reset with internal timer for 1 min/s ~ 255 min/s
LAN poorten	2
Seriele poorten	1
USB 2.0 poorten	2
USB 3.x poorten	1
Audio interface	Realtek ALC888S HD Audio
Externe I/O	Ethernet Ports 2x Intel® I226 Gigabit LAN (up to 2.5GbE) USB 1x USB3.2 Gen2
Interne I/O	USB 2x USB2.0 Serial 1x RS-232/422/485 SMBus 1x SMBus LCD Connector 1x LCD inverter connector GPIO 1x GPIO by header eDP 1x eDP header

Opslag

Opslag interface SATA
1x SATA

M.2
1x M.2 (Key M 2280) support Gen3 PCIe x2 for NVMe
Mechanische specificaties

Type SBC Pico ITX
Afmetingen 100 mm x 72mm (L x W)
Electrische specificaties

Input range DC input 12V±5%
Omgeving specificatie

Opslag temperatuur -40°C/+85°C
Operating Temperatuur -40°C/+85°C
Relatieve luchtvochtigheid 10%~90%, non-condensing
Generieke data

Fabrikant Commell
Marktsegment Automation
Garantie 18 Maanden

Downloads

Handleiding	LP-17C_Manual_V101.pdf
datasheet	LP-17C_Datasheet.pdf
