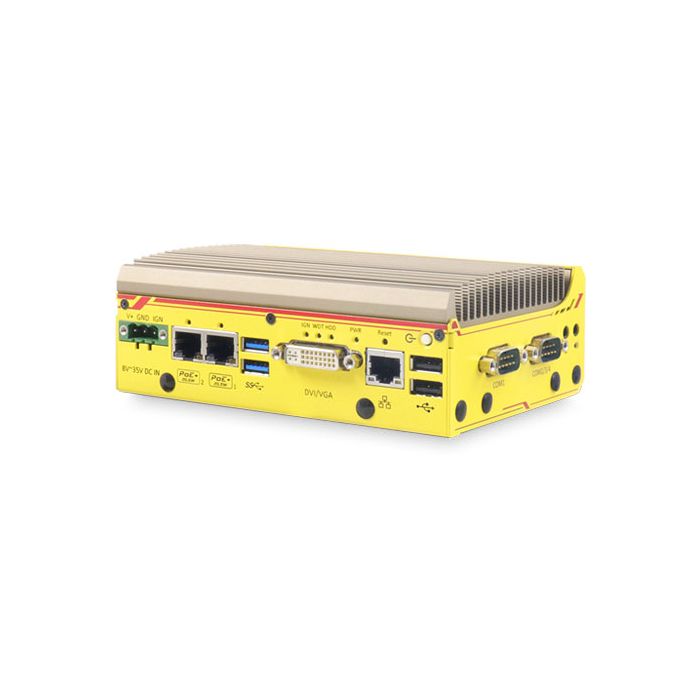

POC-351VTC Ultra Compact Fanless In Vehicle Controller

SKU:

SCA-990944-EC

Fabrikant:

Neousys

SKU : SCA-990944-EC
Processor : Intel Atom
Max geheugen : 8GB
Operating Temperatuur : -25°C/+70°C

Door component schaarste geen audio op dit device

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Configureer dit systeem

Details

Specificaties

Downloads

Introduction

POC-351VTC is an ultra-compact, fanless embedded in-vehicle controller powered by Intel® Atom™ Apollo Lake E3950 quad-core processor. It combines finesse performance, extraordinary reliability and affordable cost for versatile in-vehicle applications.

POC-351VTC offers two PoE+ ports to power devices such as IP cameras, and one additional GbE port for data communication. It also features isolated CAN 2.0 port and RS-232/ 422/ 485 ports for communicating with vehicle CAN bus system, individual ECUs or other automotive devices. Wide-range DC input and ignition power control make POC-351VTC fit for most vehicle categories.

Wireless and internet access is essential for modern day in-vehicle applications. POC-351VTC has a total of four M.2/ mPCIe sockets and six antenna holes to accommodate a variety of 4G, 3G, WIFI and GPS modules to satisfy in-vehicle and V2V(vehicle to vehicle) communications. An aluminum heat-spreader is thoughtfully designed to dissipate heat generated by modules to maintain superior operating stability, for the system and communication modules.

Specificaties

Processor

Processor Intel Atom
Processor serie Apollo Lake
Socket type BGA1296
Basisfrequentie 1.60 GHz
Aantal cores 4
TDP 12W
Geheugen

Geheugentype DDR3
Geheugenslots 2
Max geheugen 8GB
Video

Aansluitingen 1x VGA and DVI dual display outputs via DVI-I connector
Chipset Integrated Intel® HD Graphics 505

Belangrijkste eigenschappen

Kenmerken

● Intel® Apollo Lake Atom™ E3950 quad-core processor
● Rugged, -25 °C to 70 °C fanless operation
● Two IEEE 802.3at PoE+ ports and one GbE port
● One isolated CAN port for in-vehicle communication
● One M.2 socket and three mini-PCIe sockets
● Aluminum heat-spreader for M.2/ mPCIe modules
● 4-CH isolated DI and 4-CH isolated DO
● 8~35V DC input with built-in ignition power control

Poorten & Interfaces

LAN poorten	3
Seriele poorten	4
USB 2.0 poorten	2
USB 3.x poorten	2
Externe I/O	LAN 3x Gigabit Ethernet ports by Intel® I210 GbE controller Serial 1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/COM3/COM4) or 1x RS-422/485 port (COM2) USB 2x USB 3.1 Gen1 ports 2x USB 2.0 ports CAN Bus 1x isolated CAN 2.0 port Isolated DIO 1x 4x isolated DI and 4x isolated DO

Opslag

Opslag interface	M.2 1x M.2 B key socket for 3G/4G option with USIM support mSATA 1x half-size mSATA port 1x full-size mSATA port

Mechanische specificaties

Type behuizing Din Rail
Afmetingen 153 mm (W) x 108 mm (D) x 56 mm (H)
Product eigenschappen

Gewicht 1.0 kg
Electrische specificaties

Input range 8~35 VDC DC input
Omgeving specificatie

Opslag temperatuur -40°C ~ 85°C
Operating Temperatuur -25°C/+70°C
Relatieve luchtvochtigheid 10%~90% , non-condensing

Certificeringen

certificaten	Vibration Operating 5 Grms, 5-500 Hz, 3 Axes (w/ mSATA, according to IEC60068-2-64) Shock Operating 50 Grms, Half-sine 11 ms Duration (w/ mSATA, according to IEC60068-2-27) EMC E-Mark for in-vehicle applications> CE/FCC Class A, according to EN 55032 & EN 55024

Generieke data

Fabrikant Neousys
Marktsegment Automation, Digital signage, IoT, In-vehicle
Garantie 24 Maanden

Downloads

Handleiding	POC-351VTC_User_Manual.pdf
datasheet	neousys-poc-351vtc-in-vehicle-computer-datasheet.pdf
