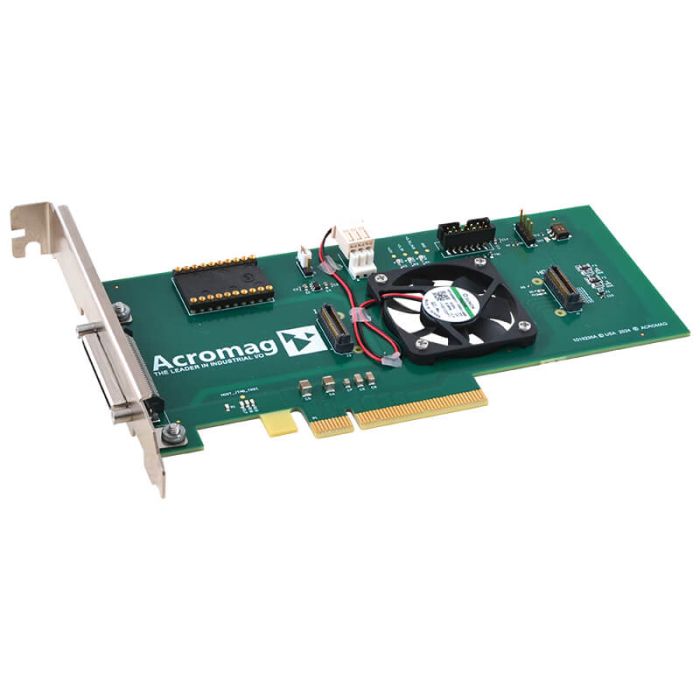

main product photo

QMC Carrier card, 1xQMC slot, half-length, VITA 93 QMC

SKU:

QPCE7211-1111

Fabrikant:

Acromag

Bus Type : PCIe
Type Opsteekkaart : PCIe

QMC Carrier card, 1xQMC slot, half-length, VITA 93 QMC

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken	Features • Half-length PCIe expansion card ideal for use with compact, rugged servers and workstations • One QMC mezzanine site • PCI Express Gen 3 x4 interface • Isolated QMC support • JTAG programming header • Cooling fan • Individually fused power • Resettable Positive Temperature Coefficient (PTC) fuse on each supply line

Poorten & Interfaces

Externe I/O	CHAMP connector J5 (Carrier Field I/O): 68-pin 0.8mm CHAMP
Interne I/O	Internal connectors J1 (IO interface): QMC 80-pin male receptacle J2 (Host interface): QMC 80-pin male receptacle P1 (PCIe Bus): Eight lanes (only four used) P3 (I2C): 4-pin header P4 (JTAG): 14-pin header

Mechanische specificaties

Bus Type PCIe
Afmetingen 167.64mm (L) x 76.20mm (W) x 20.32mm (H)
Type Opsteekkaart PCIe
Omgeving specificatie

Opslag temperatuur -55°C/+125°C
Operating Temperatuur -10°c/+70°c
Relatieve luchtvochtigheid 5% to 95% non-condensing
Software support

Operating systeem Windows, Linux, VxWorks
Generieke data

Fabrikant Acromag
Garantie 24 Maanden

Downloads

datasheet	QPCe7210-PCI-Express-Carrier-Cards-for-QMC-Modules.pdf

Prijs op aanvraag
