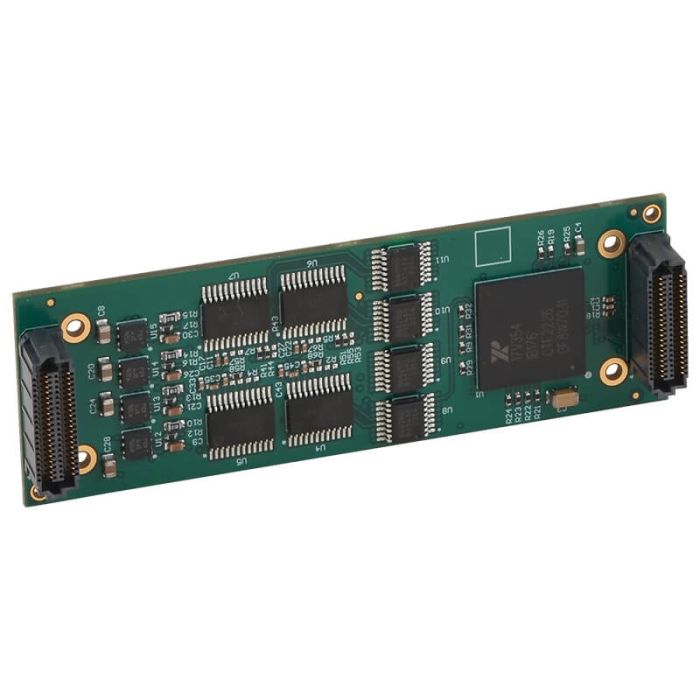

QMC Module 4x232/422/485 Async Serial VITA 93 QMC air-cool

SKU:
QMC521-1111
Fabrikant:
Acromag
  • Aantal poorten : 4
  • Type I/O : Serieel
  • Bus Type : PCIe
  • Type Opsteekkaart : QMC
QMC Module 4x232/422/485 Async Serial VITA 93 QMC air-cool
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Belangrijkste eigenschappen
    KenmerkenFeatures
    • Four (quad) isolated asynchronous serial communication ports
    • Each port isolated (250V) from digital circuitry and (100V) from the other ports
    • Each port programmable for EIA/TIA-232-F, EIATIA-422B, or EIA-485
    • Full/half-duplex EIA-485 line support
    • 16550-compatible register set
    • 256-byte transmit and receive FIFO buffers with programmable trigger levels
    • Programmable baud rate (up to 20Mbps)
    • Individually controlled transmit, receive, line status, and data set interrupts
    • General-purpose 16-bit timer/counter
    • Extended temperature range and support for conduction-cooled systems
  • Poorten & Interfaces
    Externe I/OSerial
    4x independent, isolated serial ports (RS-232/422/485) with separate port commons
    Interne I/OVITA 93 connector
    2x high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces
    Aantal poorten4
    Type I/OSerieel
  • Mechanische specificaties
    Bus TypePCIe
    Afmetingen78.25mm (L) x 26.00mm (W) x 11.00mm (H)
    Type OpsteekkaartQMC
  • Omgeving specificatie
    Opslag temperatuur-55°C/+125°C
    Operating Temperatuur0°C/+70°C
    Relatieve luchtvochtigheid5% to 95% non-condensing
  • Generieke data
    FabrikantAcromag
    Garantie24 Maanden
