DisplayPort
4 x DP++
DP++: resolution up to 4096x2160 @ 60Hz
Chipset
AMD® RadeonTM VEGA7 Graphics
Uitbreidingsmogelijkheden
Uitbreiding slots
PCI Express
1 x PCIe x16 (x8 Gen3) (Max. 75W)
M.2
1 x M.2 2280 M Key (SATA 3.0/ PCIe x4) (support 2242 by BOM opt.)
Poorten & Interfaces
LAN poorten
2
Seriele poorten
2
USB 2.0 poorten
2
USB 3.x poorten
2
Audio interface
1 x Mic-in 1 x Line-in 1 x Line-out
Externe I/O
Lan
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)
USB
2 x USB 3.1 Gen1
2 x USB 2.0
Interne I/O
Serial
4 x RS-232 (2.0mm pitch) (TX/RX signal only)
USB
3 x USB 2.0 (2.54mm pitch)
1 x USB 2.0 Vertical Type A (default)
4 x USB 2.0 (2.54mm pitch) (opt.)
Opslag
Opslag interface
Sata
2 x SATA 3.0 (up to 6GB/s) (with 7-pin VCC support)
2 x SATA Power
M.2
1 x M.2 2280 M Key (SATA 3.0/ PCIe x4) (support 2242 by BOM opt.)
Mechanische specificaties

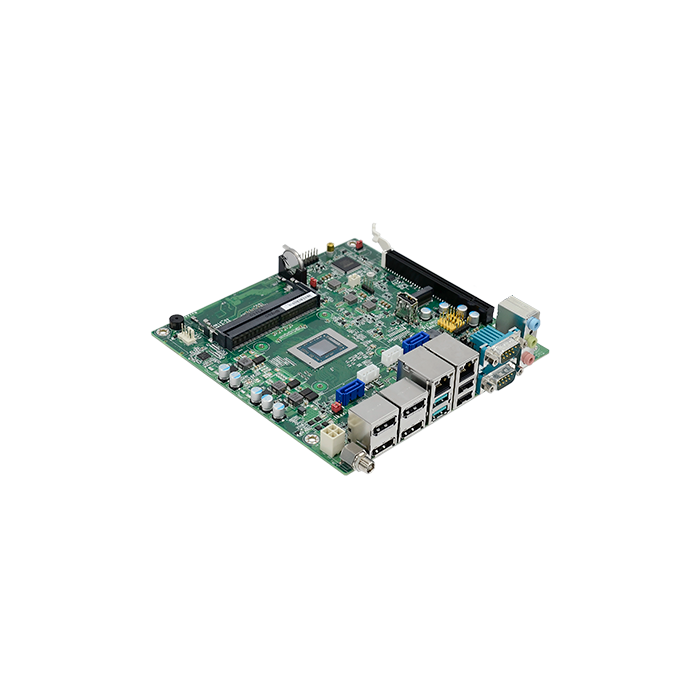

Type SBC
Mini ITX
Afmetingen
170mm (6.7") x 170mm (6.7")
Electrische specificaties
Input range
Single 12V +/-5% DC (Check data sheet for connector type)
