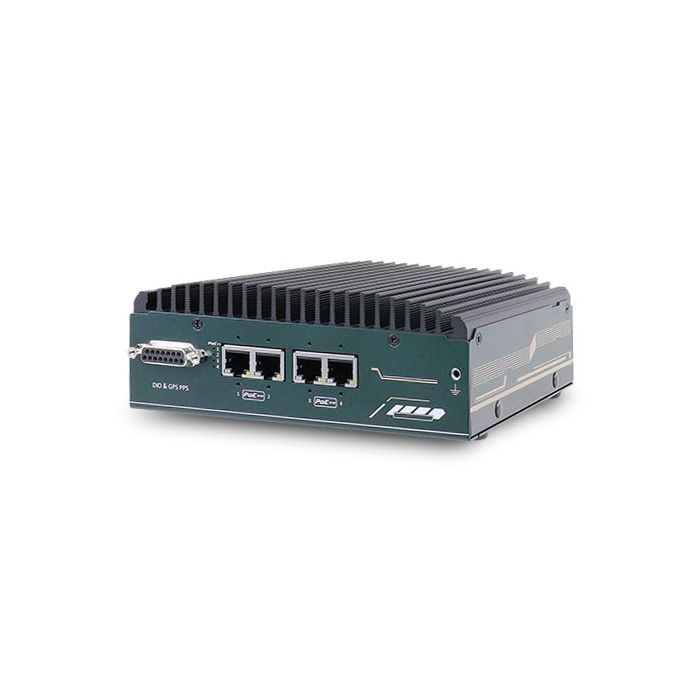

Rugged NVIDIA Jetson NX8G Orin Edge AI Computer with 4x PoE
SKU:
NRU-52S+-JON8
Fabrikant:
Neousys
SKU :NRU-52S+-JON8
Processor :NVIDIA Jetson
Max geheugen :8GB
Operating Temperatuur :-25°C/+70°C
Rugged NVIDIA Jetson NX8G Orin Edge AI Computer with 4x PoE
Please note:
The system is equipped with an M.2 2242 SSD by the manufacturer.
You can choose capacities of 128GB / 256GB / 512GB / 1024GB.
This can be configured for you on request.
Op voorraad, voor 14:00 uur besteld, volgende dag geleverd.
DisplayPort
1x DisplayPort, up to 3840x2160 at 60Hz
Chipset
NVIDIA® Ampere GPU (1.024 Cores, 32 Tensor-Cores)
Belangrijkste eigenschappen
Kenmerken
• Powered by NVIDIA® Jetson Orin™ NX or Xavier™ NX SOM bundled with JetPack 5.1.1
• Rugged -25°C/+70°C operating temperature range
• 4x IEEE 802.3bt PoE++ GbE ports, screw-lock
• 2x mini-PCIe sockets for WIFI/GNSS/NVMe/CAN modules
• 1x 3042/3052 M.2 B-Key slot for 4G/5G modules
• 1x hardware configurable RS232/RS422/RS485 port
• 8V~35V DC input, built-in ignition power control
• MIL-STD-810H and EN 50155 certified
Uitbreidingsmogelijkheden
Uitbreiding slots
Mini PCIe
1x mini PCI Express slot (PCIe / USB 2.0) for GNSS, V2X, or CAN
M.2
1x 3042/3052 M.2 B-Key slot (USB 3.1 Gen 1 / USB 2.0) for 4G/5G modules, dual SIM support (1x front-accessible, 1x internal)
USB Ports
2x USB 3.1 Gen1 Ports (total 5 Gbps shared with M.2 B key)
Serial Port
1x hardware configurable RS-232/422/485 Port
CAN
1x isolated CAN 2.0 port
Isolated DIO
1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO
Ground Terminal
1x M4 ground terminal for chassis ESD shielding
PoE beschikbaar
Ja
POE vermogen
PoE Capability
In compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE:
Max. output on single PoE++ Port: 90W
Compatible with 802.3at (PoE+) and 802.3af (PoE) PD
Opslag
Opslag Capaciteit
128 GB
Opslag interface
Please note:
The system is equipped with an M.2 2242 SSD by the manufacturer.
You can choose capacities of 128GB / 256GB / 512GB / 1024GB.
This can be configured for you on request.
M.2
1x mini PCI Express slot (PCIe / USB 2.0) for M.2 2242 MKey for SSD
Mechanische specificaties
Type behuizing
Compact fanless
Afmetingen
173mm (W) x 144mm (D) x 60mm (H)
Montage
Wall-mount bracket (optional)
Product eigenschappen
Gewicht
1.4 kg
Electrische specificaties
Input range
8V~35V DC input, 3-Pin
Ignition control
Ignition power control (V+/ GND/ IGN)
Omgeving specificatie
Opslag temperatuur
-40°C/+85°C
Operating Temperatuur
-25°C/+70°C
Relatieve luchtvochtigheid
10%~90% , non-condensing
Certificeringen
certificaten
Vibration
Operating, MIL-STD-810H, Method 516.8, Procedure I
