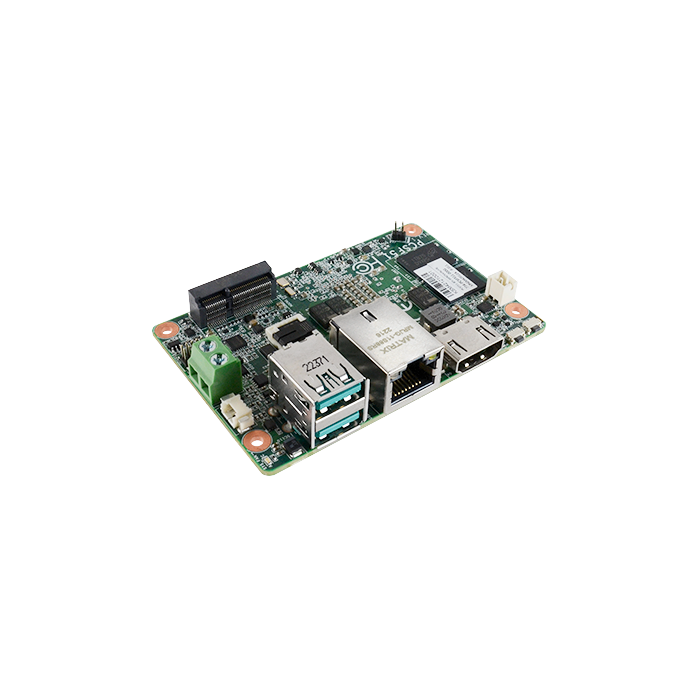

SBC PCSF51-BN-46R232 1.8" Ryzen R2312 12V 4GB DDR4 64GB eMMC

SKU:

770-PCSF511-200G

Fabrikant:

DFI

Neem contact met ons op voor de levertijd

Details

Specificaties

Downloads

Specificaties

Processor

Processor AMD
Processor serie Ryzen Embedded
Basisfrequentie R2312: max. 3.5GHz
Aantal cores 2
TDP 15W
chipset SoC
Geheugen

Geheugentype Soldered DDR4
Max geheugen 4GB
Video

Aansluitingen HDMI
1x HDMI 1.4: resolution up to 4096x2160 @ 24Hz
Chipset AMD Vega GPU with up to 8 computing units

Belangrijkste eigenschappen

Kenmerken	Features • AMD Ryzen™ Embedded R2000 Series - Picasso • Small form factor 1.8" SBC for space-limited applications • Single Channel DDR4 Memory Down up to 4GB/8GB • HDMI 1.4 resolution supports up to 4096 x 2160 @ 24Hz • Storage up to 128GB: eMMC 32GB/ 64GB/ 128GB • 10-Year CPU Life Cycle Support Until Q2' 32 (Based on AMD Roadmap)

Poorten & Interfaces

LAN poorten	1
USB 3.x poorten	2
Externe I/O	Ethernet 1x Intel i210AT PCIe (10/100/1000Mbps) USB 2x Type A USB 3.1 Gen 2
Interne I/O	DIO 1x 8-bit DIO

Opslag

Opslag interface eMMC 5.0
1x 64GB eMMC
Mechanische specificaties

Type SBC 1.8"
Afmetingen 84mm (W) x 55mm (H) x 1.6mm (D)
Electrische specificaties

Input range 2-pin Terminal Block
Single 12V +/-5% DC

Omgeving specificatie

Opslag temperatuur	-40°C/+85°C
Operating Temperatuur	0°C/+60°C
Relatieve luchtvochtigheid	Operating/Storage: 5 to 90% RH

Downloads

Handleiding	PCSF51_UM_20230315.pdf
datasheet	DFI-PCSF51-1.8-SBC-DataSheet.pdf

Prijs op aanvraag
