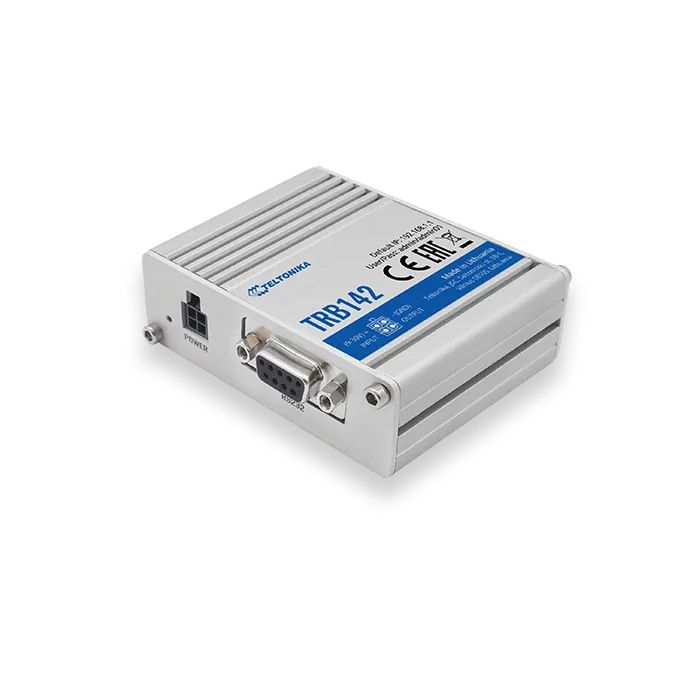

main product photo

Teltonika Industrial LTE Cat1 IoT Gateway, TRB142, 1x RS232

SKU:

TRB142003000

Fabrikant:

Teltonika

Marktsegment : IoT
Apparaat : Gateways
mobiel netwerk : 2G, 3G, 4G (lte) cat1

Op voorraad, voor 14:00 uur besteld, volgende dag geleverd.

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Processor

Processor ARM
Processor serie Cortex A
Basisfrequentie 1.2 GHz

Poorten & Interfaces

Apparaat	Gateways
mobiel netwerk	2G, 3G, 4G (lte) cat1
SMS	YES
Seriele poorten	1
Externe I/O	I/O 2 x Configurable Digital Inputs/Outputs on 4 pin power connector Events SMS status USB Virtual network interface via USB Status LEDs 3 x connection type status LEDs 5 x connection strength LEDs 2 x LAN status LEDs 1x Power LED SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V Power 4 pin DC connector with 2 x configurable Digital Inputs/Outputs Antenas 1 x SMA for LTE Reset Restore factory settings button

Opslag

Opslag Capaciteit 512MB flash memory

Mechanische specificaties

Type behuizing	Aluminum housing, IP30
Afmetingen	60 mm x 70 mm x 18 mm (H x W x D)
Montage	Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options

Product eigenschappen

Gewicht 132 g
Electrische specificaties

Input range 9 – 30 VDC
Power consumption < 5 W

Certificeringen

standaarden

EMI

Draft ETSI EN 301 489-1 V2.2.0
Draft ETSI EN 301 489-19 V2.1.0
Draft ETSI EN 301 489-52 V1.1.0

RF

EN 300 511 V12.5.1
ETSI EN 301 908-1 V11.1.1
ETSI EN 301 908-1 V11.1.2
EN 301 908-2 V11.1.2
ETSI EN 301 908-13 V11.1.2

Safety

IEC 62368-1:2014(Second Edition)
EN 62368-1:2014+A11:2017
EN 50385:2017
EN 62232:2017

certificaten

EMI

ESD: EN 61000-4-2:2009

RS: EN 61000-4-3:2006 + A1:2008 + A2:2010

EFT: EN 61000-4-4:2012

Surge protection: EN 61000-4-5:2014

CS: EN 61000-4-6:2014

DIP: EN 61000-4-11:2004

Software support

Operating systeem Teltonika Remote Management System
Generieke data

Fabrikant Teltonika
Ean code 4779027312385
Marktsegment IoT
Garantie 24 Maanden

Downloads

datasheet	Datasheet-TRB142-v1.3.pdf

€ 114,95 € 95,00
